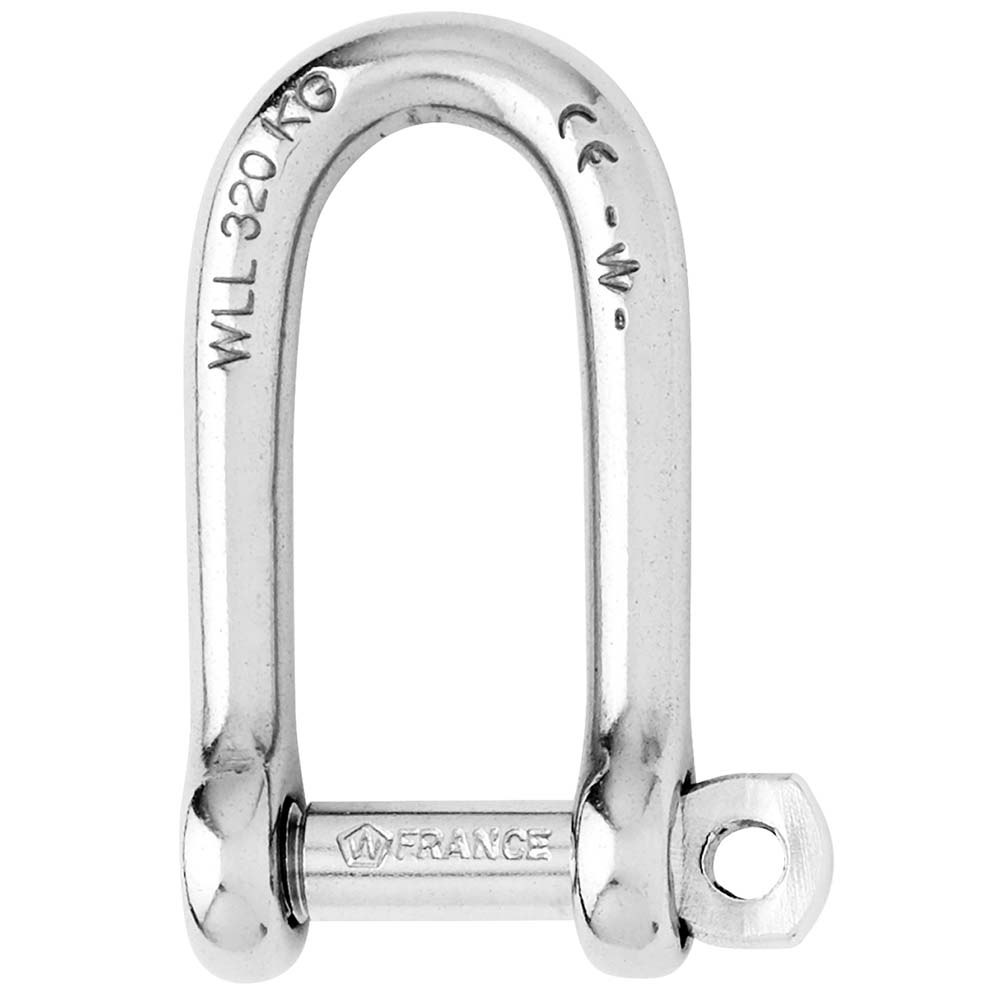

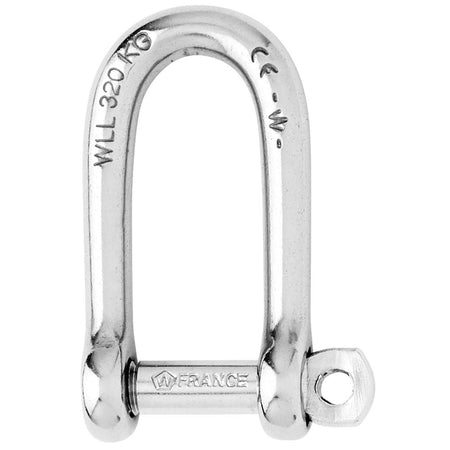

Self-Locking Long D Shackle - Diameter 5mm - 3/16"

Features:


  • Self-locking long shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

  • WLL: only for industrial applications

  • CE Marking and batch number

Applications:


  • Standard applications of shackle requiring more length

  • Attachment applications: blocks, head...

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 880

  • WLL (lb) 440

  • Breaking load (lb) 2200

  • Weight (lb) 0.037

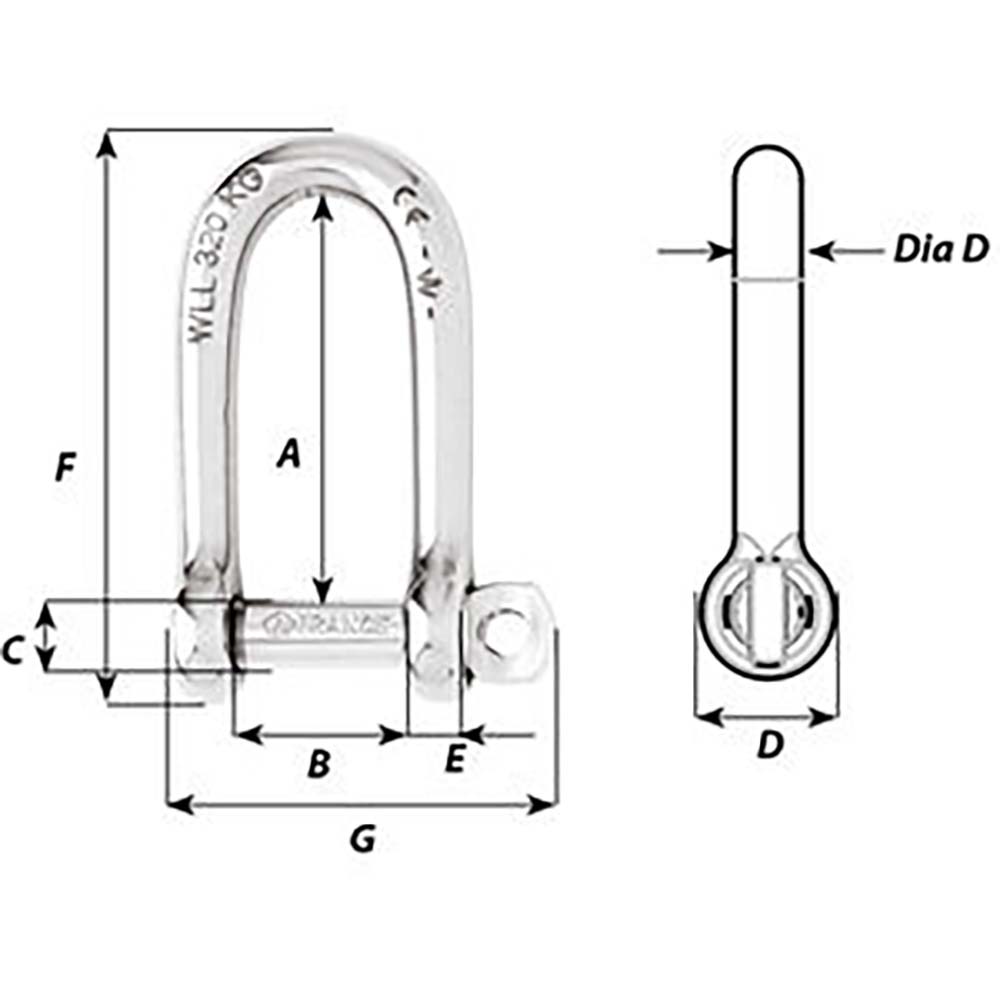

Dimensions (see 2nd image):


  • A (inch) 1-9/64"

  • B (inch) 25/64"

  • C (inch) 13/64"

  • D (inch) 25/64"

  • D diameter (inch) 13/64"

  • E (inch) 5/32"

  • F (inch) 1-39/64"

  • G (inch) 1-1/32"
