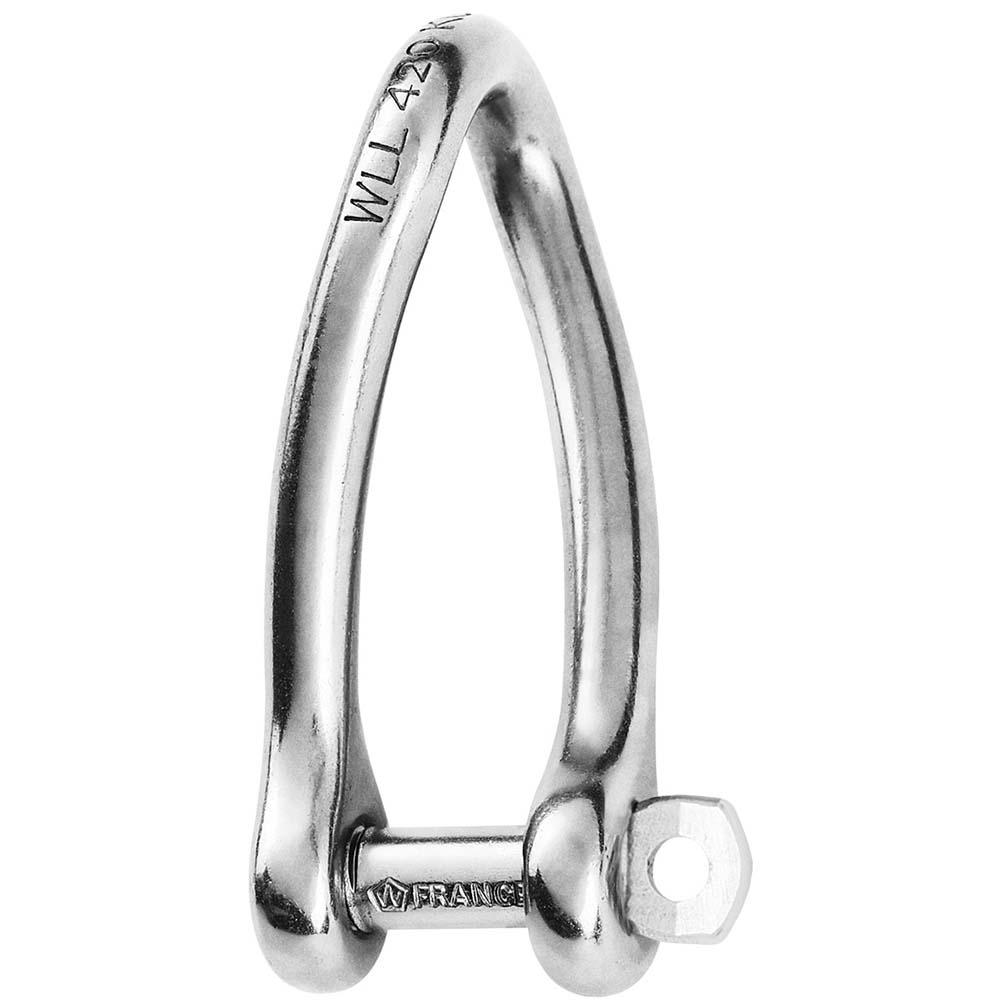

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loose due to vibrations


• Outstanding working and breaking loads


• Single-handed operation for more safety


• Part #1424 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required


• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 2200


• Breaking load (lb) 8150


• Weight (lb) 0.198

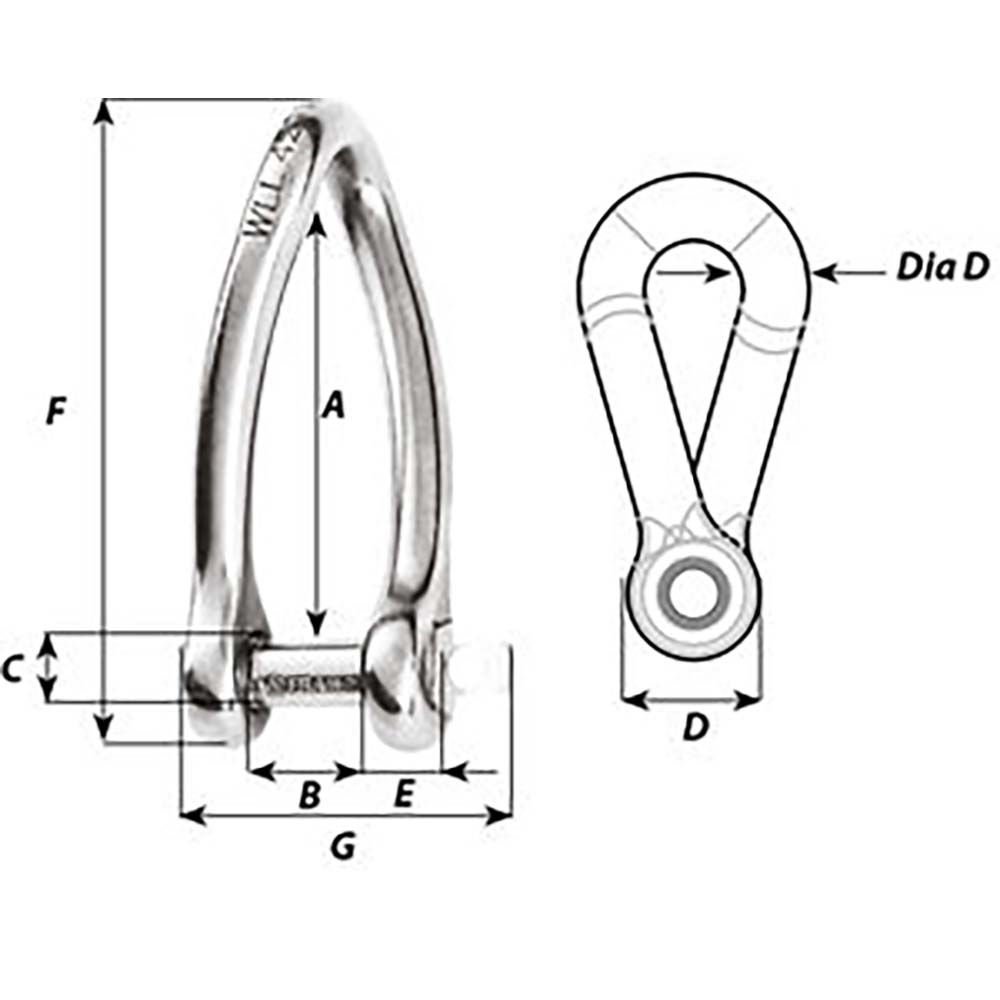

Dimensions (see 2nd image):

• A (inch) 2-21/64"


• B (inch) 5/8"


• C (inch) 23/64"


• D (inch) 45/64"


• D diameter (inch) 5/16"


• E (inch) 5/16"


• F (inch) 3-5/32"


• G (inch) 1-21/32"
