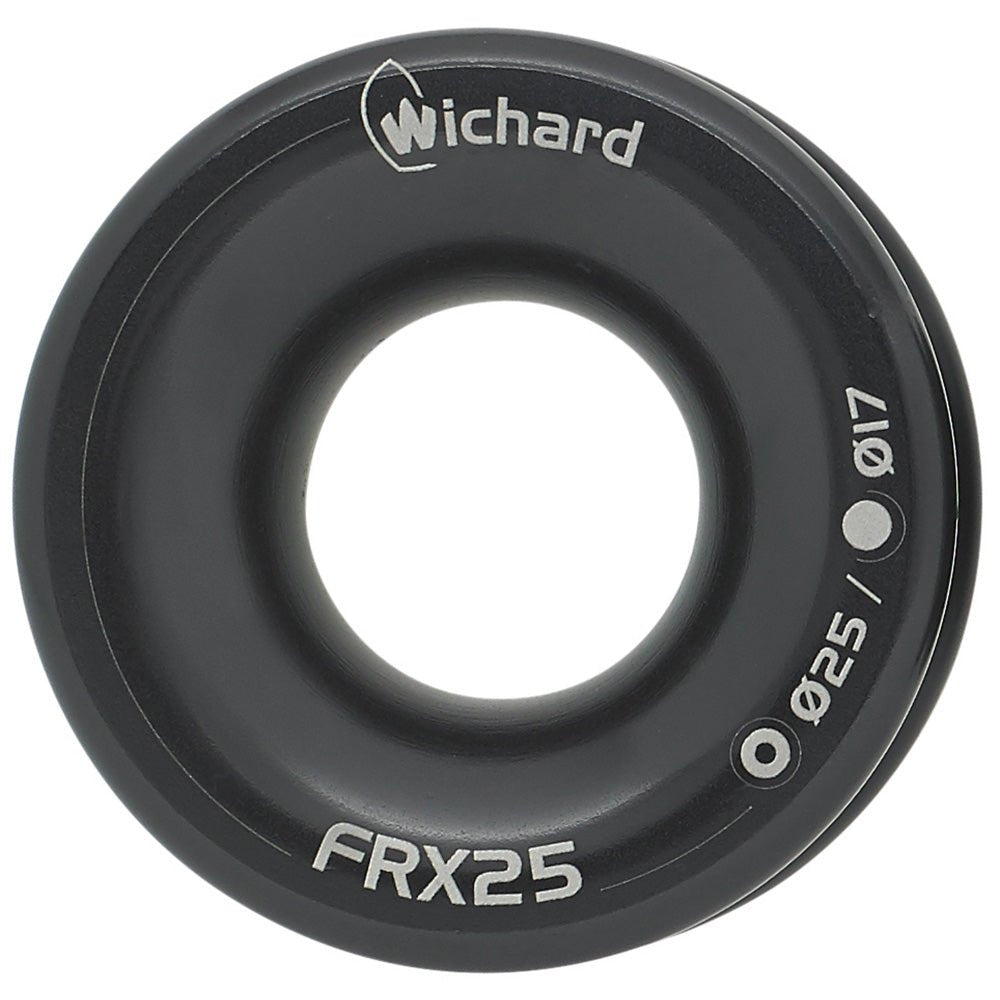

FRX25 Friction Ring - 25mm (63/64")

Features:

• Efficient and light


• FRX Wichard thimbles are efficient, light, and reliable


• Very strong and can be used for heavy loads and semi-static lines


• FRX thimbles are designed to make your lines run smoothly with minimum wear


• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium


• Working load: (lb) 11020 / (kg) 5000


• Weight: (lb) 0.126 / (g) 57

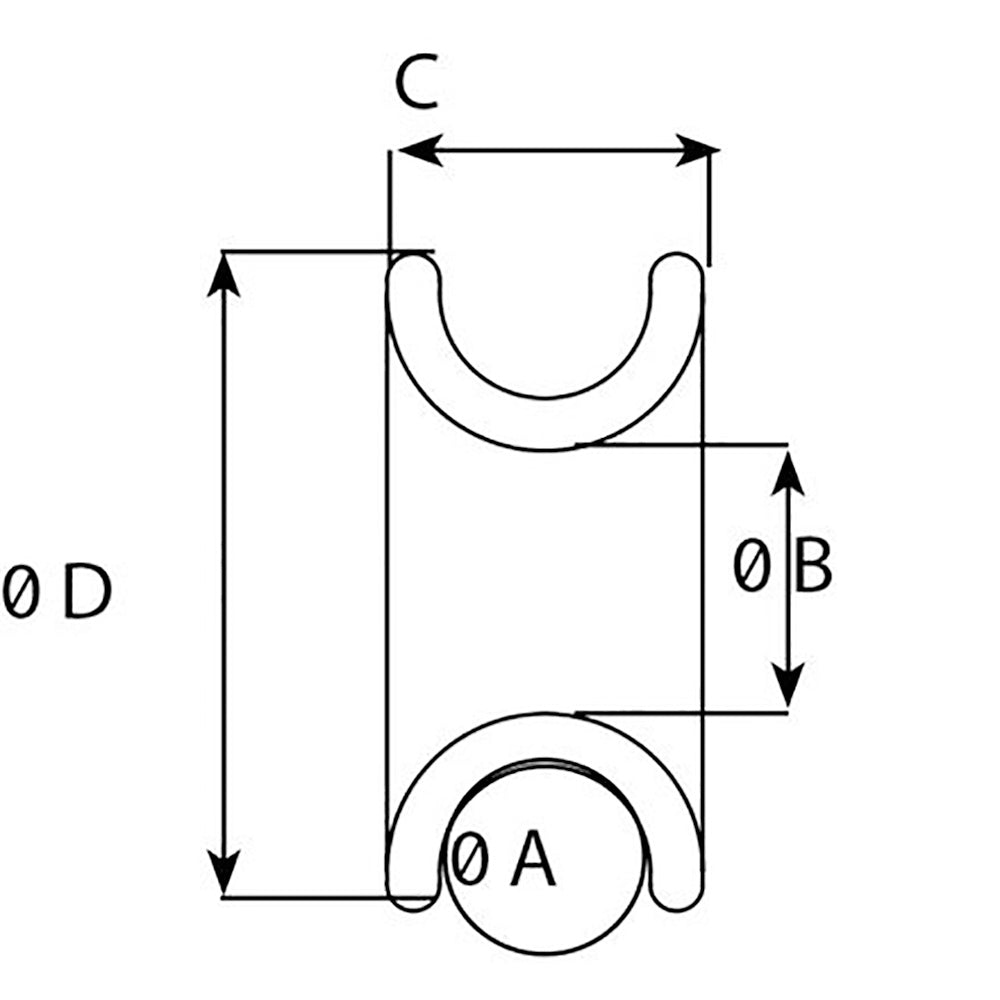

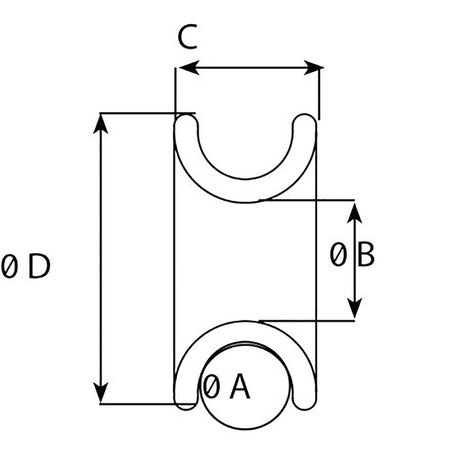

• A: (inch) 43/64" / (mm) 17


• B: (inch) 63/64" / (mm) 25


• C: (inch) 63/64" / (mm) 25


• D diameter: (inch) 2 23/64" / (mm) 60

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
