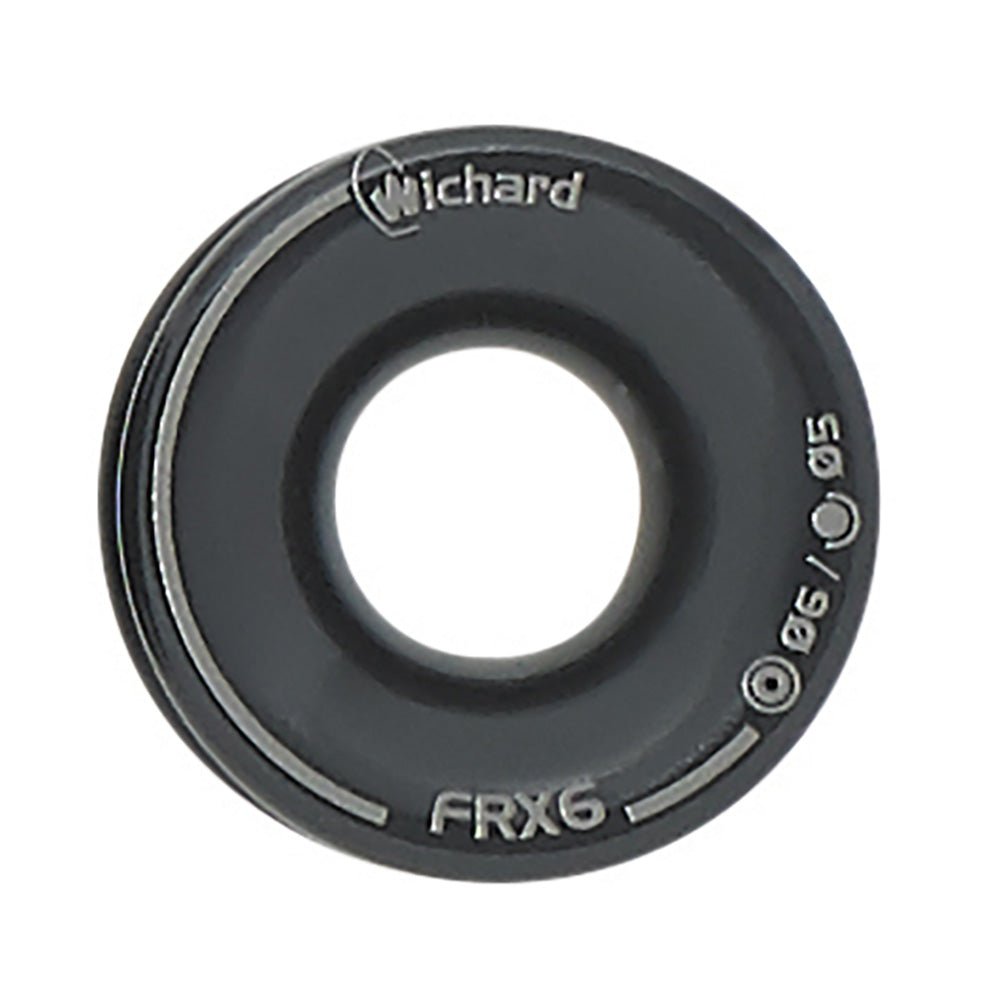

FRX6 Friction Ring - 7mm (9/32")

Features:

• Efficient and light


• FRX Wichard thimbles are efficient, light, and reliable


• Very strong and can be used for heavy loads and semi-static lines


• FRX thimbles are designed to make your lines run smoothly with minimum wear


• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium


• Working load: (lb) 880 / (kg) 400


• Weight: (lb) 0.004 / (g) 2

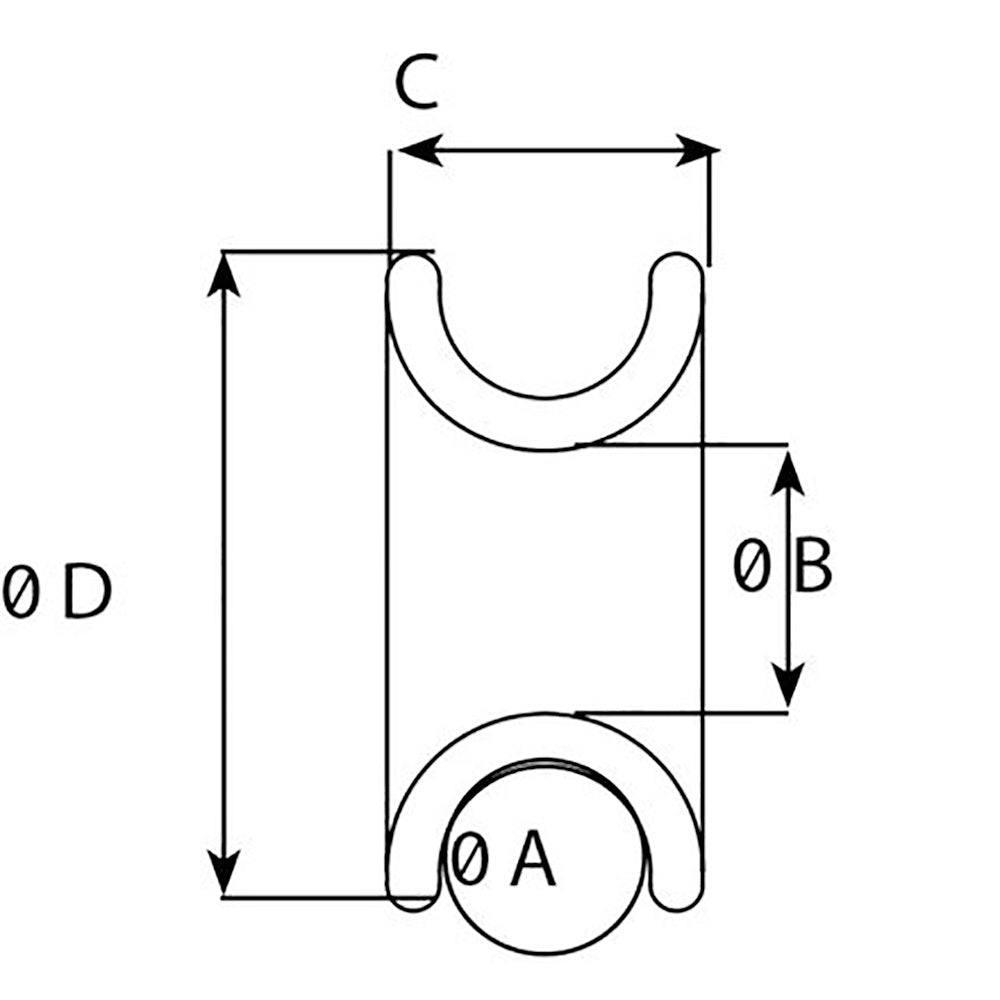

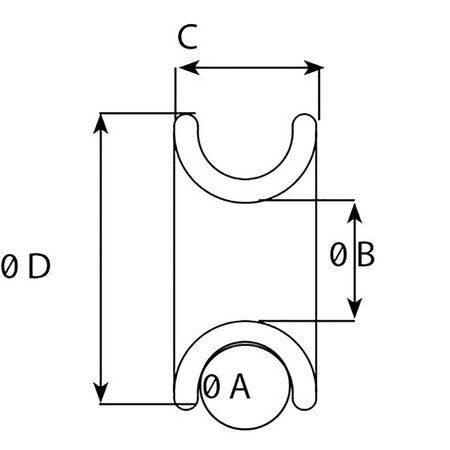

• A: (inch) 7/32" / (mm) 5.5


• B: (inch) 9/32" / (mm) 7


• C: (inch) 23/64" / (mm) 9


• D diameter: (inch) 45/64" / (mm) 18

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
