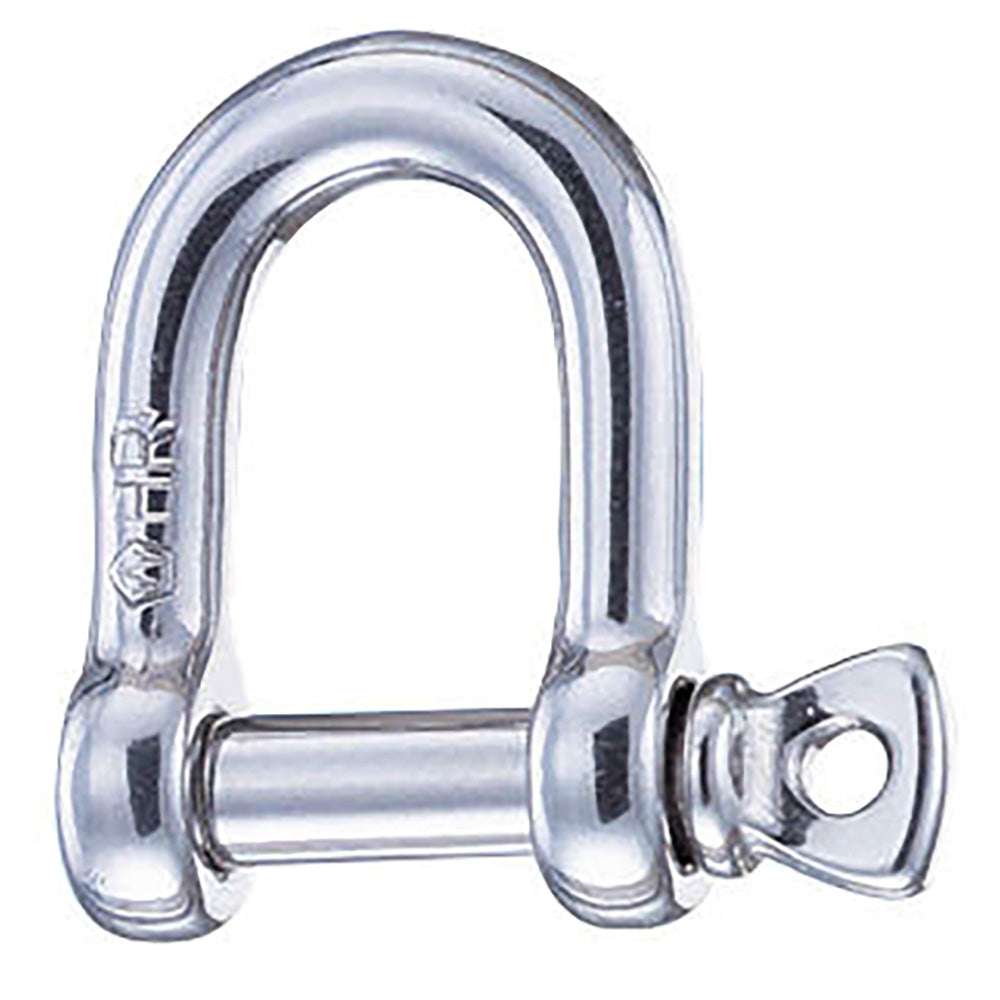

HR D Shackle - 14mm Diameter - 35/64"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)


• Outstanding working and breaking load


• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• Applications requesting high loads


• Standard applications of the shackle


• Attachment applications: blocks, head


• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 11280 / (kg) 5120


• WLL: (lb) 5290 / (kg) 2400


• Breaking load: (lb) 26450 / (kg) 12000


• Weight: (lb) 0.67 / (g) 304

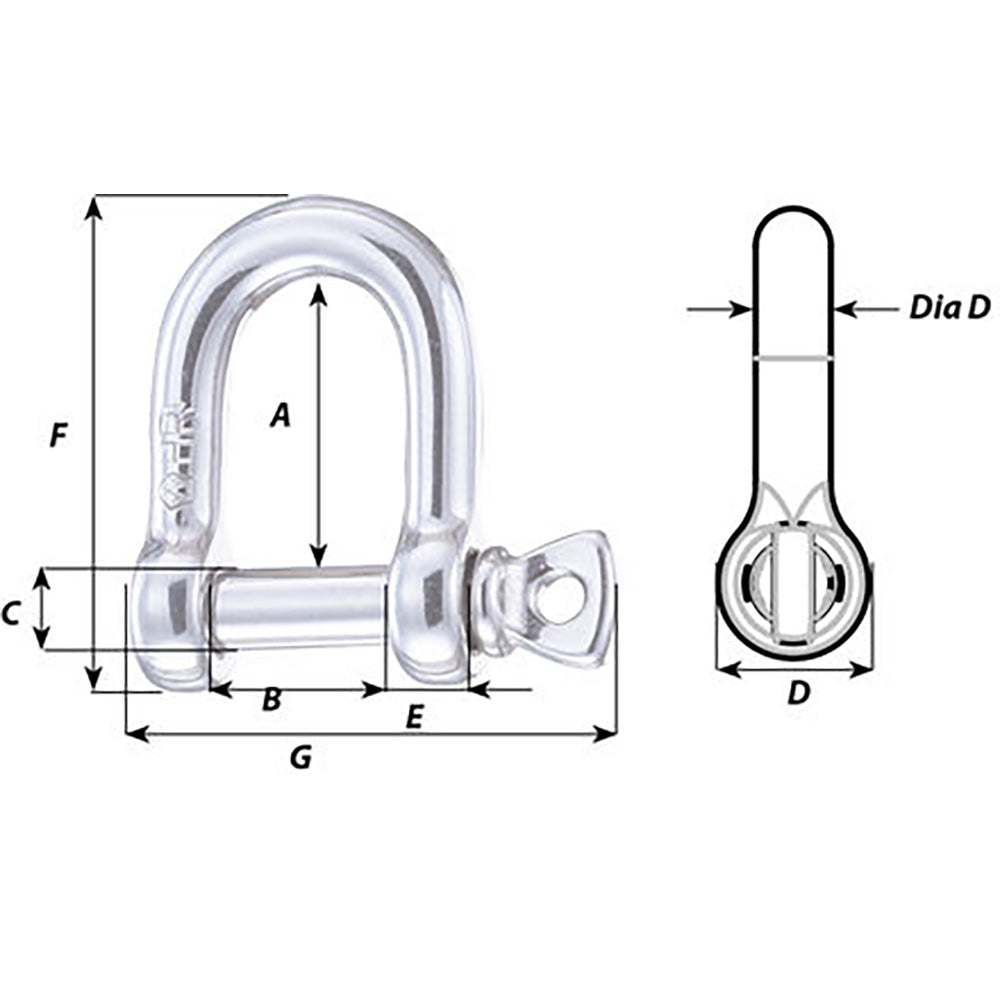

Dimensions:

• A: (inch) 1 59/64" / (mm) 49


• B: (inch) 1 7/64" / (mm) 28


• D diameter: (inch) 35/64" / (mm) 14

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
