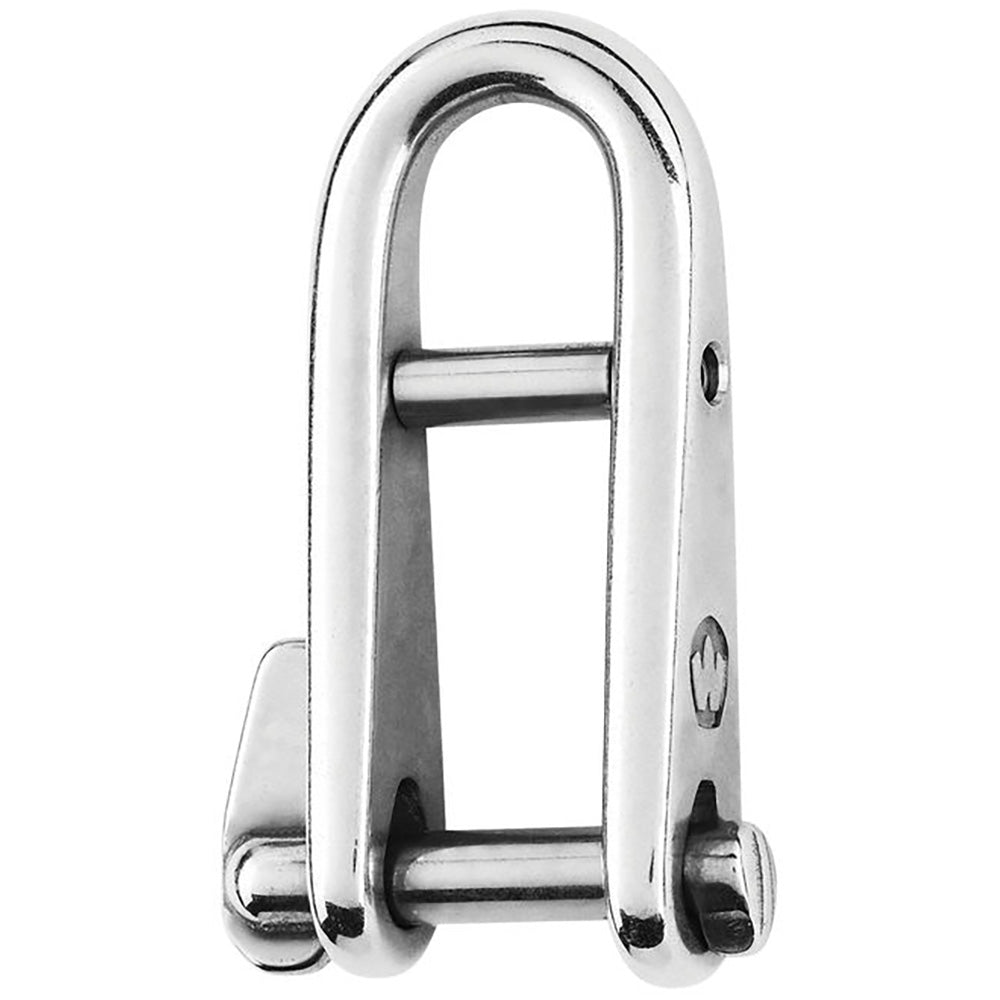

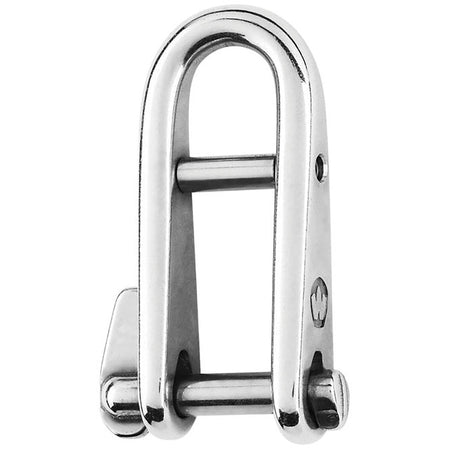

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)


• Outstanding working and breaking load


• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• Applications requesting high loads


• Perfect product for halyards or applications requiring opening/closing the shackle often


• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 1050 / (kg) 480


• Breaking load: (lb) 3300 / (kg) 1500


• Weight: (lb) 0.068 / (g) 31

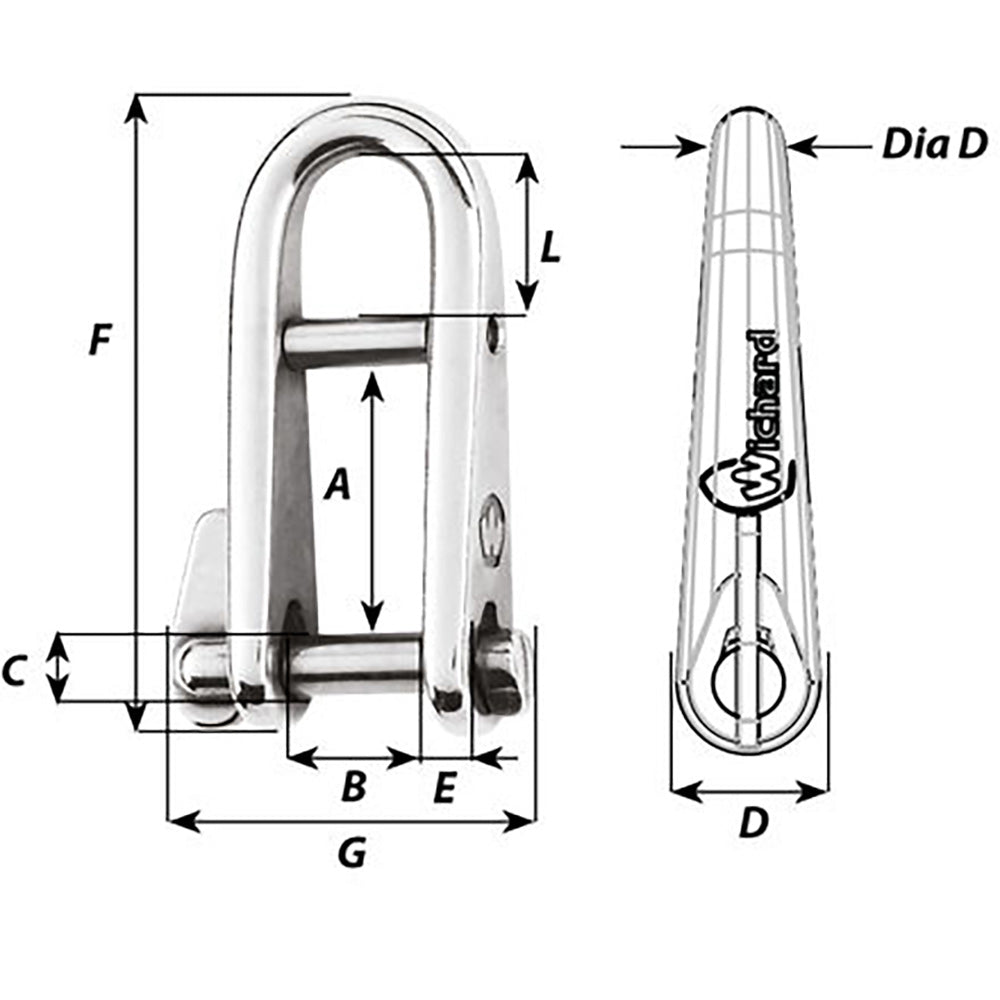

Dimensions:

• A: (inch) 1 29/64" / (mm) 37


• B: (inch) 33/64" / (mm) 13


• C: (inch) 13/64" / (mm) 5


• D: (inch) 7/16" / (mm) 11


• E: (inch) 5/32" / (mm) 4


• F: (inch) 1 59/64" / (mm) 49


• G: (inch) 1 7/32" / (mm) 31


• L: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
