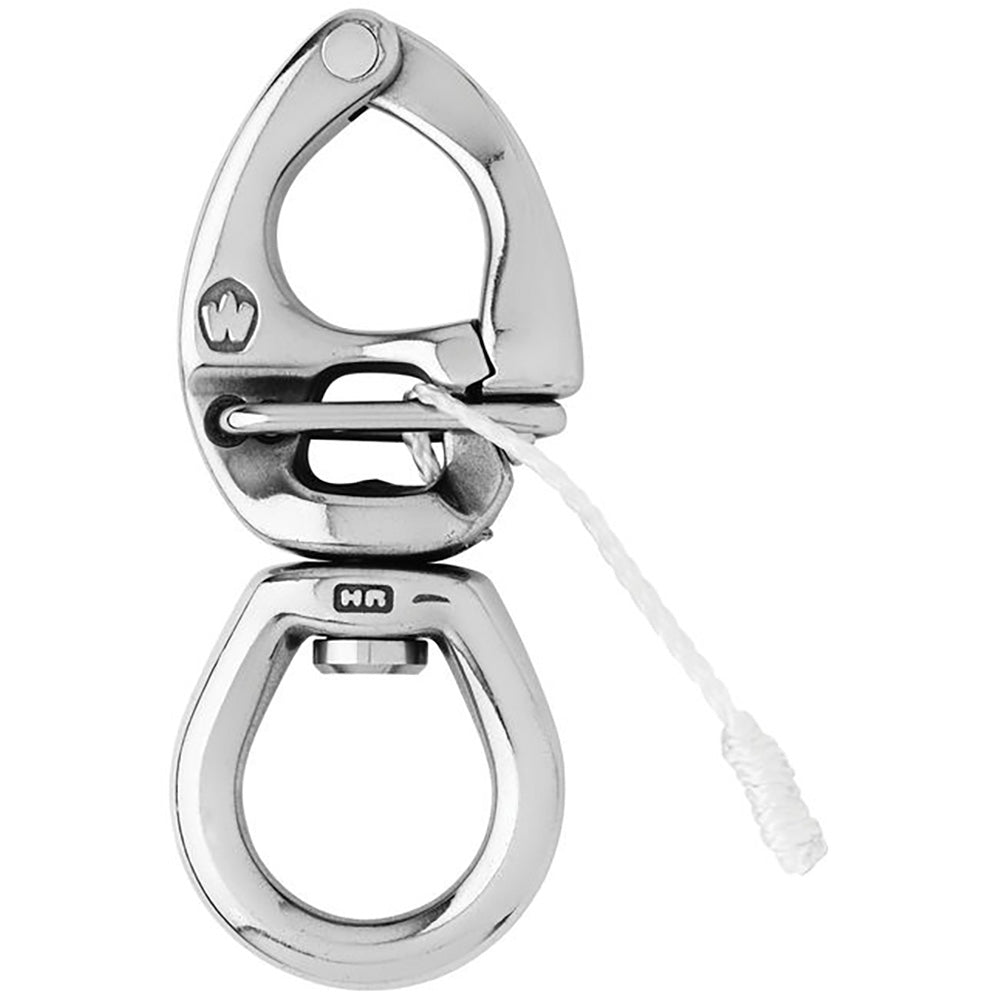

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail


• The opening is made by pulling the lanyard


• Perfect to attach several lines (spinnaker sheets...)


• Outstanding working and breaking loads


• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations


• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 3520 / (kg) 1600


• Breaking load: (lb) 6610 / (kg) 3000


• Weight: (lb) 0.353 / (g) 160

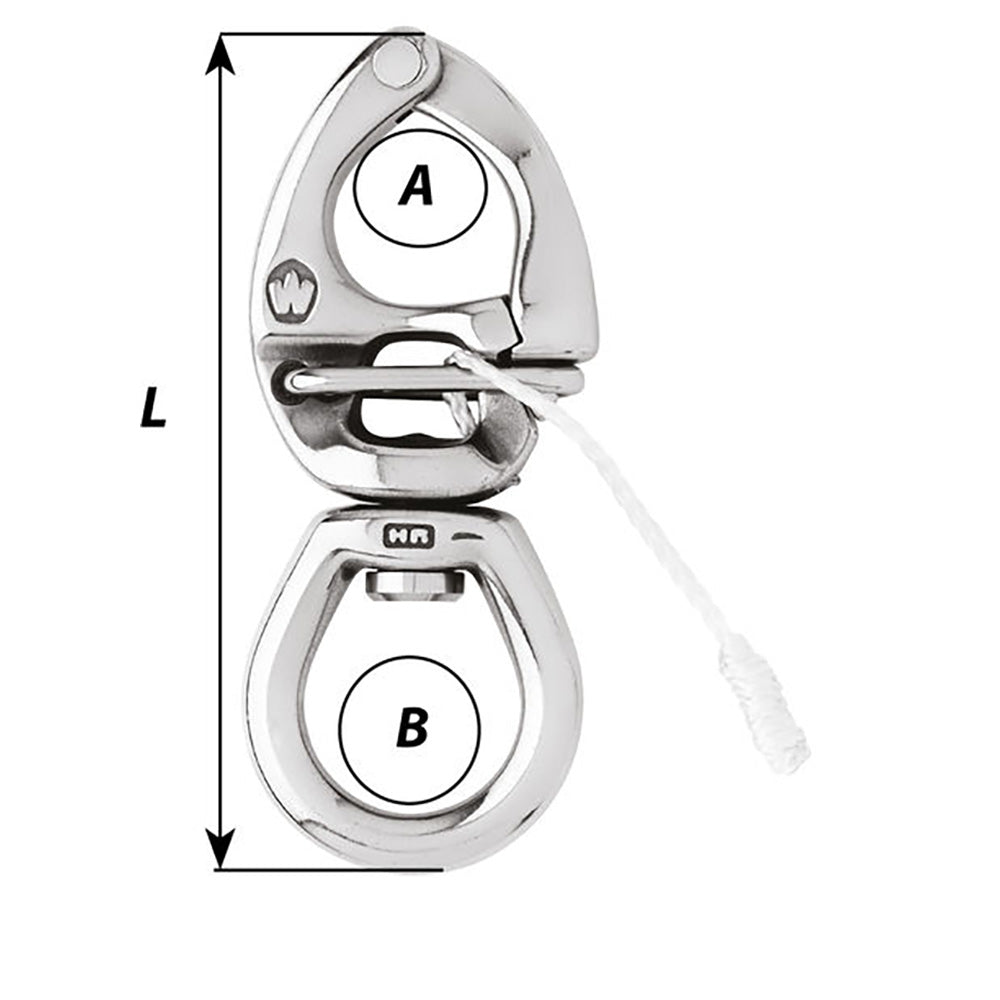

Dimensions:

• A: (inch) 25/32" / (mm) 20


• B: (inch) 1 3/64" / (mm) 26.5


• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
