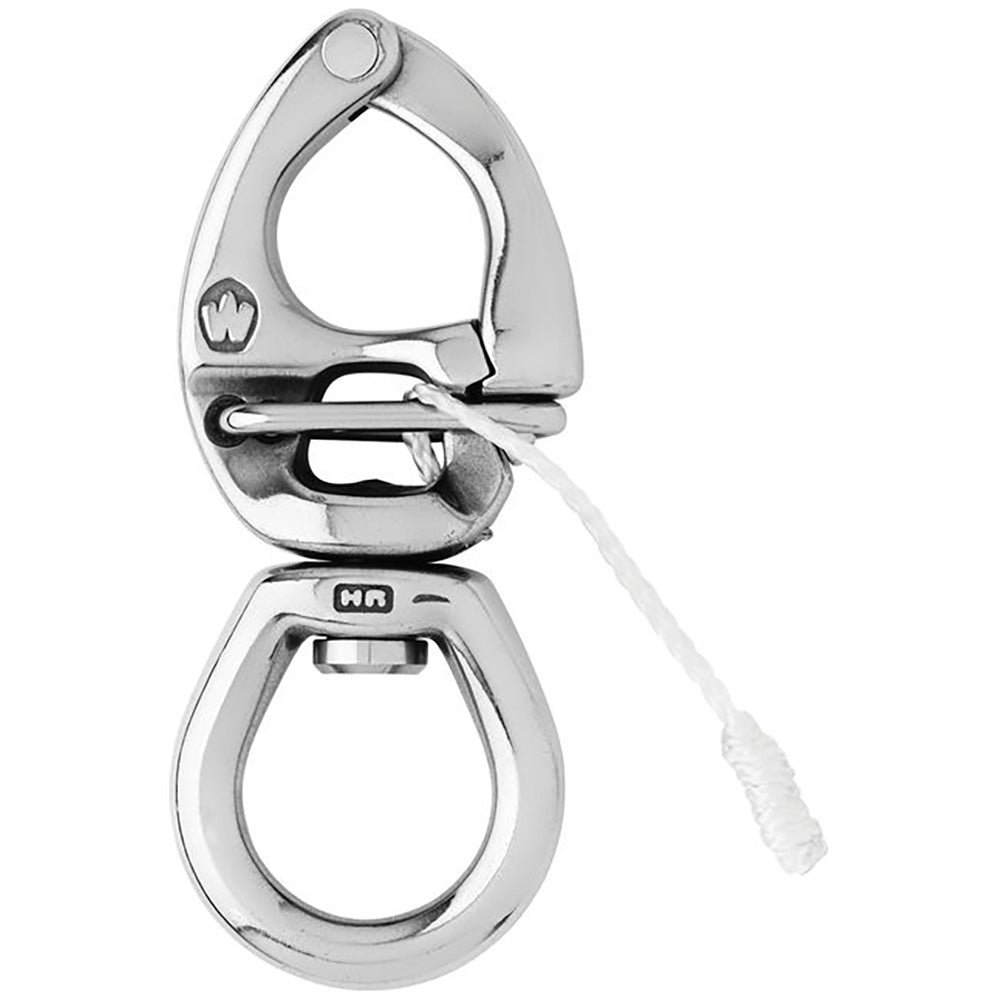

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail


• The opening is made by pulling the lanyard


• Perfect to attach several lines (spinnaker sheets...)


• Outstanding working and breaking loads


• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations


• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 1940 / (kg) 880


• Breaking load: (lb) 2860 / (kg) 1300


• Weight: (lb) 0.119 / (g) 54

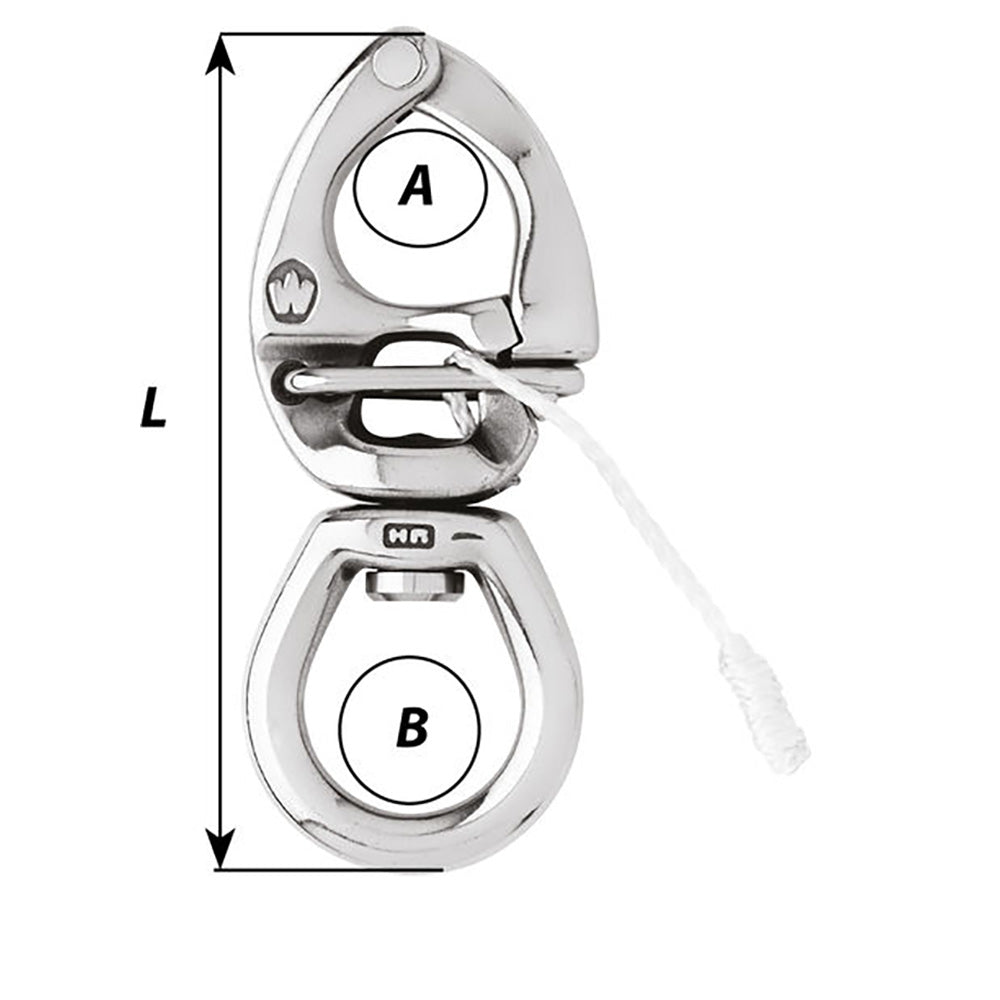

Dimensions:

• A: (inch) 35/64" / (mm) 14


• B: (inch) 3/4" / (mm) 19


• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
