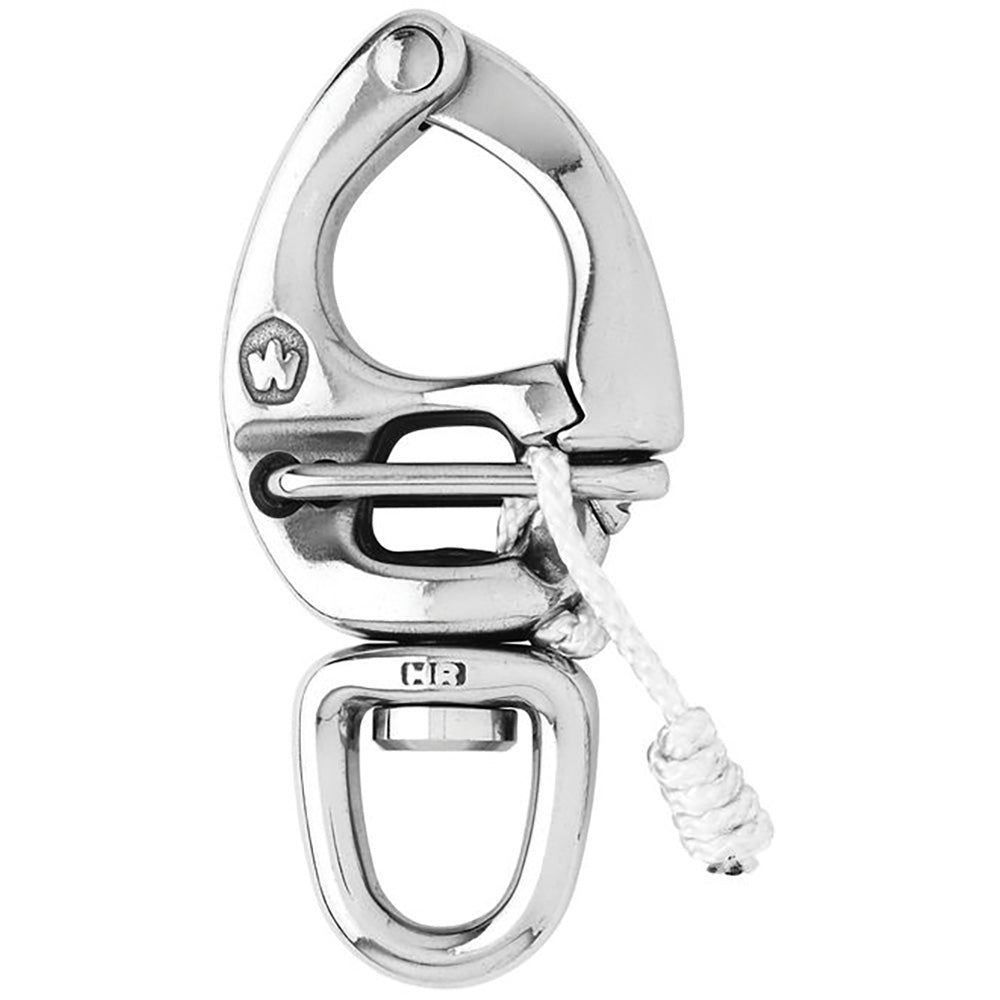

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye


• The opening is made by pulling the lanyard


• Perfect to attach one sheet or halyard


• Outstanding working and breaking loads


• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations


• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 11460 / (kg) 5200


• Breaking load: (lb) 19840 / (kg) 9000


• Weight: (lb) 1.208 / (g) 548

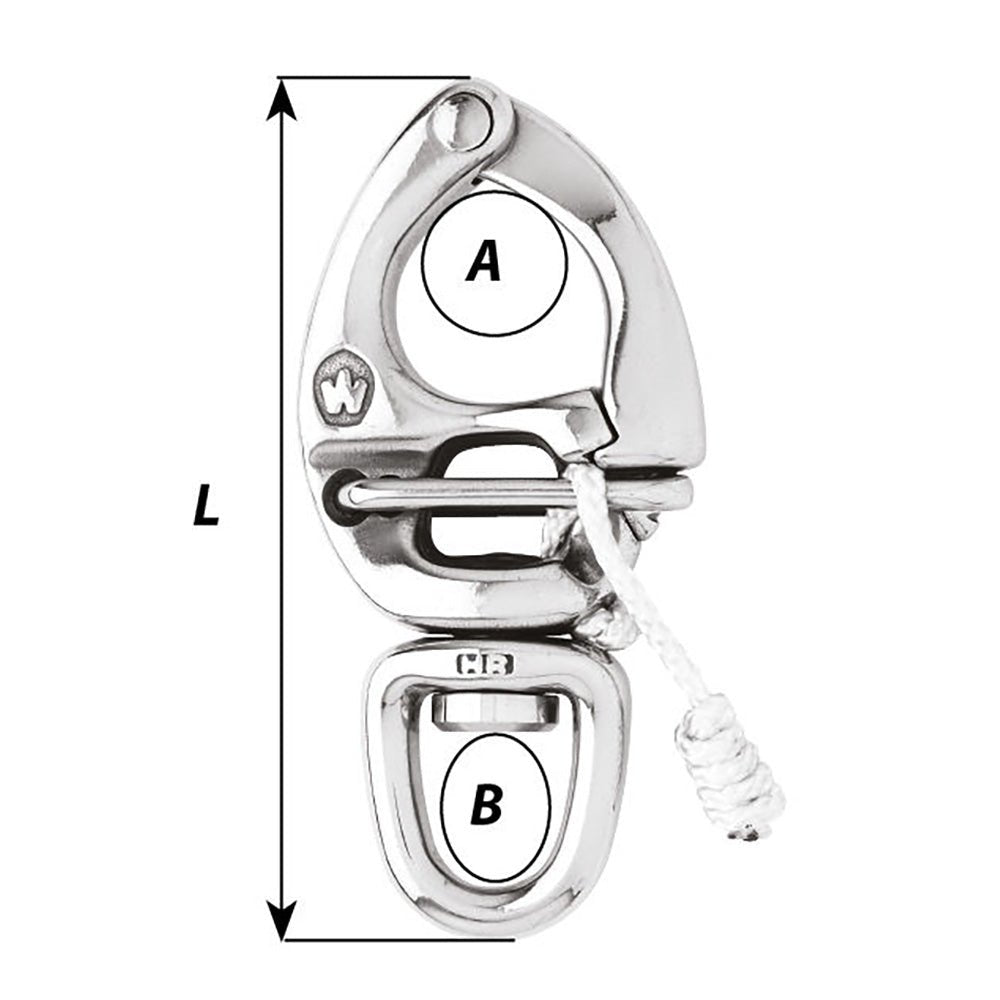

Dimensions:

• A: (inch) 1 11/32" / (mm) 34


• B: (inch) 15/16" / (mm) 24


• Length: (inch) 5 29/32" / (mm) 150

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
