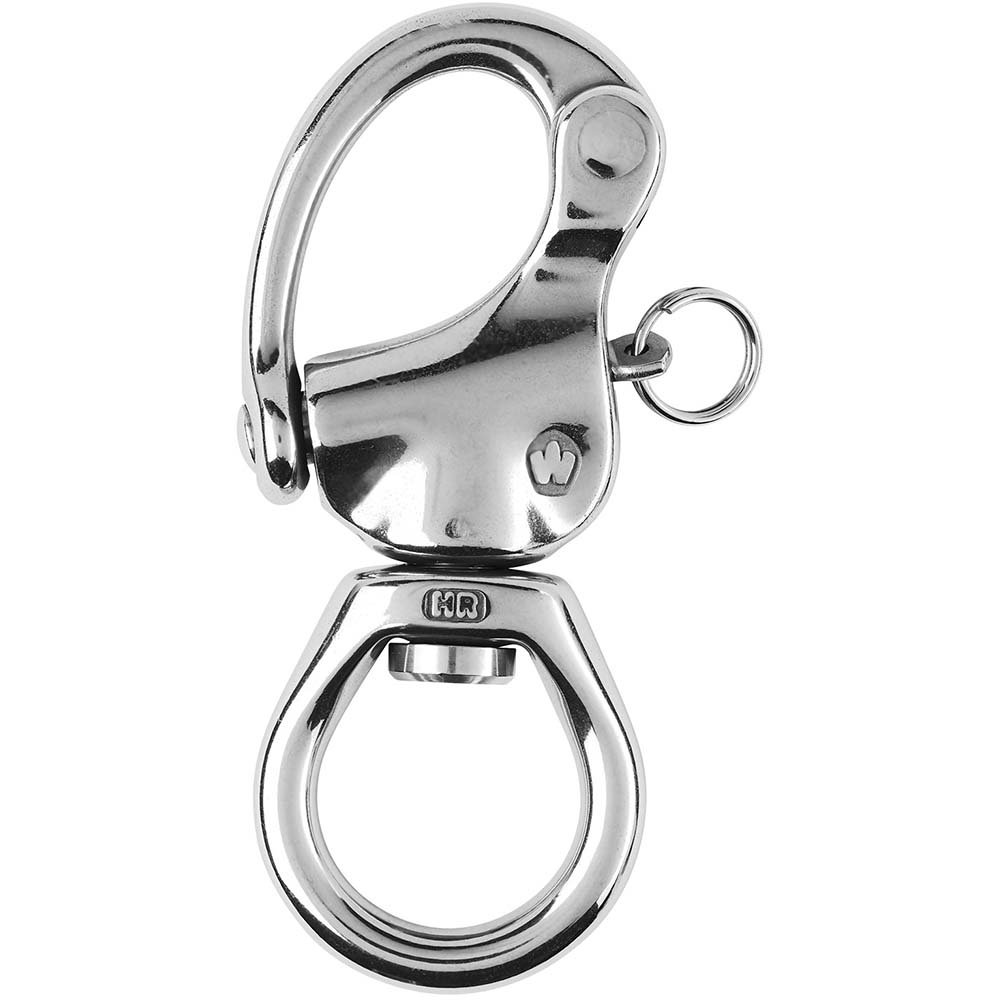

HR Snap Shackle - Large Bail - Length 105mm

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye


• The large eye allows attaching several ropes


• Free rotation of the snap shackle thanks to the swivel eye


• The plunger pin is set captive into the hook and cannot become detached


• Excellent working and breaking loads


• Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications


• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade


• Length (inch) 4-9/64"


• Working load (lb) 2820


• Breaking load (lb) 7930


• Weight (lb) 0.353

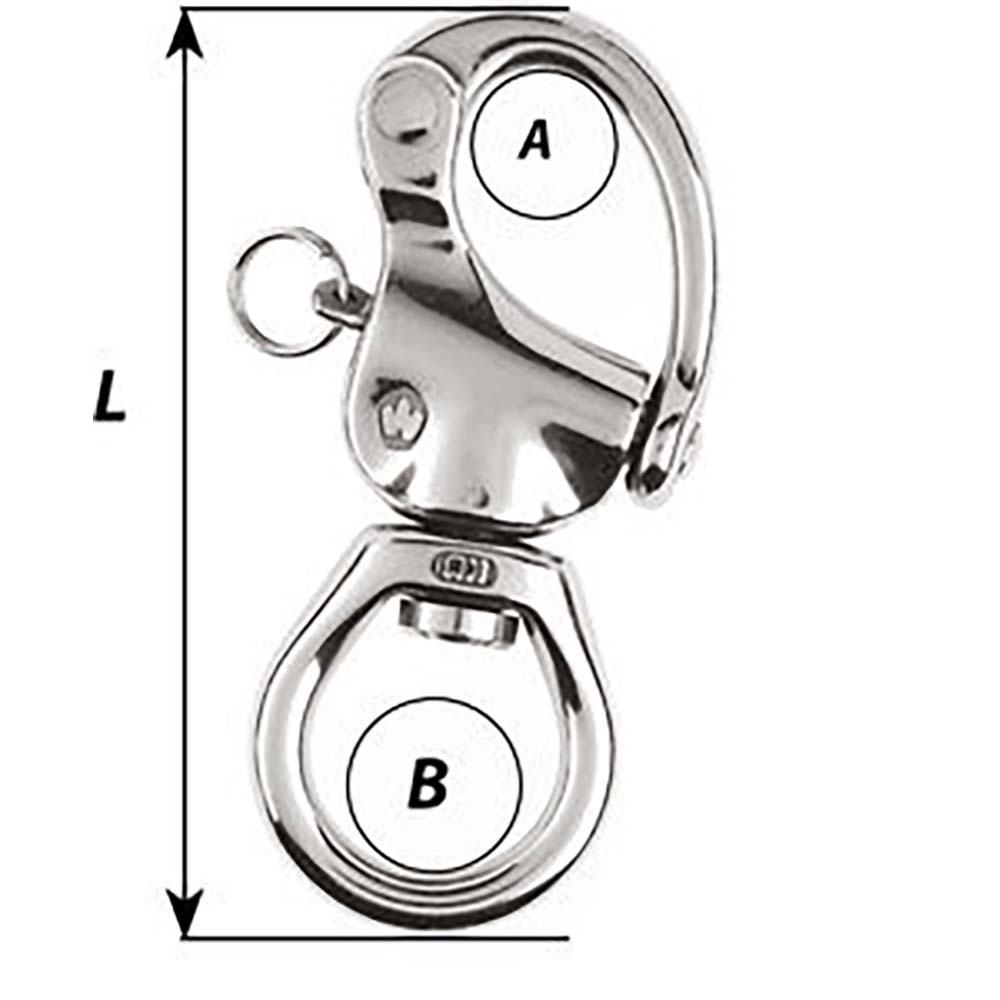

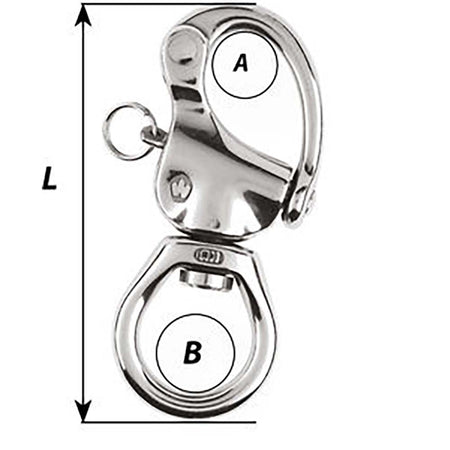

Dimensions (see 2nd image):

• A (inch) 53/64"


• B (inch) 1-1/32"
