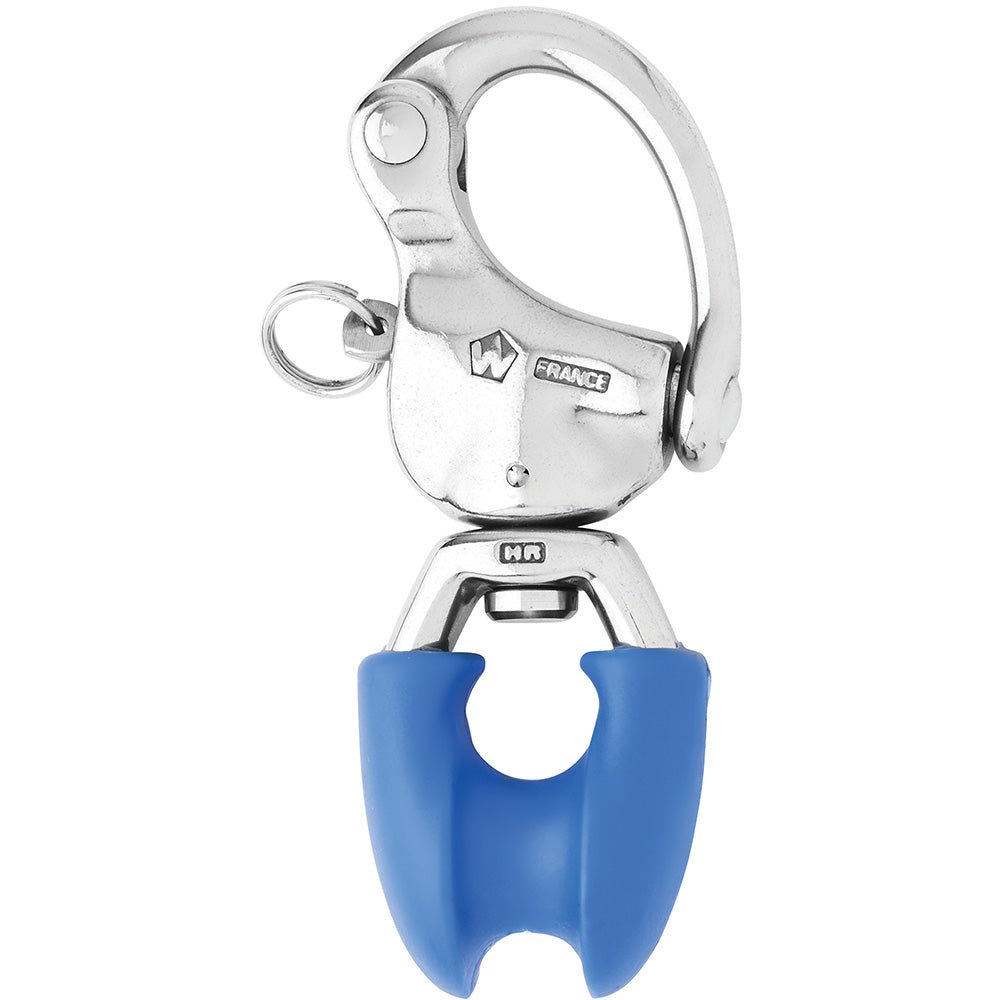

HR Snap Shackle with Thimble Eye - Length 3-3/4"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye


• Allows to splice the halyard directly onto the snap shackle (without using a thimble)


• Avoids the wear of the ropes


• Free rotation of the snap shackle thanks to the swivel eye


• The plunger pin is set captive into the hook and cannot become detached


• Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications


• Allows to splice the halyard


• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade


• Length (inch) 3 3/4"


• Working load (lb) 2110


• Breaking load (lb) 4400


• Weight (lb) 0.168

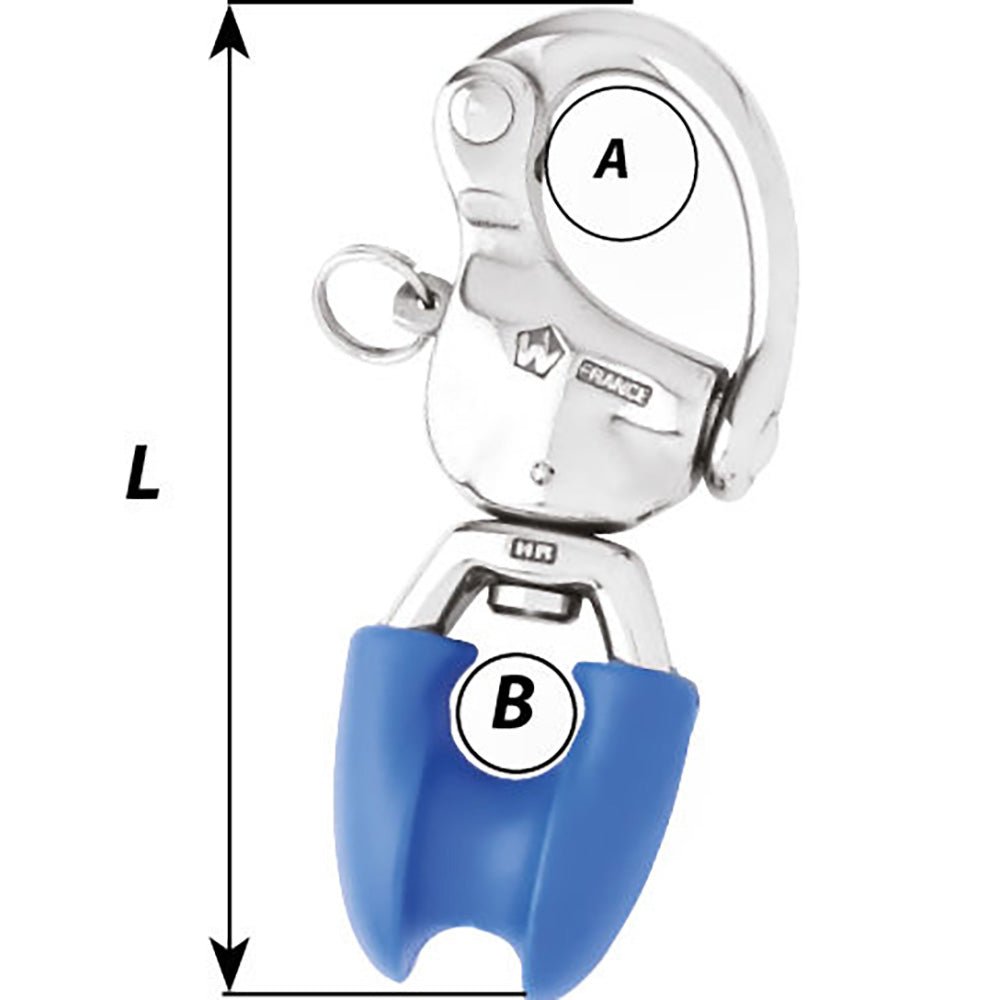

• A (inch) 5/8"


• B (inch) 15/32"
