HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel) with webbing swivel.


• Its flat design allows attaching a webbing


• Free rotation of the snap shackle thanks to the swivel eye


• The plunger pin is set captive into the hook and cannot become detached


• Excellent working and breaking loads


• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications


• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 2820 / (kg) 1280


• Breaking load: (lb) 8480 / (kg) 3850

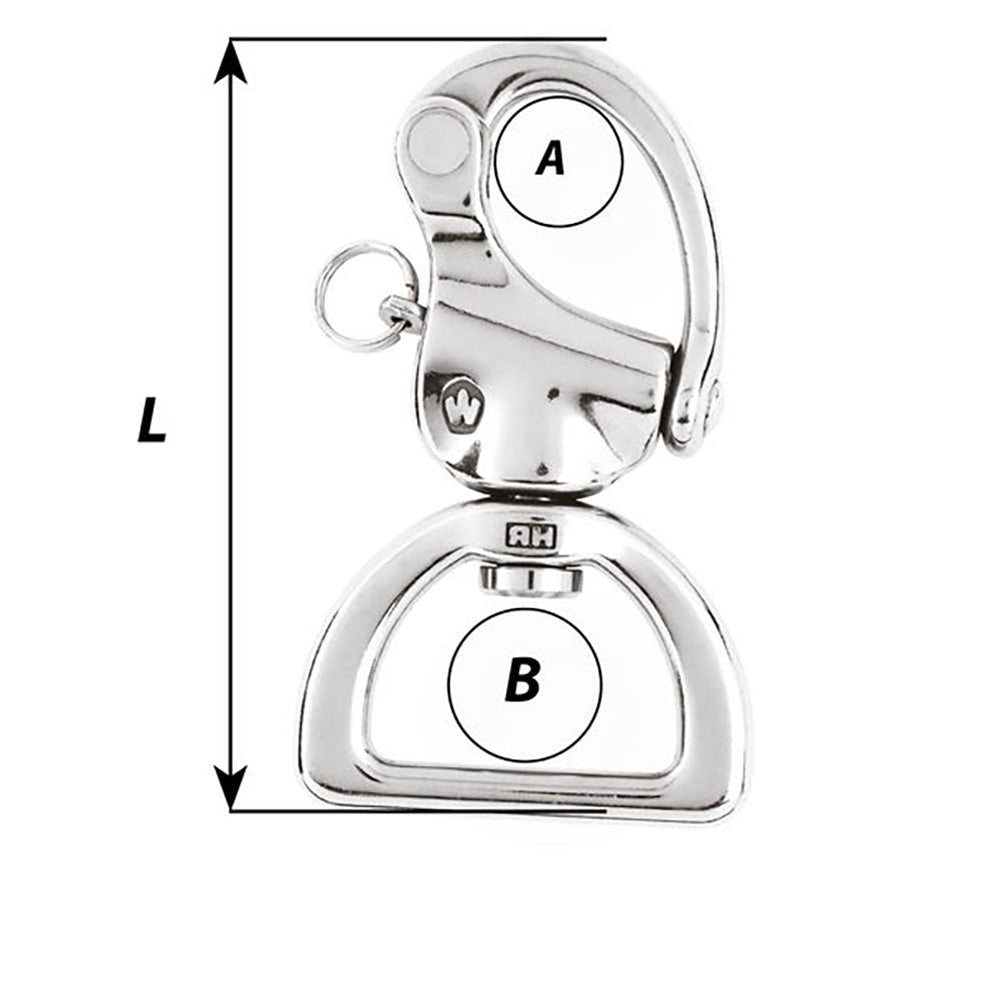

Dimensions:

• A: (inch) 53/64" / (mm) 21


• B: (inch) 1 37/64" / (mm) 40


• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
