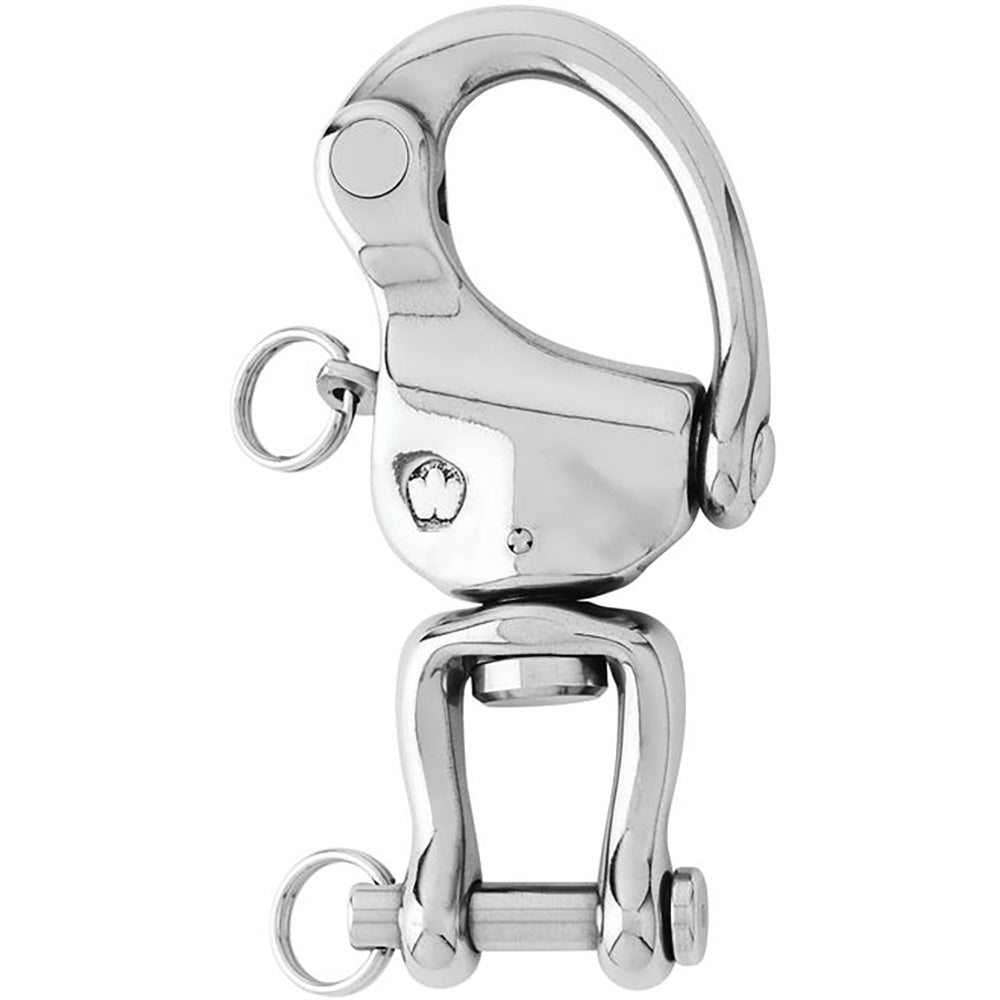

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

Features:

• HR Forged snap shackle (Grade 17.4PH stainless steel)with clevis pin swivel


• Free rotation of the snap shackle thanks to the swivel eye


• The plunger pin is set captive into the hook and cannot become detached


• Excellent working and breaking loads


• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 5290 / (kg) 2400


• Breaking load: (lb) 15430 / (kg) 7000


• Weight: (lb) 0.919 / (g) 417

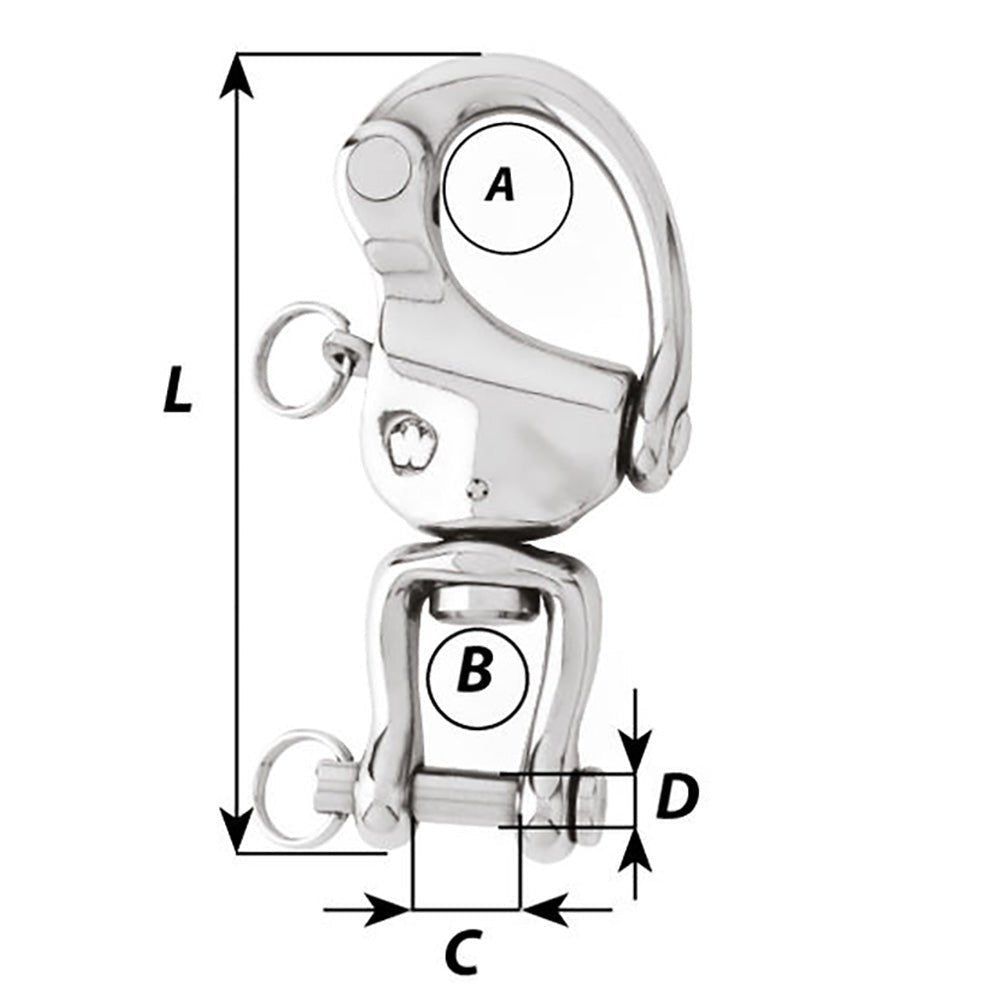

Dimensions:

• A: (inch) 1 1/32" / (mm) 26


• B: (inch) 1 1/16" / (mm) 27


• C: (inch) 45/64" / (mm) 18


• D diameter: (inch) 7/16" / (mm) 11


• Length: (inch) 4 23/32" / (mm) 120

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
