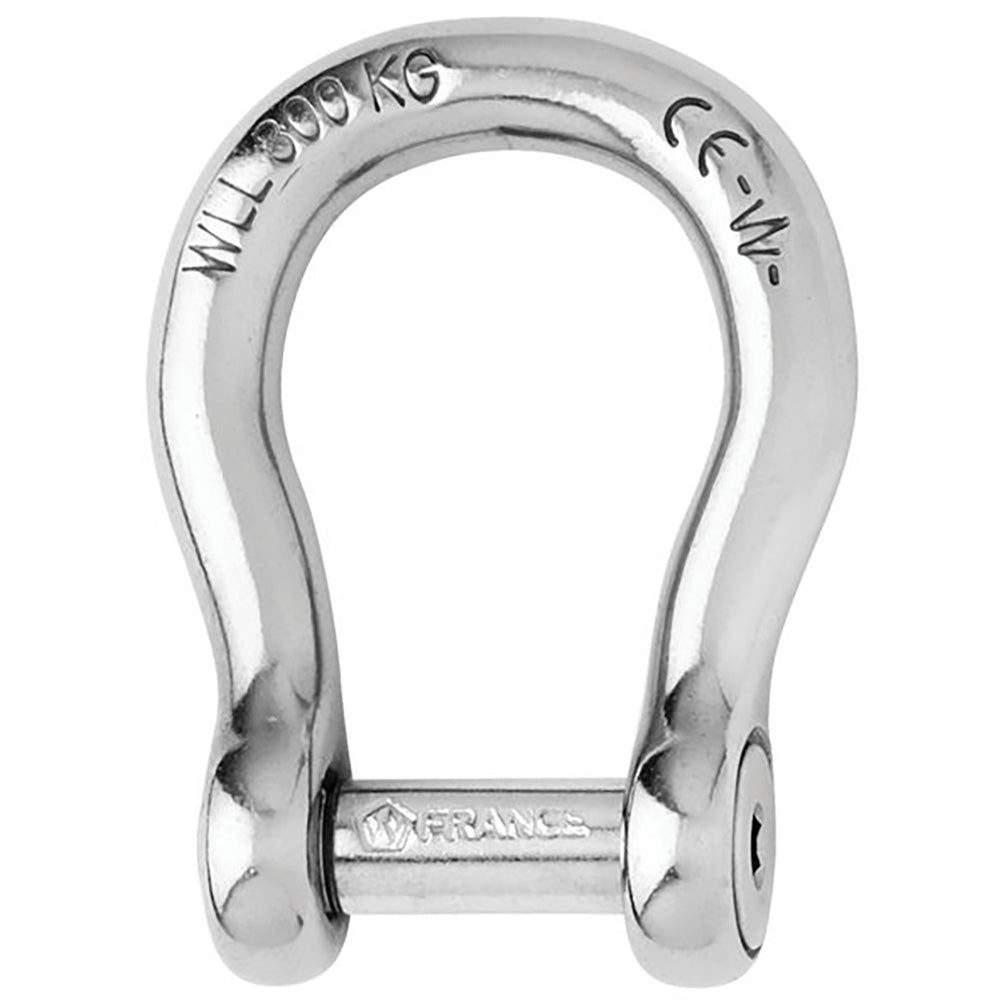

Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)

Applications:

• Ideal to link chains and anchor


• On the halyard, avoids damaging the sails


• To be used when the clutter is reduced


• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 1320 / (kg) 600


• WLL: (lb) 660 / (kg) 300


• Breaking load: (lb) 3300 / (kg) 1500


• Weight: (lb) 0.064 / (g) 29

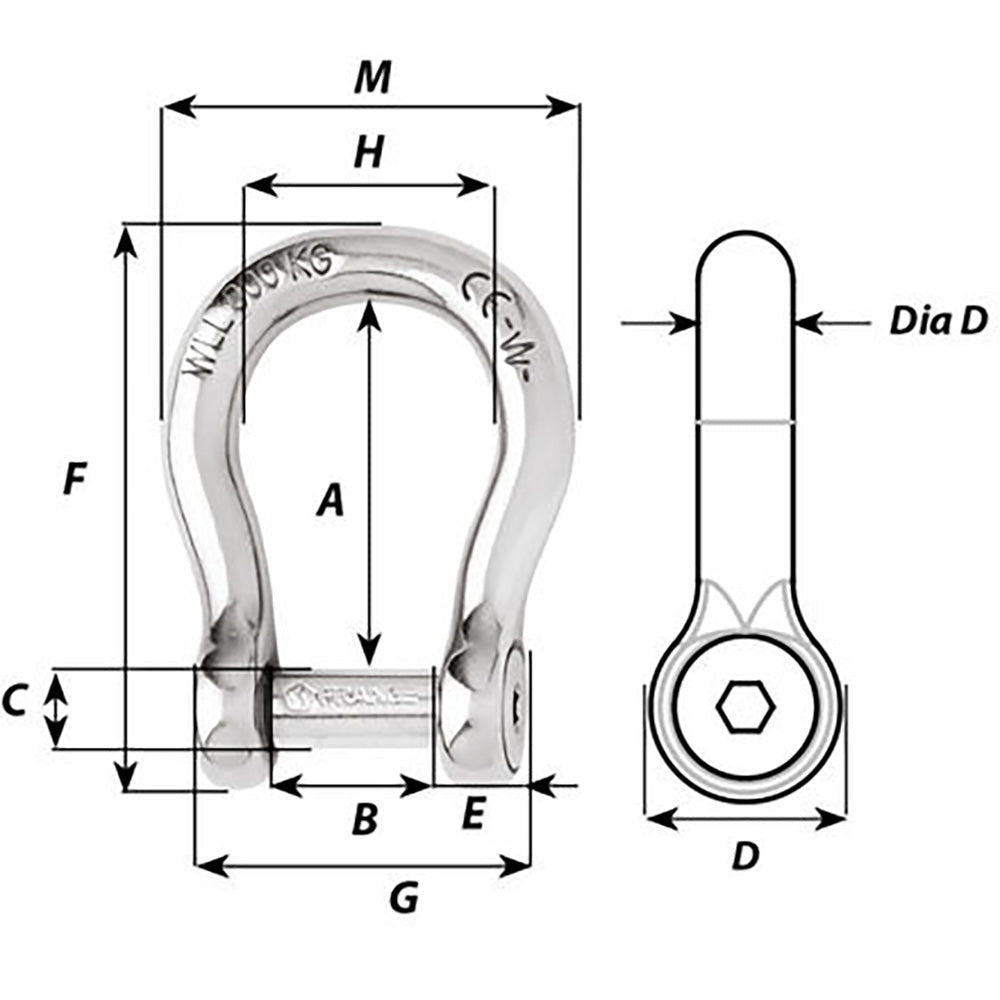

Dimensions:

• A: (inch) 1 1/16" / (mm) 27


• B: (inch) 15/32" / (mm) 12


• C: (inch) 15/64" / (mm) 6


• D: (inch) 15/32" / (mm) 12


• D diameter: (inch) 15/64" / (mm) 6


• E: (inch) 13/64" / (mm) 5


• F: (inch) 3/64" / (mm) 1


• M: (inch) 1 17/64" / (mm) 32

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
