Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Wichard Marine

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"

SKU: 93105
(0)
Solo quedan 9
Low inventory - Hurry up!
$33.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

¿Te gusta? ¡Compártelo con tu equipo!

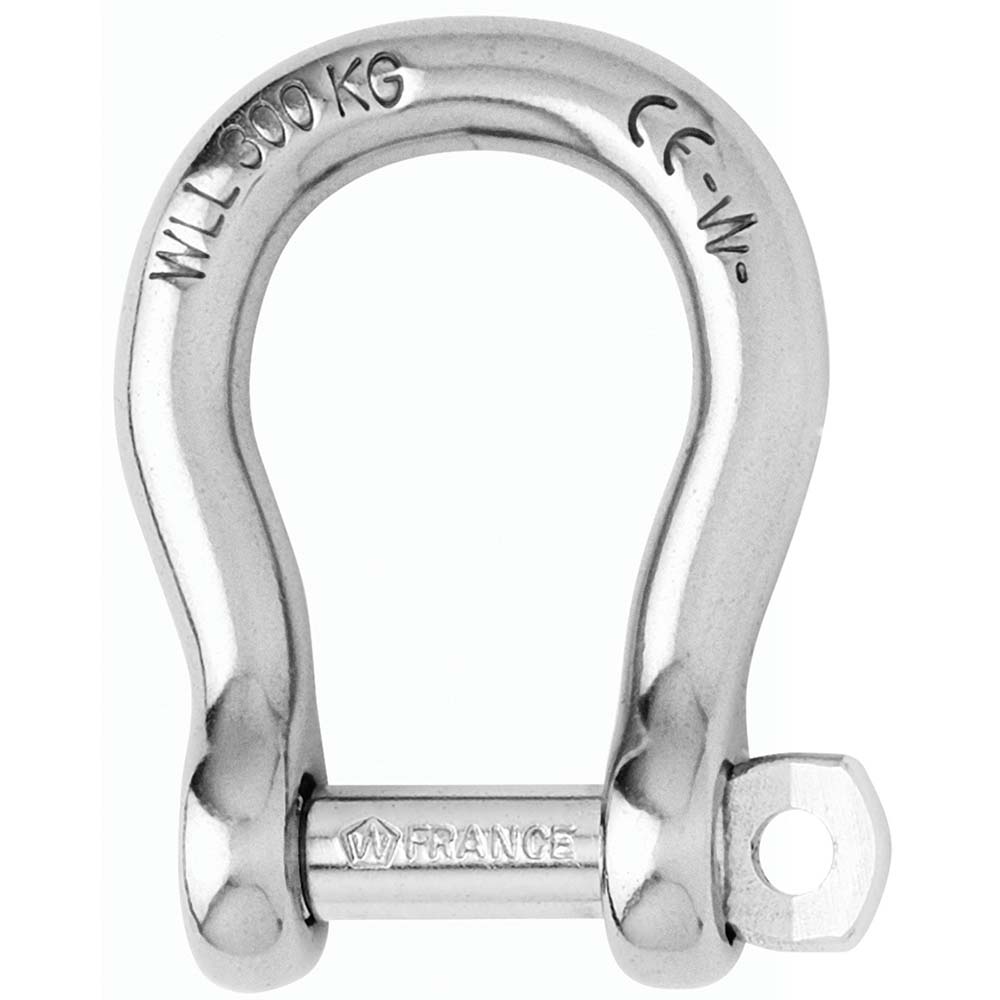

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:


  • Self-locking bow shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

  • WLL: only for industrial applications (lifting i.e)

  • CE marking and batch number

Applications:


  • To be used when ample room is required

  • Possibility to attach several lines or cables

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 2200

  • WLL (lb) 1190

  • Breaking load (lb) 5950

  • Weight (lb) 0.15

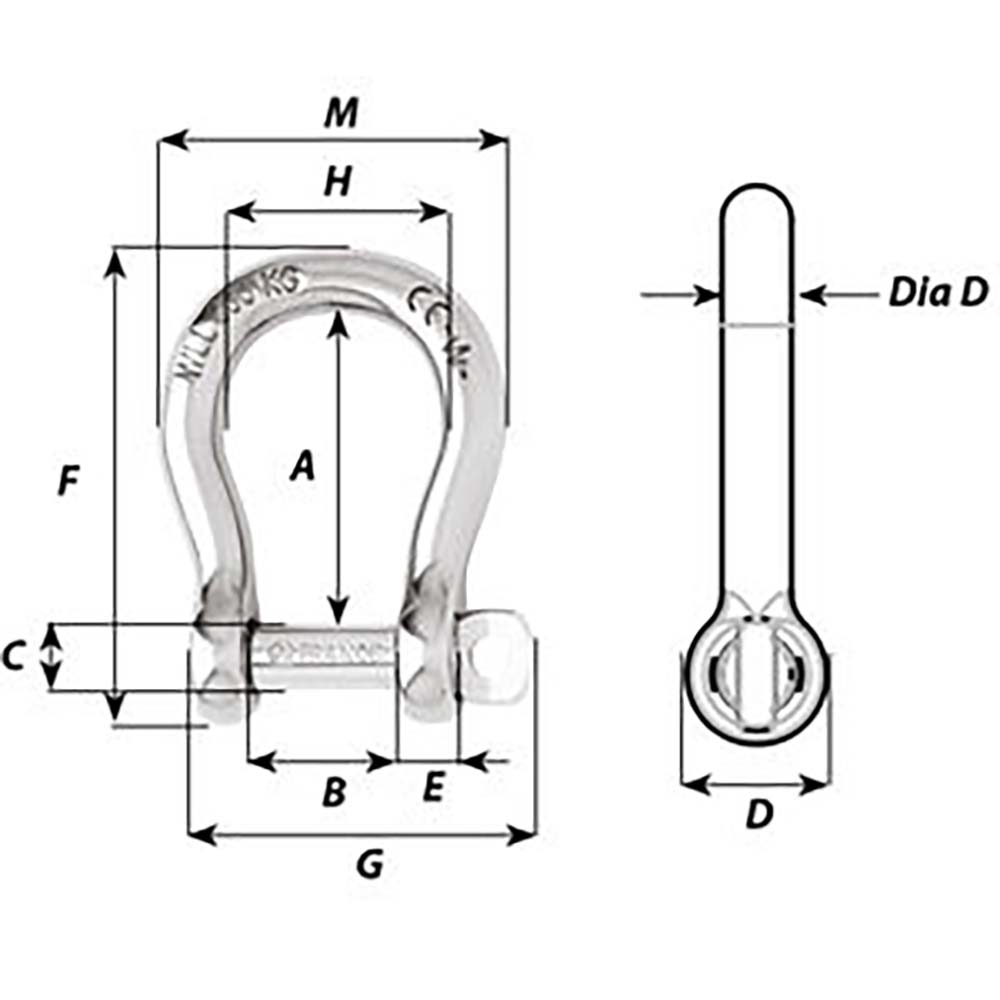

Dimensions (see 2nd image):


  • A (inch) 1-29/64"

  • B (inch) 5/8"

  • C (inch) 5/16"

  • D (inch) 5/8"

  • D diameter (inch) 5/16"

  • E (inch) 9/32"

  • M (inch) 1-17/32"
Truck Freight: No
Oversized: No
  • Tipo Sailing
  • SKU 93105
  • Barcode 768536012446
