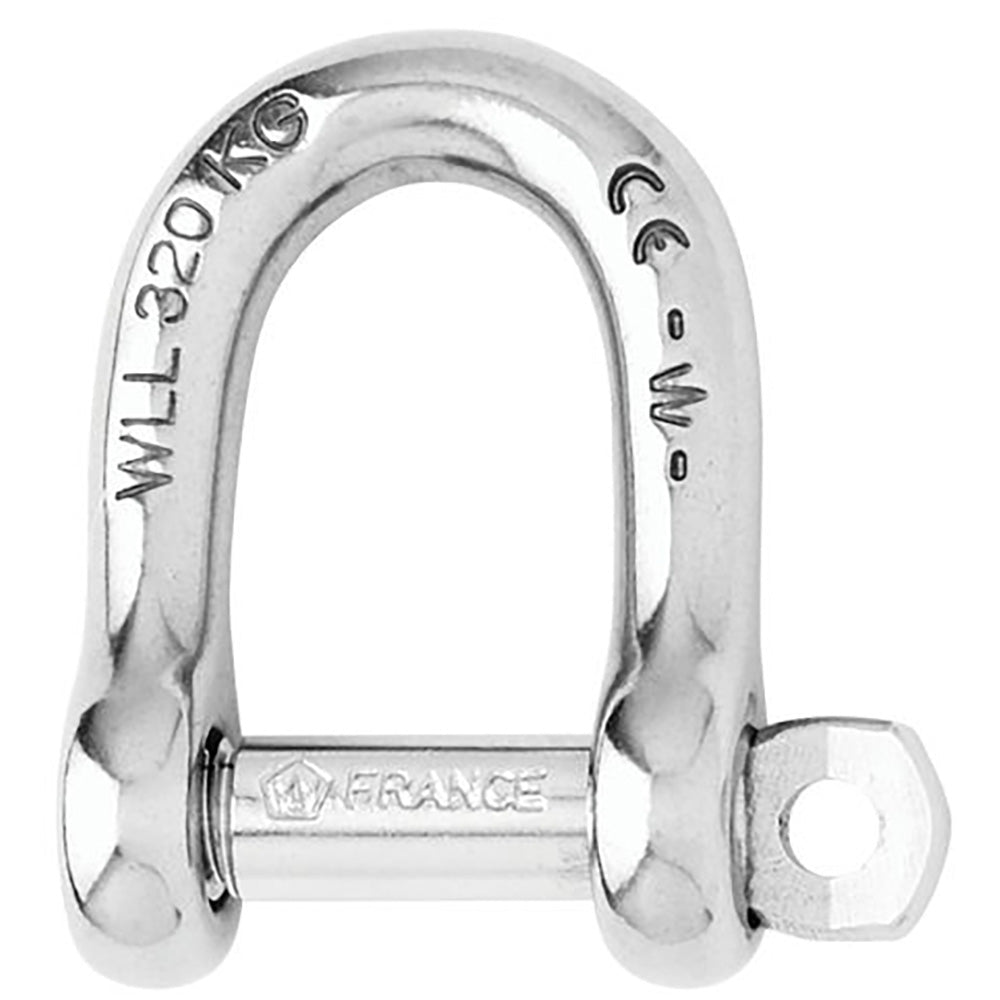

Self-Locking D Shackle - 12mm Diameter - 15/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• Standard applications of the shackle


• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 4580 / (kg) 2080


• WLL: (lb) 2640 / 1200 (kg)


• Breaking load: (lb) 13220 / (kg) 6000


• Weight: (lb) 0.425 / (g) 193

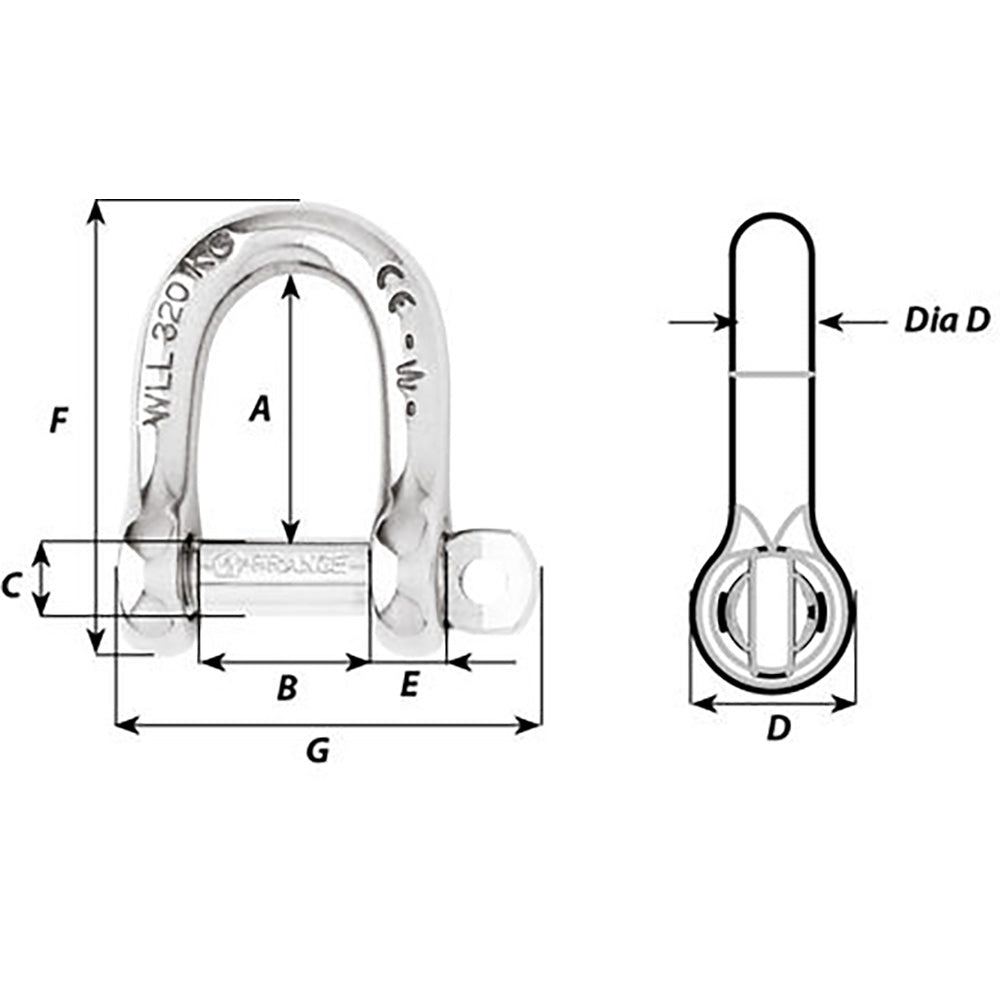

Dimensions:

• A: (inch) 1-21/32" / (mm) 42


• B: (inch) 1-1/16" / (mm) 27


• C: (inch) 15/32" / (mm) 12


• D: (inch) 15/16" / (mm) 24


• D diameter: (inch) 15/32" / (mm) 12


• E: (inch) 7/16" / (mm) 11


• F: (inch) 2-7/8" / (mm) 73


• G: (inch) 2-7/16" / (mm) 62

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
