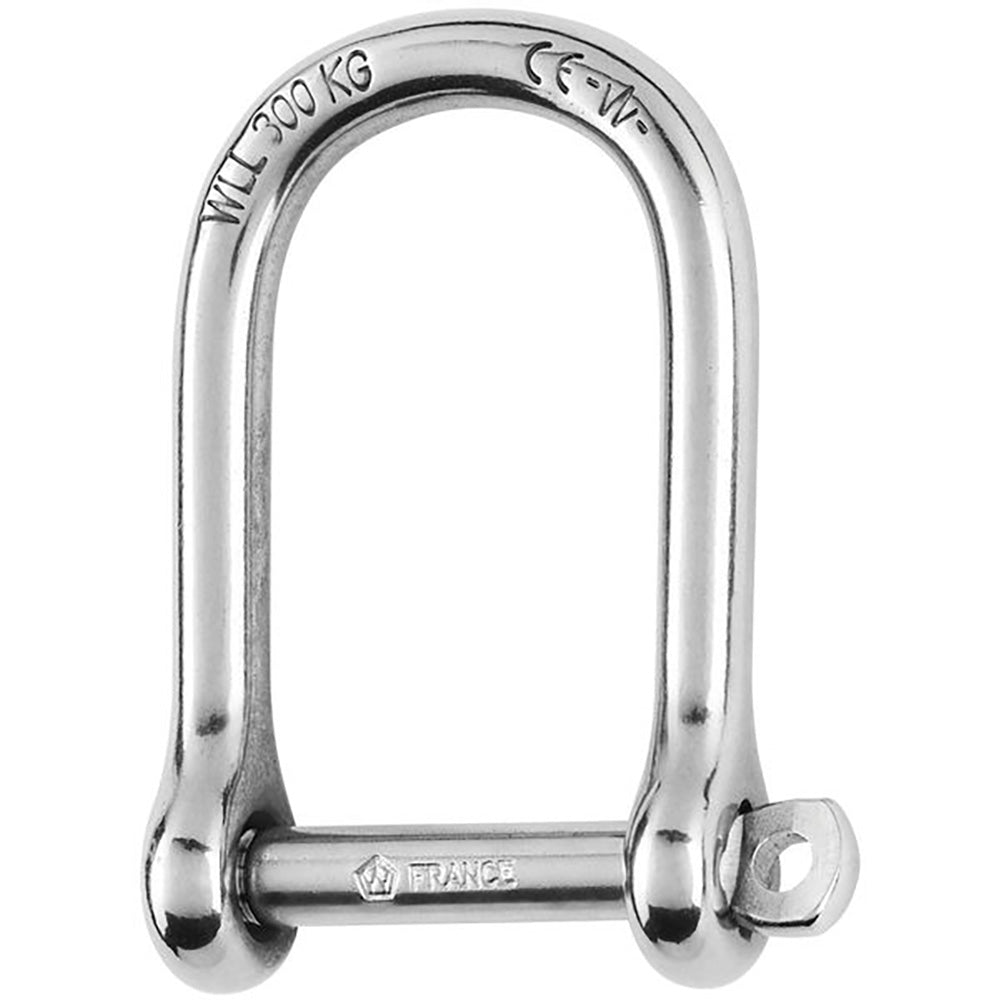

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

• Self-locking large shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 1780 / (kg) 810


• WLL: (lb) 1190 / (kg) 540


• Breaking load: (lb) 5950 / (kg) 2700


• Weight: (lb) 0.148 / (g) 67

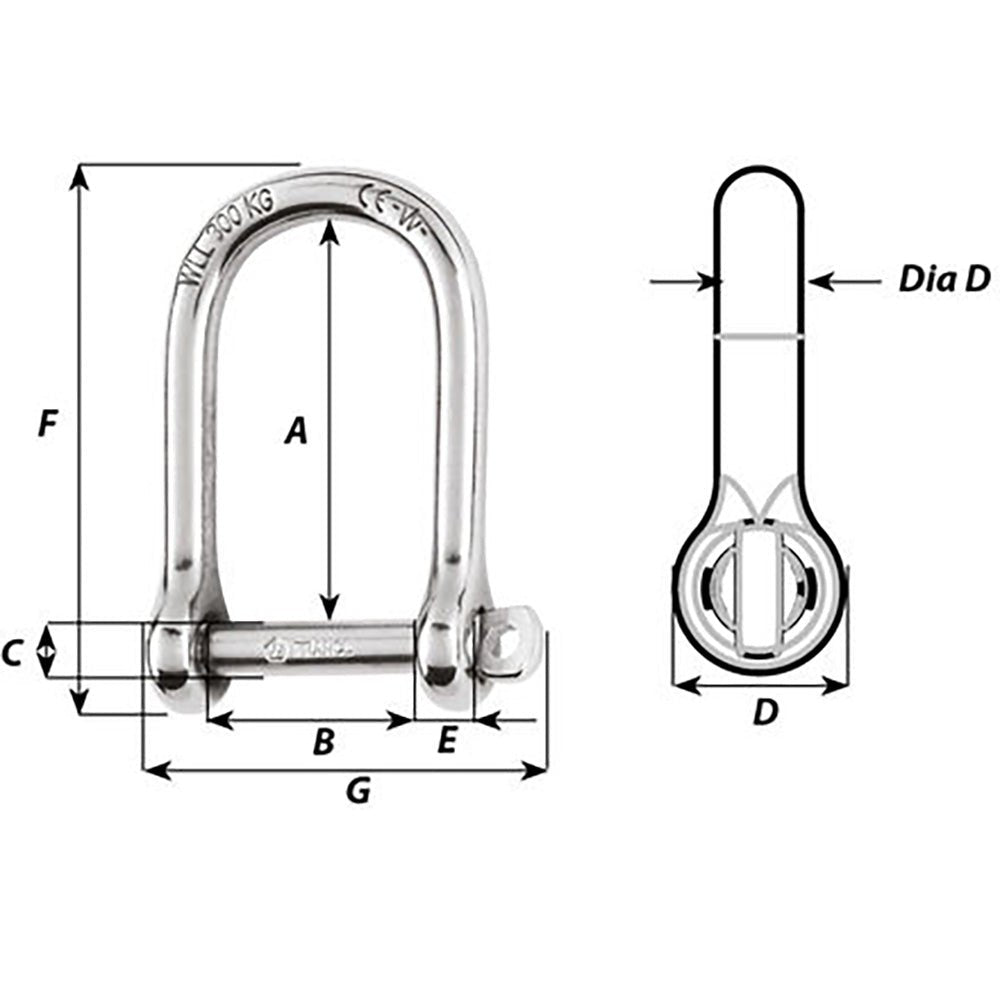

Dimensions:

• A: (inch) 2 1/4" / (mm) 57


• B: (inch) 1 17/64" / (mm) 32


• C: (inch) 5/16" / (mm) 8


• D: (inch) 43/64" / (mm) 17


• D diameter: (inch) 5/16" / (mm) 8


• E: (inch) 5/16" / (mm) 8


• F: (inch) 3 1/32" / (mm) 77


• G: (inch) 2 1/4" / (mm) 57

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
