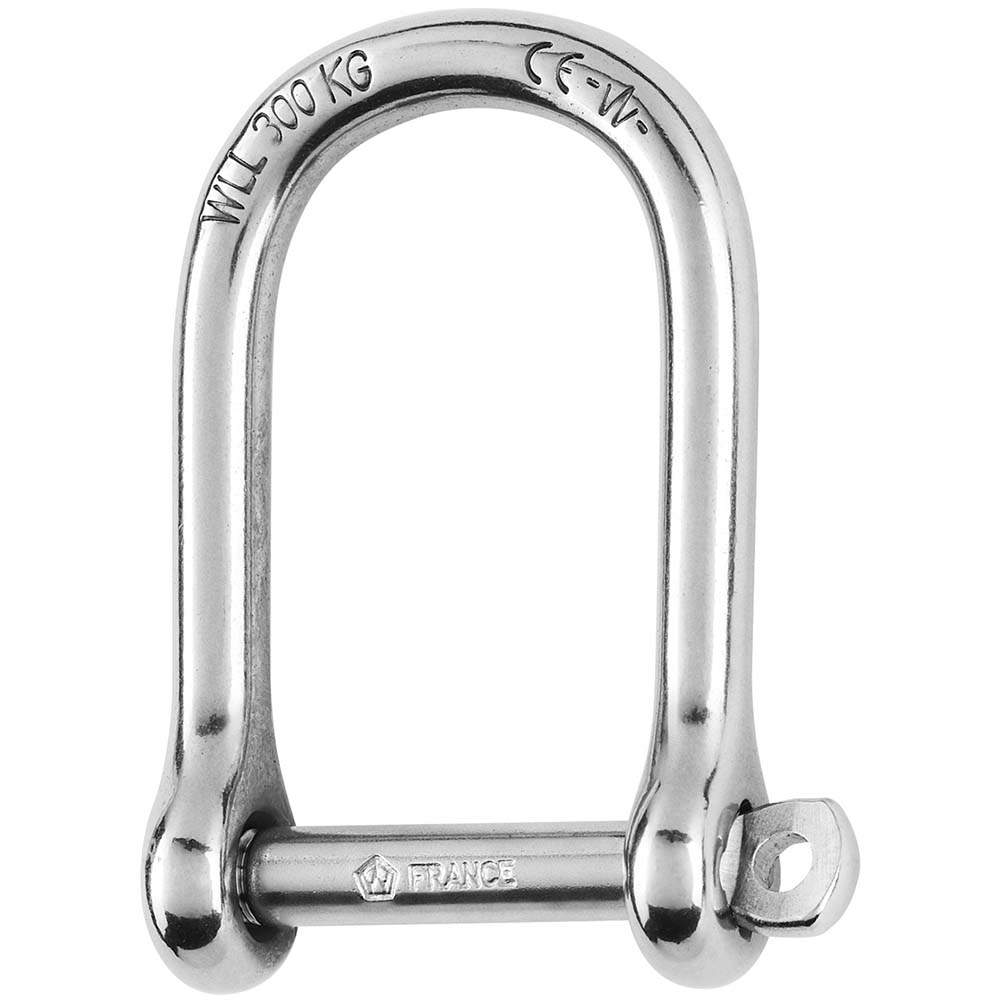

Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:


  • Self-locking large shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

  • WLL: only for industrial applications (lifting i.e)

  • CE marking and batch number

Applications:

  • For applications where a large opening shackle is required

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 550

  • WLL (lb) 480

  • Breaking load (lb) 2420

  • Weight (lb) 0.035

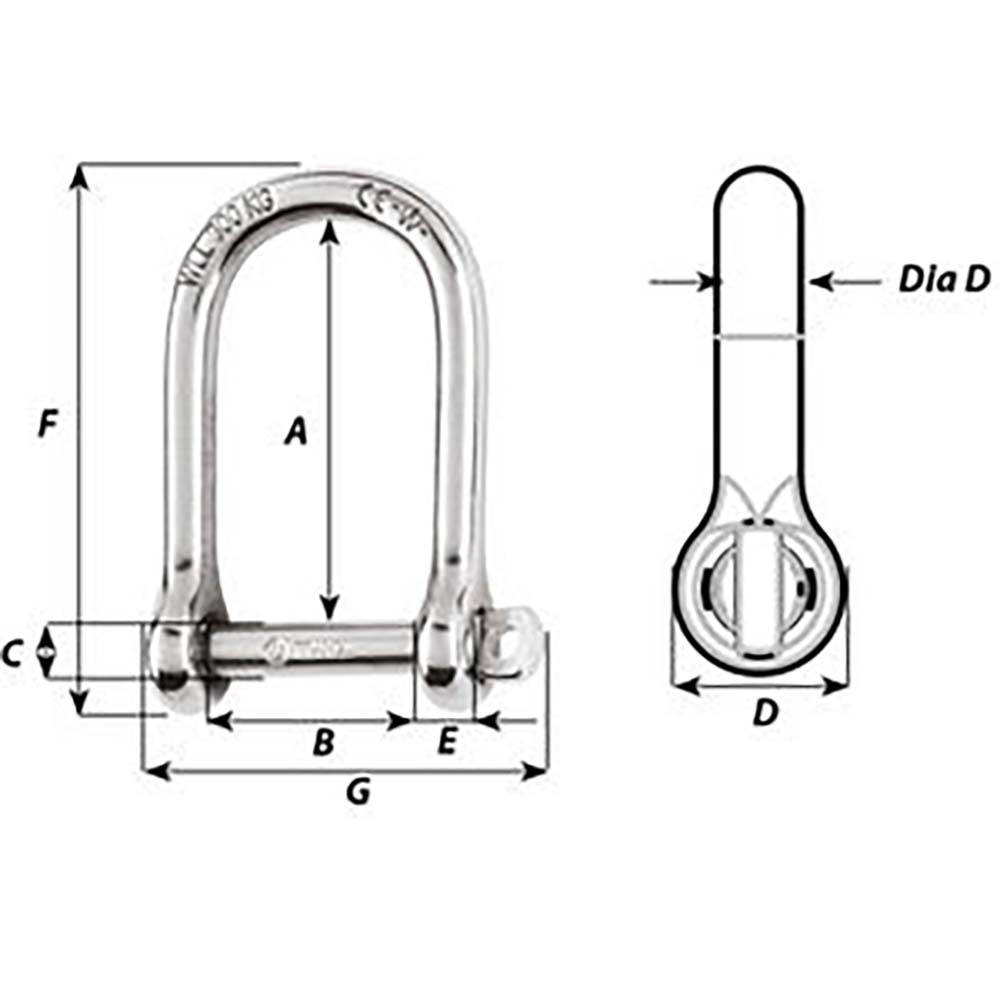

Dimensions (see 2nd image):


  • A (inch) 1-27/64"

  • B (inch) 25/32"

  • C (inch) 13/64"

  • D (inch) 7/16"

  • D diameter (inch) 13/64"

  • E (inch) 13/64"

  • F (inch) 1-57/64"

  • G (inch) 1-3/8"
Truck Freight: No
Oversized: No
  • Tipo Sailing
  • SKU 93108
  • Barcode 768536012620
