Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3/16"

SKU: 93099
(0)
Solo quedan 5
Low inventory - Hurry up!
$21.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

¿Te gusta? ¡Compártelo con tu equipo!

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"

Features:


  • Self-locking twisted shackle forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

Applications:


  • Perfect for application where a 90 angle twist setup is required

  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 1050

  • Breaking load (lb) 2420

  • Weight (lb) 0.035

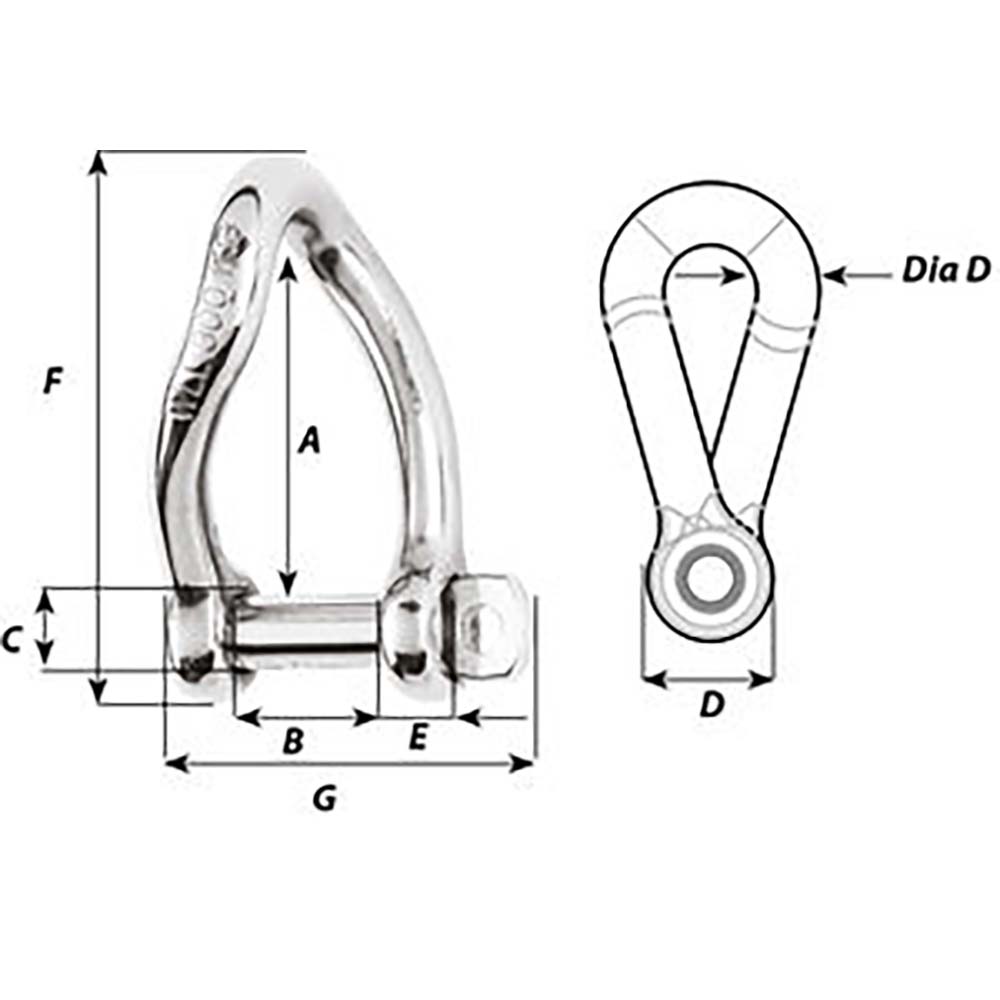

Dimensions (see 2nd image):


  • A (inch) 1-1/32"

  • B (inch) 25/64"

  • C (inch) 13/64"

  • D (inch) 25/64"

  • D diameter (inch) 13/64"

  • E (inch) 5/32"

  • F (inch) 1-1/2"

  • H (inch) 1-1/32"
Truck Freight: No
Oversized: No
  • Tipo Sailing
  • SKU 93099
  • Barcode 3587790012224
