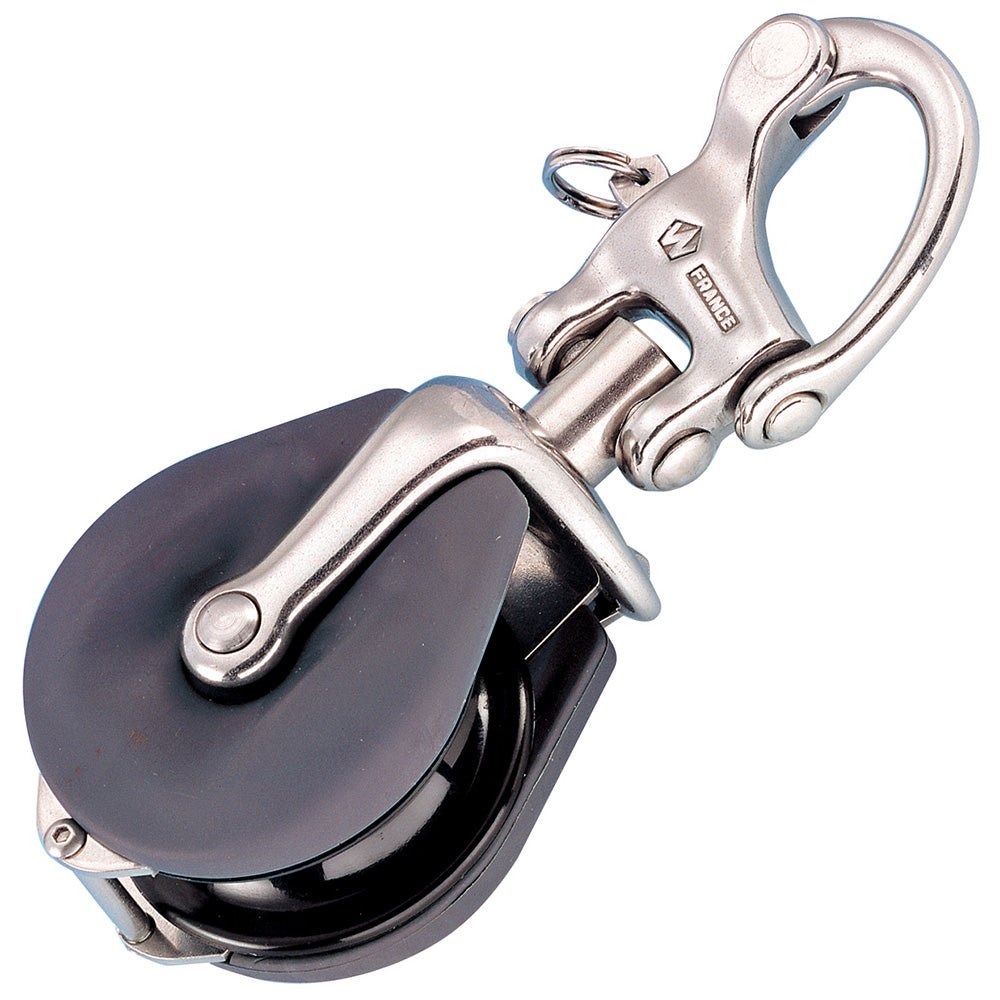

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

• Free rotation thanks to snap shackle


• Very strong closing system


• Easy opening by simply pulling on the plunger pin


• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets


• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm


• Elastomer molded cheeks


• Composite sheave

Specifications:

• Rope size: (inch) 15/32" / (mm) 12


• Length: (inch) 5 45/64" / (mm) 145


• Width: (inch) 2 21/64" / (mm) 59


• Thickness: (inch) 1 11/16" / (mm) 43


• Working Load: (lb) 1580 / (kg) 720


• Breaking Load: (lb) 2860 / (kg) 1300


• Weight: (lb) 0.56 / (g) 254

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
