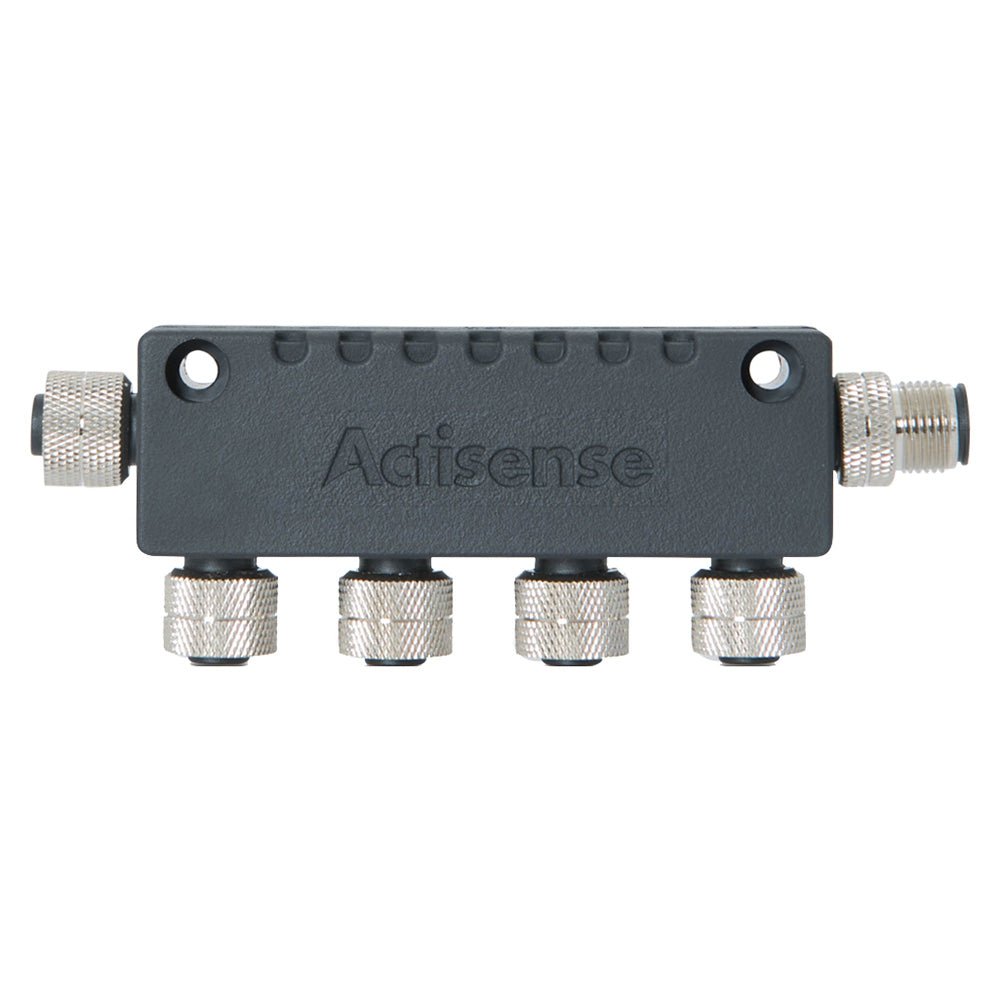

N2K Micro 4 Way T-Piece

The Actisense 4 Way T-Piece is for use where multiple drops or ports are required from the NMEA 2000 backbone. Its as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

• NMEA 2000 Approved


• RoHS Compliant

Specifications:

• Rated Current: 4A


• Rated Voltage: 60V DC


• Male Contact: Brass, gold plated


• Female Contact: Phosphor bronze, gold plated


• Contact Carrier: PA66 (30% Glass filled), black


• Contact Polarization: Standard M12 -A- polarization


• Mating Thread: M12


• Screw Cap: Brass, nickel plated


• O-Ring Seal: Rubber, Black


• Housing: TPU, flame retardant to UL94V-0, Halogen Free


• Internal Housing Shield: Copper Foil


• Weight: 105g


• Protection: IP67 (when mated)


• Operating Temperature: -20C to +70C


• Storage Temperature: -40C to +85C
