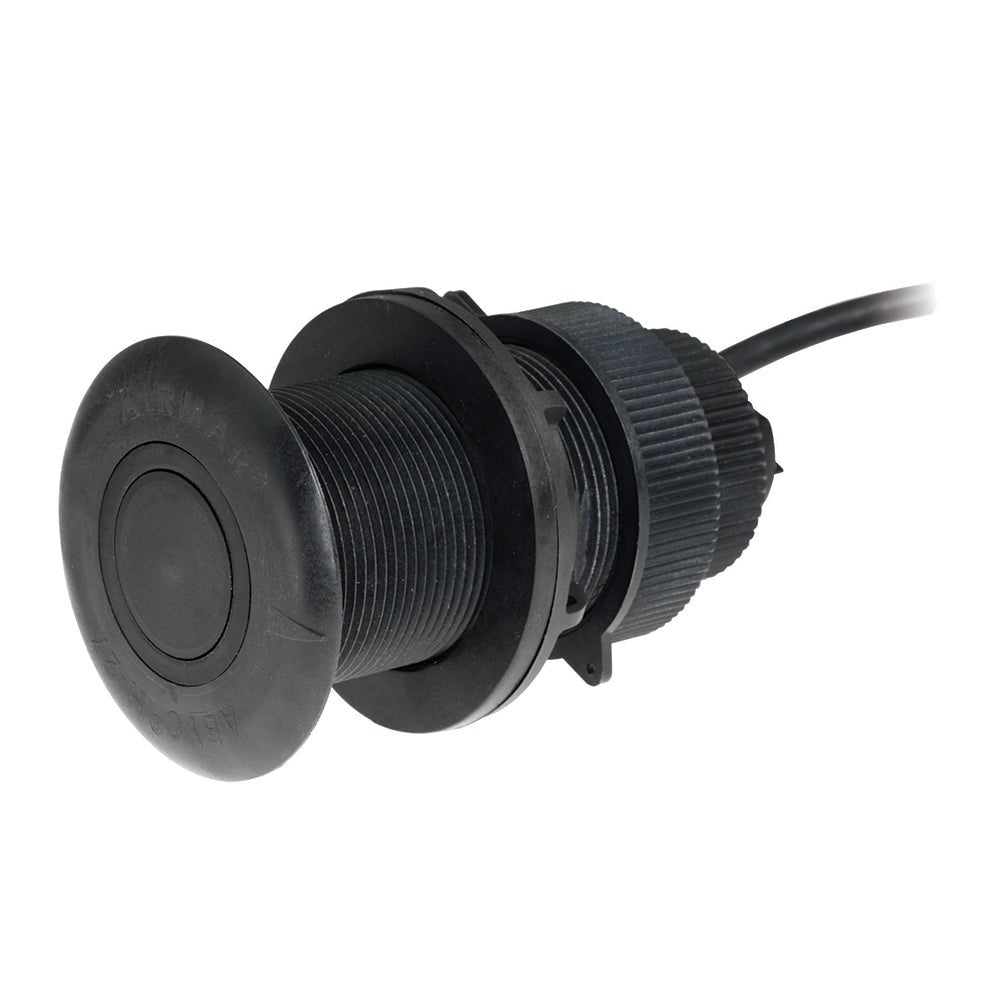

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20

• Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20


• Frequency: 235 kHz, Cone: 12, Power: 100 Watts RMS


• Connector: 5-Pin NMEA 2000

Features:

• Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing


• Tilted Element Transducer unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion


• Available in fixed 0, 12 or 20 tilt perfect for power and sail boat applications


• Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds


• Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity


• Smart Sensor with embedded microelectronics transducer element and signal processor are only millimeters apart


• 235 kHz frequency prevents mutual interference with other echo sounders on vessel


• Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

• Mount: Thru-hull


• Fixed Element Tilt Angle: 20 (for 16 - 24 hull deadrise)


• Housing Material: Plastic


• Connector: 5-pin NMEA 2000


• Cable Length: 20 ft.


• Frequency: 235 kHz


• Cone: 12


• Power: 100 Watts RMS


• Depth Sensor Range: 1.6 - 594 ft.


• Acoustic Window Material: Urethane


• Compatible Hull Materials: Fiberglass or metal


• Hole Diameter for Installation: 2"


• Dimensions: 4.92" H x 2.94" OD
