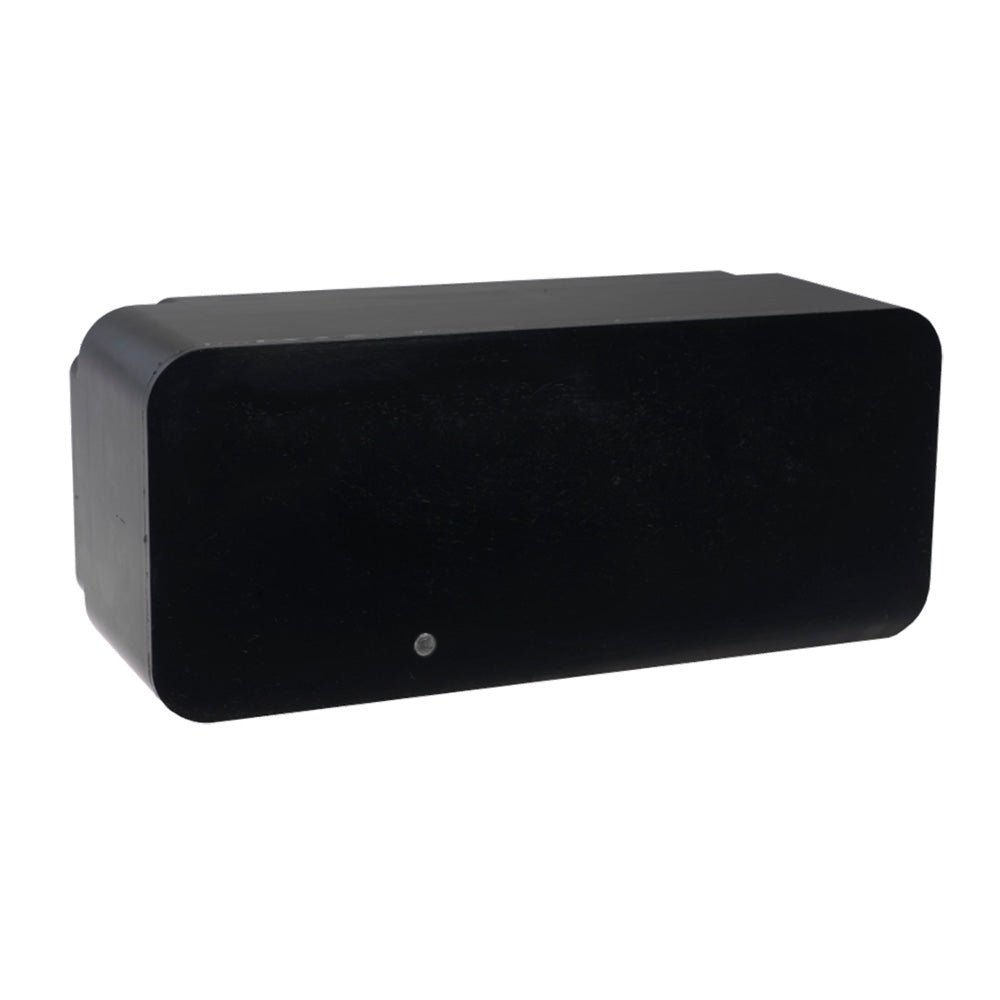

PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector

Get more coverage under your boat with Airmars unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500').

The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmars dual-frequency, Chirp-ready transducer with wide-beam coverage.

Features:

• The depth and fast-response water-temperature sensor


• 2 kW of power for great deep-water performance from the low frequency


• 2 kW low frequency: 38 to 75 kHz


  • 19 to 10 port-starboard beamwidth


  • 10 to 5 fore-aft beamwidth


  • Maximum depth of 1,829 m (6,000')






• 1 kW high frequency: 150 to 250 kHz


  • 25 constant beamwidth


  • Maximum depth of 152 m (500')






• 137 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth


• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation


• High wide beamwidth yields more coverage for detecting fish in the upper-water column


• Urethane housing designed for custom mounting in a cavity


• Also available in an external (R109LHW) mount


• Exclusive Xducer ID technology

Specifications:

• Weight: 13.6 kg (30 lb.)


• Recommended Boat Length:12 m (40') and above


• Hull Material:Solid fiberglass only


• Hull Deadrise:Accommodates any deadrise angle based on custom cavity construction


• Acoustic Window:Epoxy/urethane


• Transducer Element: 16 internal broadband ceramic assemblies
