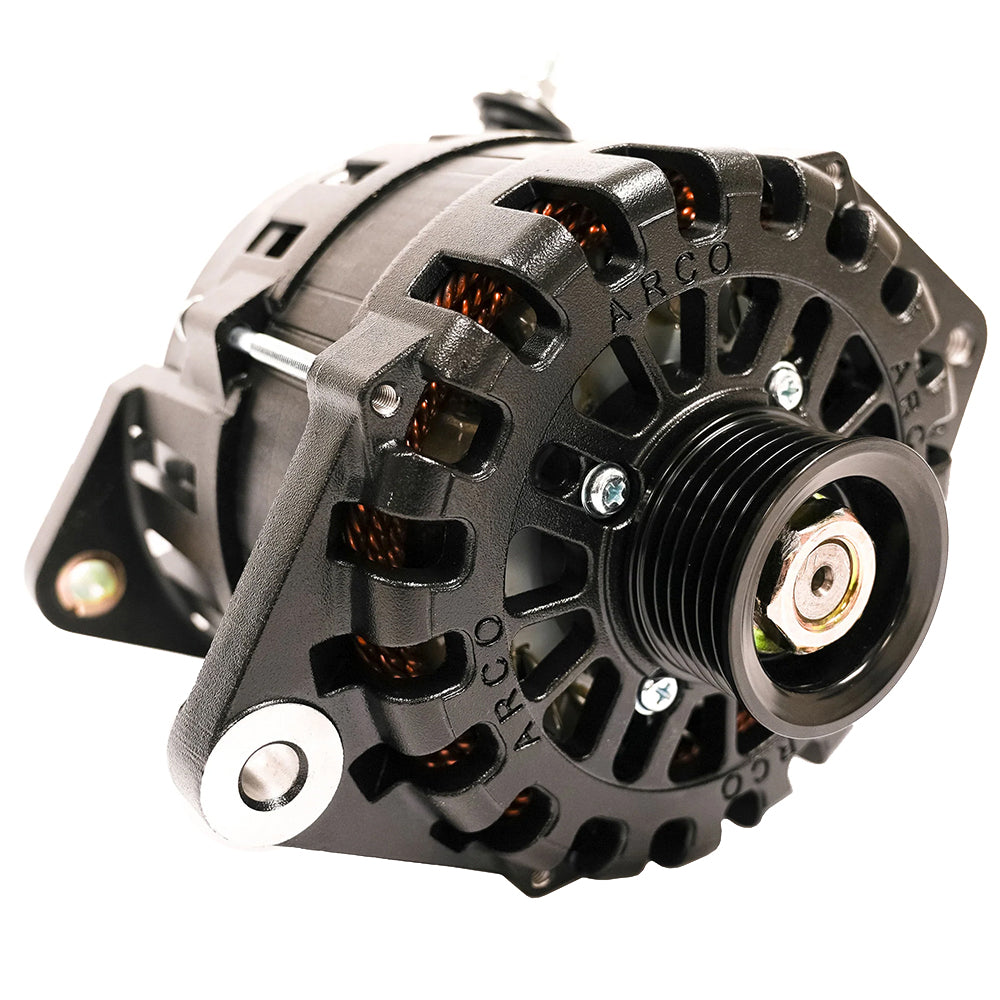

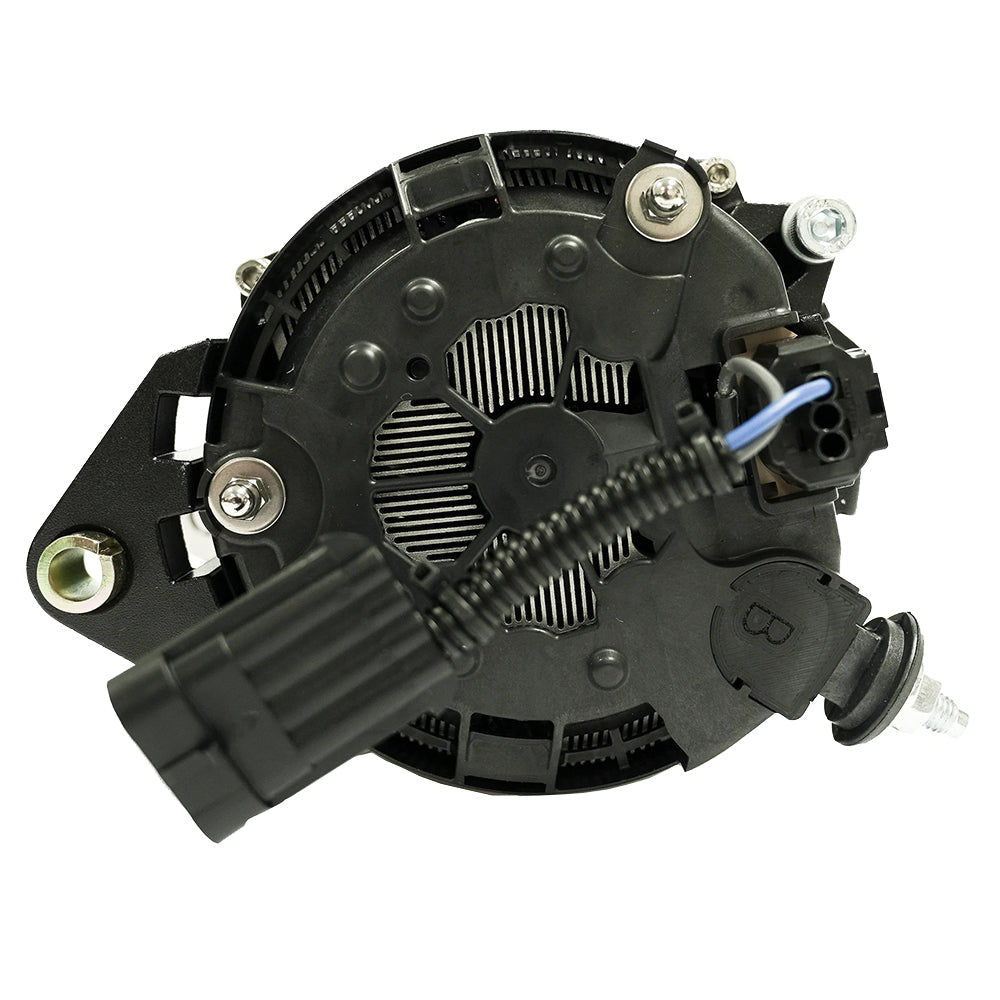

Zeus A225S 3.15 Alternator with Isolated Ground (Common Rail) Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Models are available with an internal/external voltage regulator.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 130mm


• Frame Size - Small


• Weight - 12 lbs/5.4 kg


• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)


• Output Voltage - 14.1v (Default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 254 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps


• Max Continuous Operating Temperature - 110C / 230F

Mounting Application:

• Must be used on Yanmar Common Rail introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110)
