7623

Manual Control: Yes
Coil Voltage: 24v

Features:

• Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

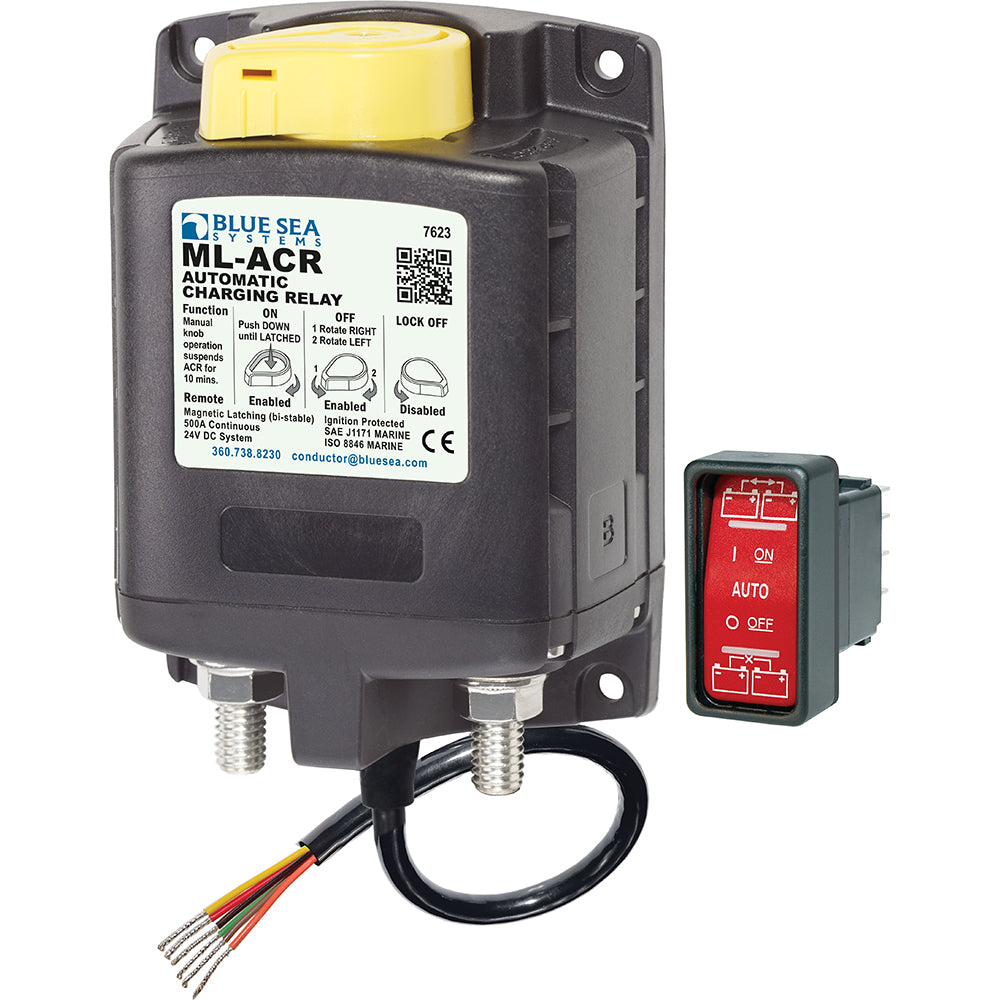

• Includes ML-Series Remote Control Contura Switch PN 2146




• 500 Ampere continuous rating




• Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state




• Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics




• Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output




• Senses charging on two battery banks




• Supports high-output alternators up to 500 Amps




• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation




• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance




• 7/8" (22mm) stud length accepts multiple cable terminals




• Label recesses for circuit protection




• Silver alloy contacts provide high reliability for switching live loads
