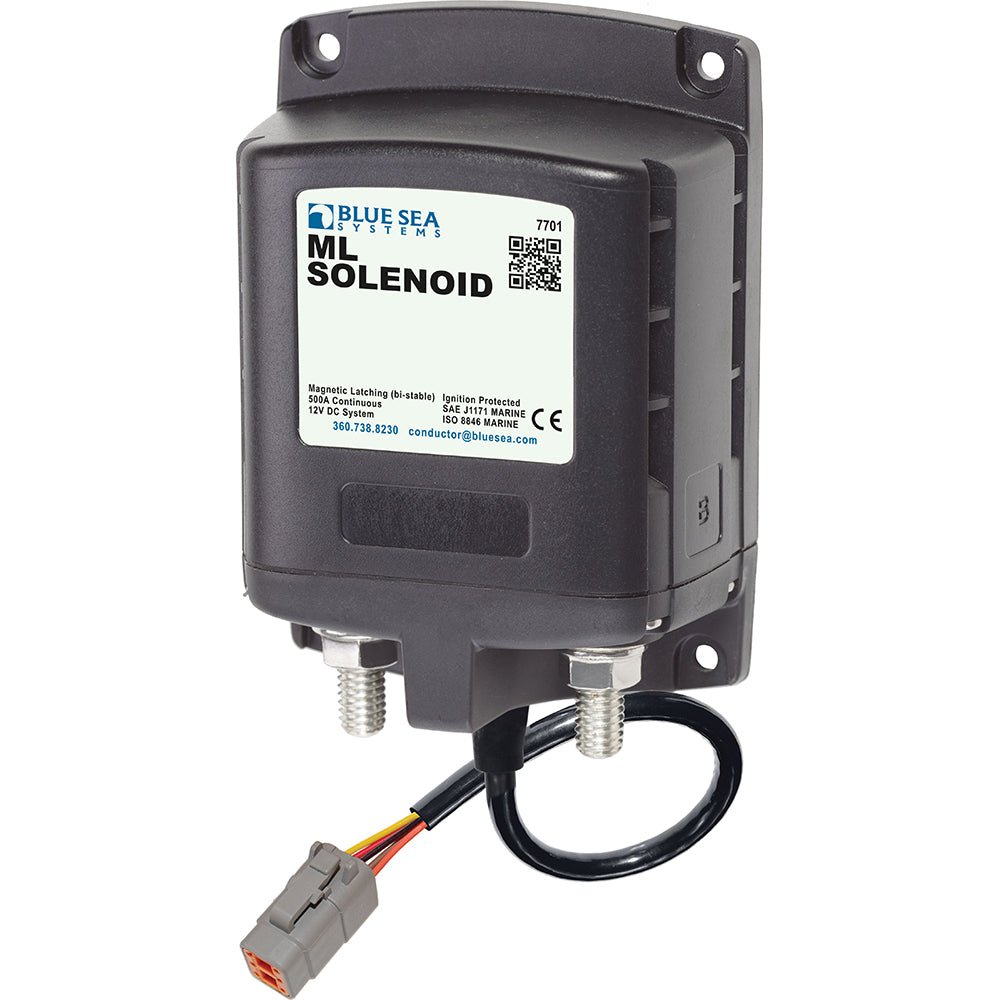

7701100 ML Solenoid 12V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine


• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch


• Silver alloy contacts provides high reliability for switching live loads


• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance


• 7/8" (22mm) stud length accepts multiple cable terminals


• Label recesses for circuit identification


• Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

• Control Circuit Connection: Deutsch DTM


• Nominal Voltage: 12VDC


• Manual Control: No


• Coil Function: Bi-Stable


• Mounting: #10


• Amperage Operating Current Continous: 0A


• Terminal Stud Torque: 140 in-lb (15.82 Nm)


• Continuous Rating: 500A


• Intermittent Rating: 700A (5 min)


• Cable Size to Meet Ratings: 2x (4/0)


• Stud Material: Tinned Copper


• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)


• Terminal Stud Length: 0.875" (22.23 mm)


• Terminal Stud Size: 3/8" - 16 (M10)


• Weight: 1.75lb (0.79 kg)
