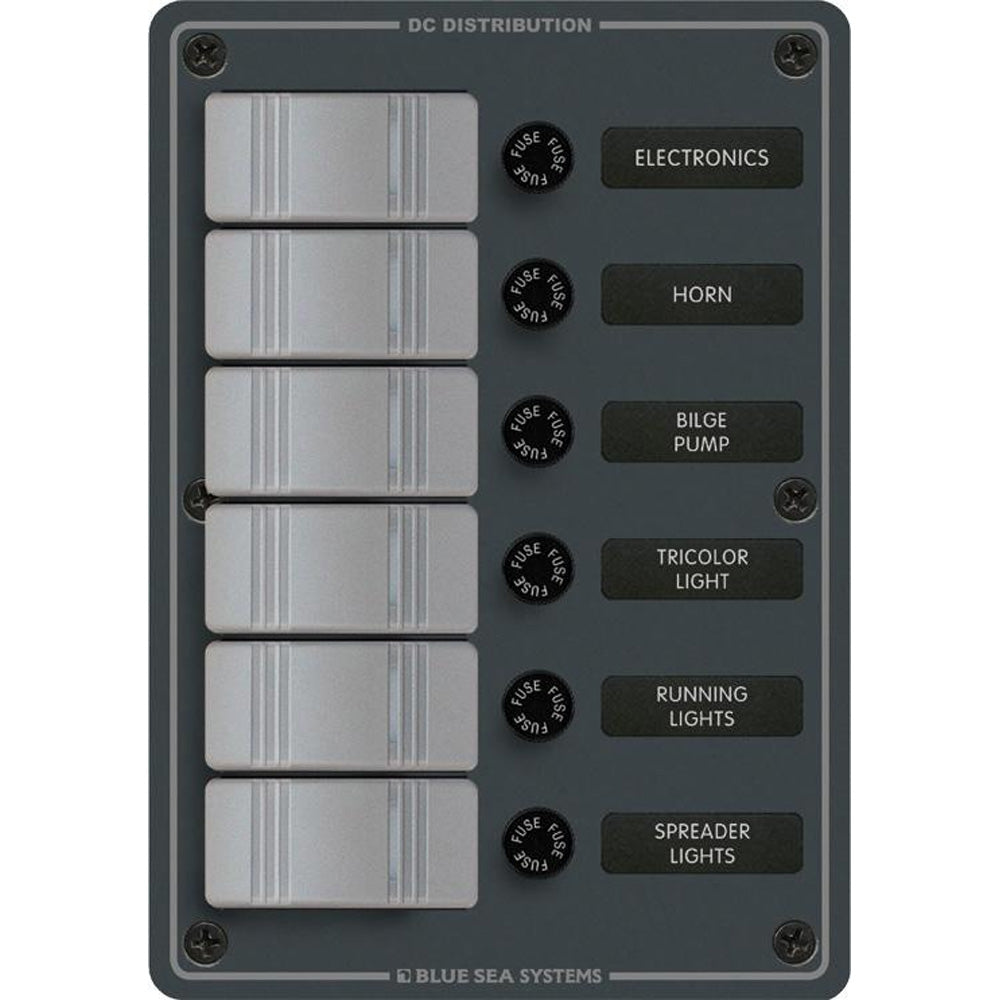

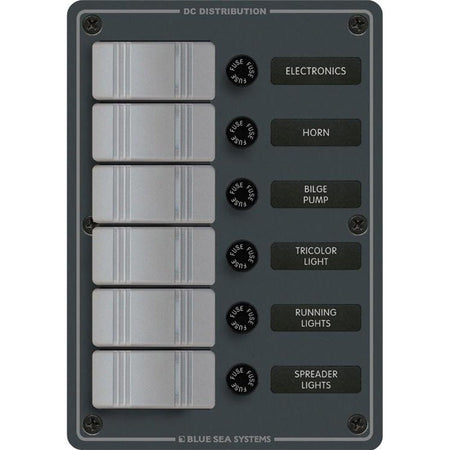

8053 Slate Grey - 6 Position - Vertical

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions


• Designed for flybridge and open cockpit applications


• ON-OFF Contura Switches


• ON indicating LEDs embedded in switches


• Watertight mounting gasket included


• Countersunk mounting holes throughout


• Two-part polyurethane slate gray finish


• Industry standard height and width


• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion


• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant


• Positions: 6


• Nominal Voltage: 12v / 24v DC


• Panel Cumulative Rating: 45A


• Switch Rating: 20A @ 12v DC / 15A @ 24v DC


• Height: 7.5"


• Width: 5.25"


• Depth: 3"

Included:

• (6) 5021 Panel Mount AGC/MDL Fuse Holder


• (1) 8030 Basic DC Panel Label Set - 30 Labels


• (6) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit
