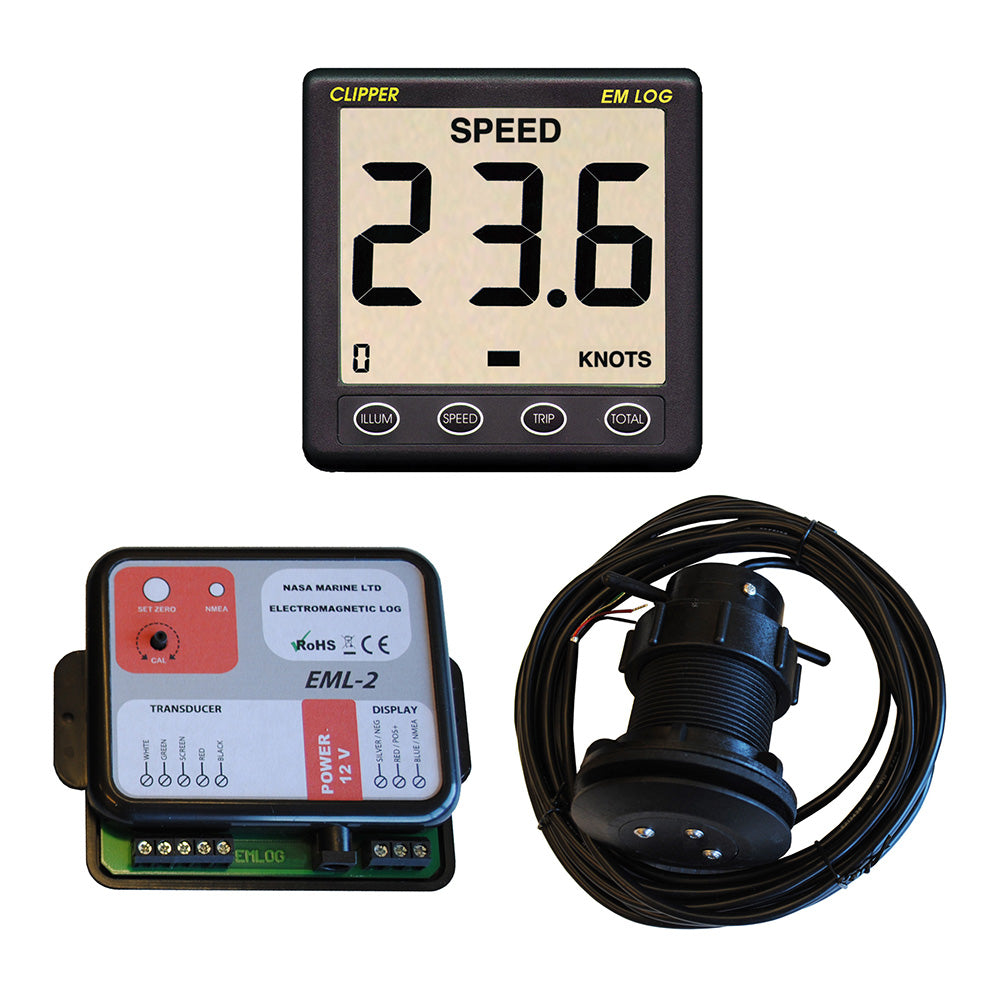

Electromagnetic 2 Speed Log Display Data Box Electromagnetic Log

The Clipper electromagnetic speed log measures the boats speed through the water without moving parts.

Robust and accurate, the sensor generates an alternating magnetic field below the boat and measures the resulting electric field produced by the boat moving through the water. It is designed for installation into most types of GRP hulls.

With excellent linearity and a resolution of 0.1 Knot, over the range of 0.2 to 40 Knots, the log sensor sends signals to a control box which then converts the sensor signal to boat speed, trip, and total distance. This data is transmitted in NMEA 0183 format to a Clipper EM Log display unit.

*NOTE NOT SUITABLE FOR METAL HULLS

Specifications:

• Clipper EM Log display


• 110 x 110mm industry standard square case


• NMEA 0183 input


• Speed in Knots


• Trip and Total logs in nautical miles


• Multi-level display backlighting
