FX+7000 Flying Sail Furler with Ratchet

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

• Adapted to sailboat from 16 to 20m (55 to 70 ft.)


• Code sail surface of 250m maximum (2690ft) (max 70m / 753ft staysail)


• Ratchet option Start Go included (working both clock or anti-clockwise)


• Unique captive quick-release pin


• Possible conversion for asymmetric Spinnaker


• Composite/carbon housing


• Maintenance-free units (sealed bearings)

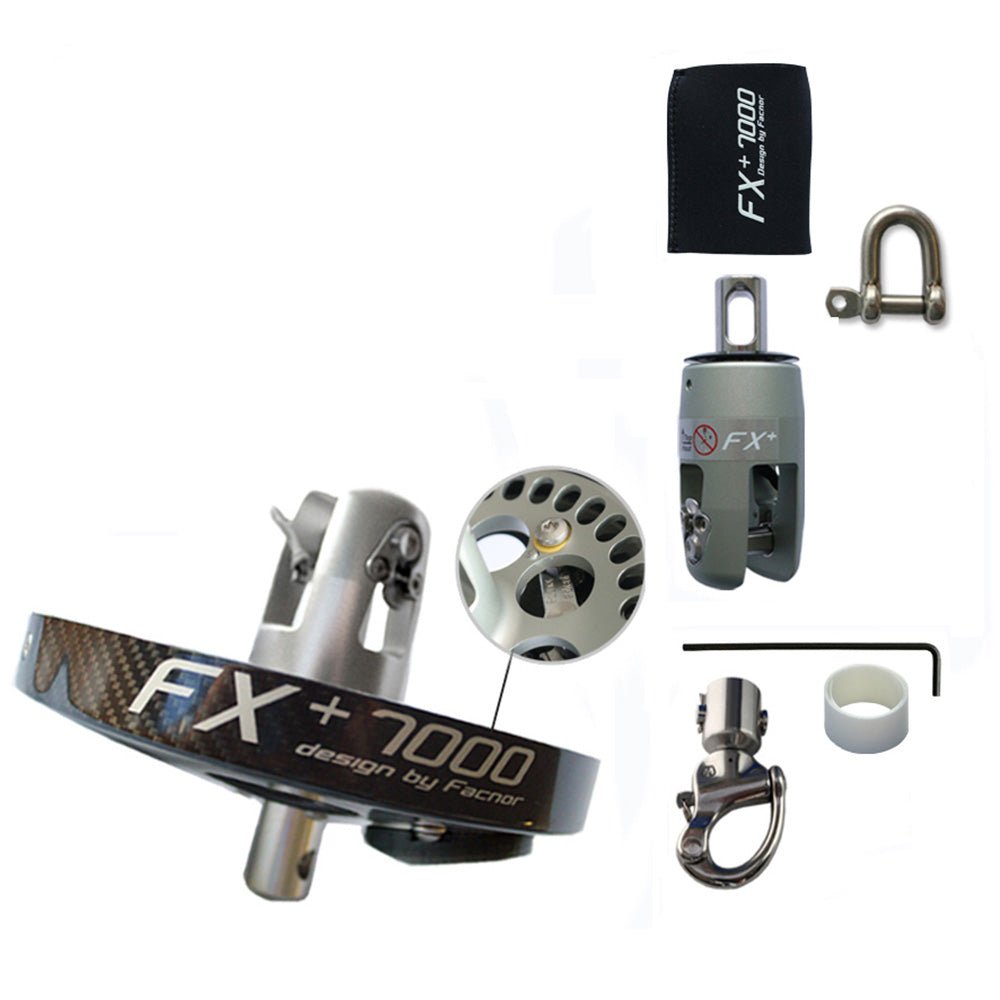

The Standard Kit of the FX+7000 Furler Includes:

• A ratchet in s/s duplex enabling a temporary stop when furling in and a self-locking both clockwise and anti-clockwise (Facnor patent)


• One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum


• One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking


• One snap shackle as the bottom drum attachment (Optional SSH+7000 solid sheave as an alternative)


• One shackle as the top swivel attachment (optional SB7000 2-to-1 block as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

• Monoblock's conception of the mechanisms for more sturdiness and long-lasting


• Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin


• Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling


• Is rotation transmitted through an anti-torsion luff rope optionalsliding inside the luff tape and fitted with a thimble on each end (FCI7000 s-s thimbles and FRC s-s clamps are also available)


• Easy installation of the furling loop (s-s guide + drum notch), discover Facnor Special GRIP loops for an efficient rotation of the drum, and the removable fairleads TSL25/28

Specifications:

• Weight: 23.44 kg


• Sailboat Length (feet): 55'-70'


• Code Sail Area (m): 250,00


• Code Sail Area (ft): 2690,00


• Staysail Area (m): 70,00


• Staysail Area (ft): 753,00


• Safe Working Load (tons): 7,00


• Standard Top Swivel Attachment: Shackle


• Standard Bottom Drum Attachment: Snapshackle


• Ratchet Option: Included


• Continuous Line Drum : 199,00mm


• Spliced Furling Line : 10,00mm


• Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 7000 top-down thimble.
