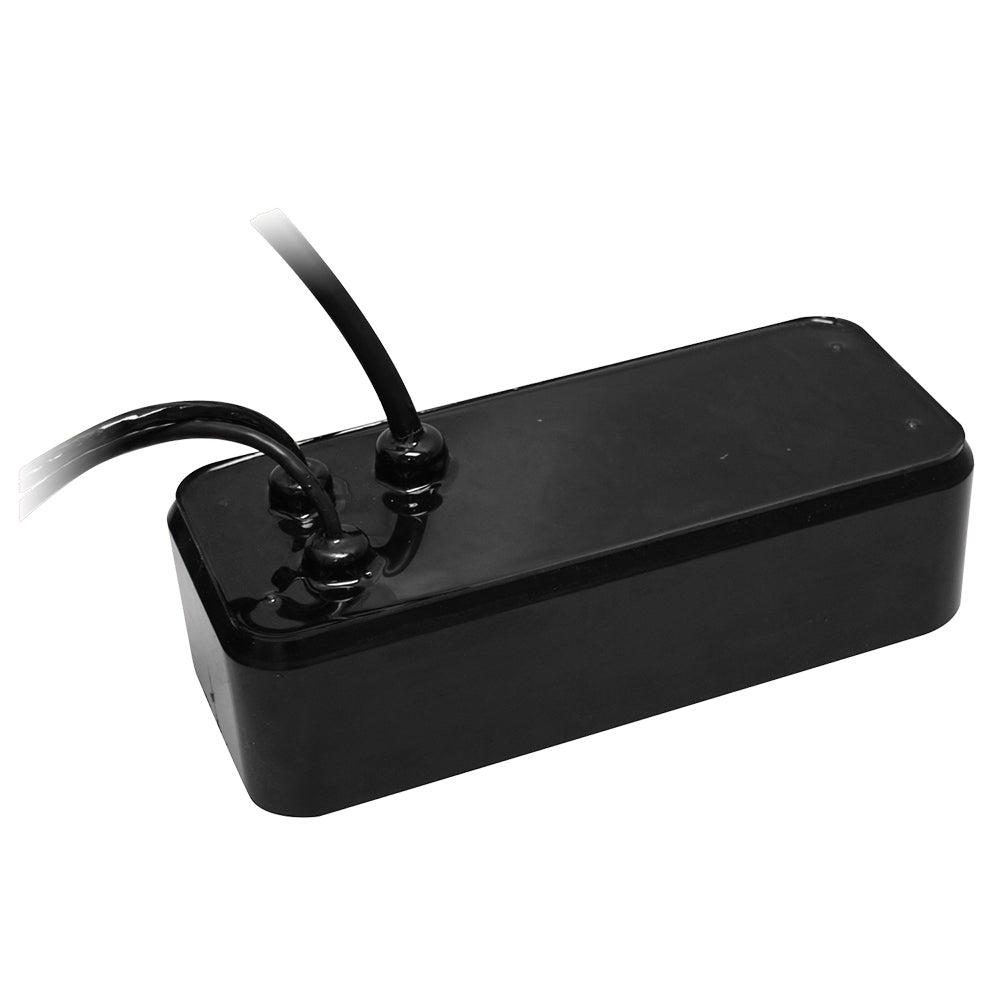

165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer

Pocket Mount Combination Transducer

This transducer has housing (12 LX 5 W X 3.5 H) that contains the DFF3D elements along with the same CHIRP elements contained in B265LH.

Features:

• DFF3D operating frequency 165 kHz


• LowCHIRPS from 42 kHz to 65 kHz, Beamwidth 25 to 16


• HighCHIRPS from 130 kHz to 210 kHz, Beamwidth 10 to 6


• Bottom discrimination and Accu-fish compatible (without TID)


• 12M Cables. Pigtail cable for DFF1-UHD, 7-pin connector and a pigtail cable for the DFF3D


• Recommended for a DFF1-UHD and DFF3D installation


• Built-in motion sensor


• Built in temp sensor
