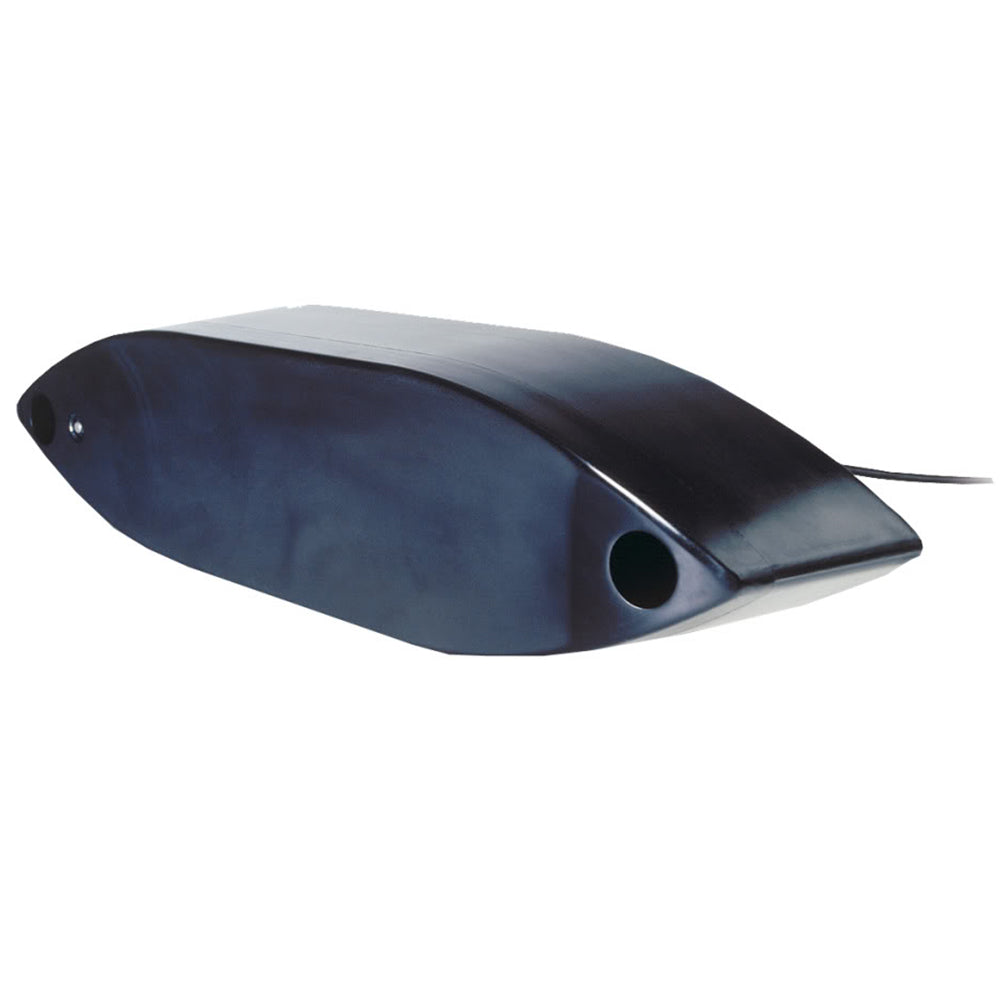

Airmar R109LM Thru-Hull Transducer - Bare Wires

Rely on Airmars broadband transducers for your ultimate fishing mission. Whether youre a commercial fisherman, charter captain, or tournament angler, theres a new game in town! Chirp transducers enable bottom detection down to 3,000M (10,000) with 5 to 10 times greater detail and resolution so precise its possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 107 kHz of total bandwidth in just one installation, saving customers time and money.

As the HARD CORE model in the Chirp Thru-Hull product line, the R109LM Chirps across the following bandwidths:

LM Model - Low Frequency 38-75 kHz/Medium Frequency 80-130 kHz

Features:

• Depth fast-response water-temperature sensor


• LowCHIRPS from 38 kHz to 75 kHz 19 to 10 port-starboard beamwidth (10 to 5 fore-aft beamwidth)


• MediumCHIRPS from 80 kHz to 130 kHz 13 to 8 beamwidth


• 87 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 38, 50, 88, and107 kHz plus everything else in the bandwidth


• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)


• Urethane transducer housing with High-Performance Fairing


• Boat Size: 12 m (40) and above


• Hull Type: Fiberglass, wood, or metal


• Exclusive Xducer ID technology

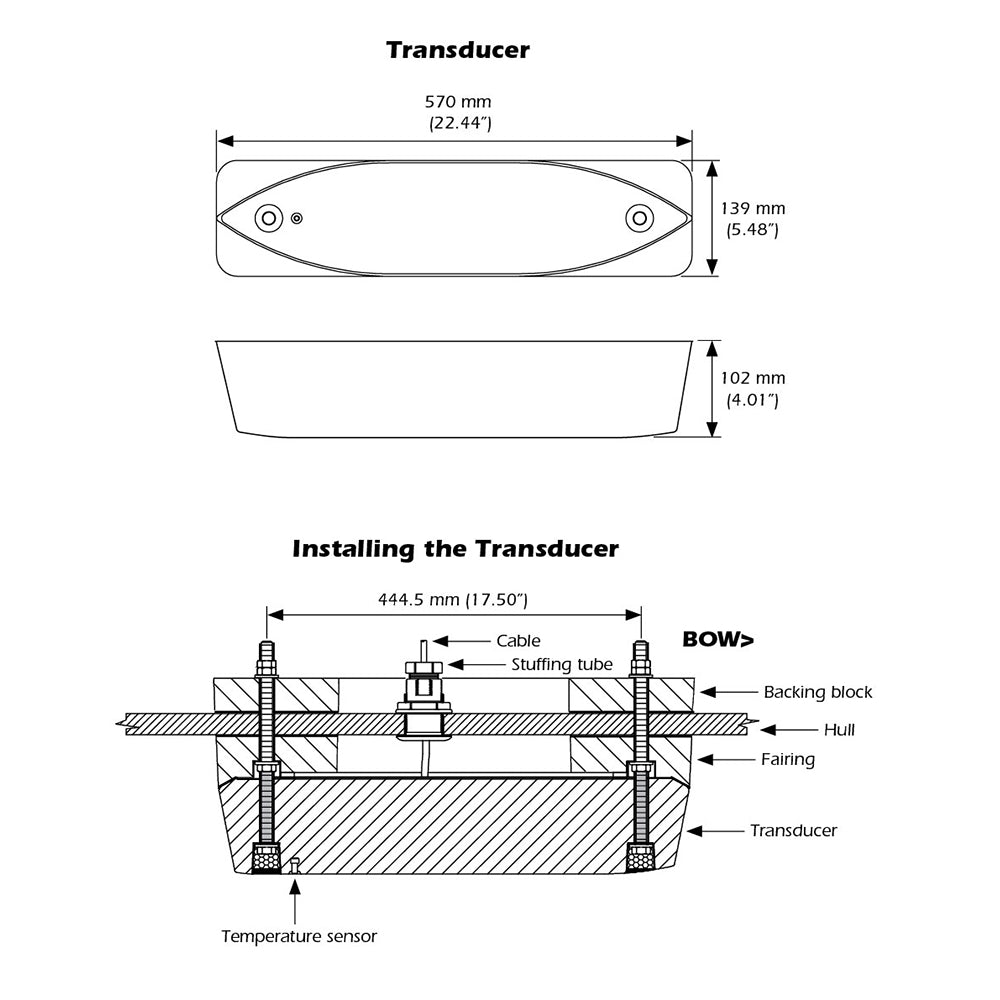

Specifications:

• Hull Deadrise: 0 to 25


• Acoustic Window: Epoxy/urethane


• Weight: 15.1 kg (33.3 lb)
