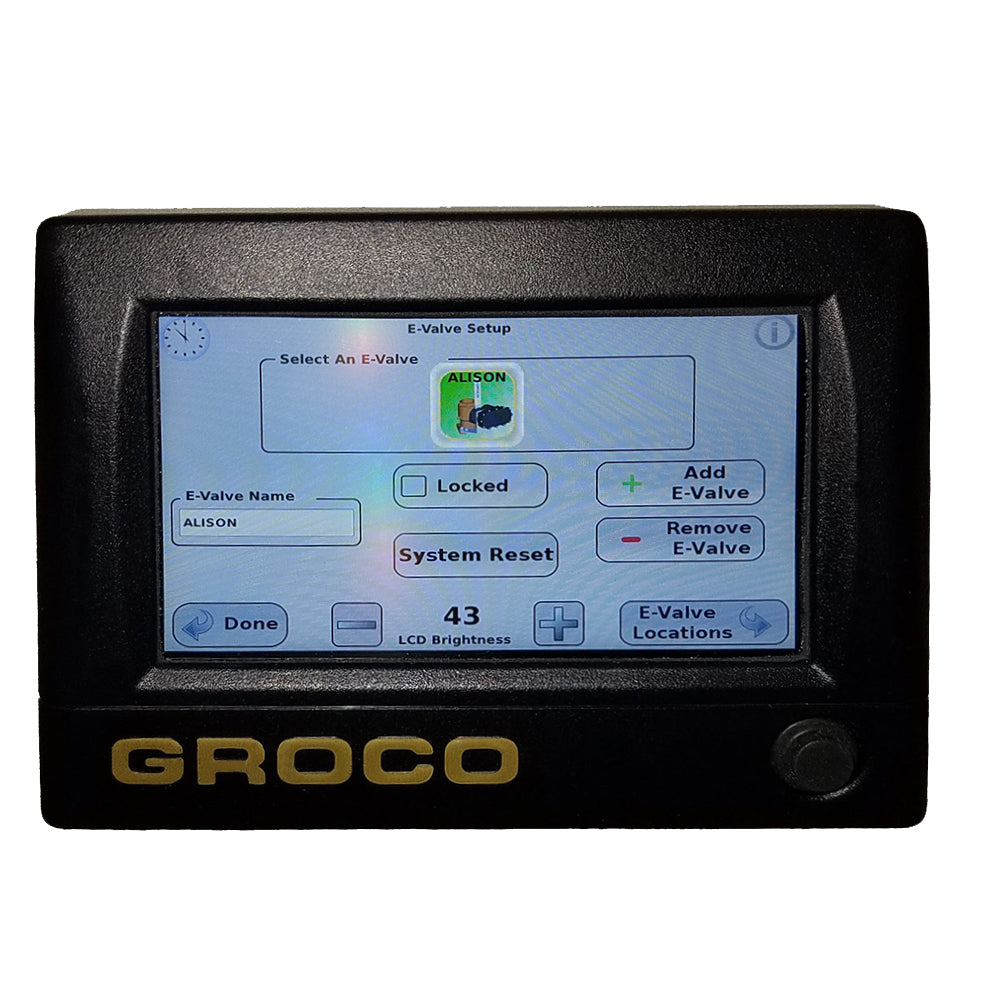

LCD-5 Monitor Full Color 5" Touchscreen

GROCO's E-Valve LCD-5 is a touchscreen LCD monitor that allows wireless, helm-based remote control of GROCO E-Valve motorized seacocks. Use this customizable touchscreen display to monitor and control seacocks as well as the GROCO SSA flow monitor system.

Seacock control functions are color-coded and include Exercise All, Close All, Open All, Lock, and Automatic. Monitor may be flush or bracket mounted (bracket is included).

Features:

• Customize the vessel view screen with your boat and its component locations


• Exercise All function (shows moving valve handles) lets you operate all seacocks to prevent marine-growth build-up; orange icon indicates a valve operating improperly


• Close All function (red) closes all open E-valves


• Open All function (green) opens all E-valves that are not locked or are not marked Automatic


• Lock function (blue) can lock E-valves in either the open or closed position, both mechanically and electrically


• Automatic function (yellow) opens a specific E-valve when the connected equipment is turned on, and closes it when the connected equipment is turned off


• Dimensions: 4-3/8" H x 4-1/2"
