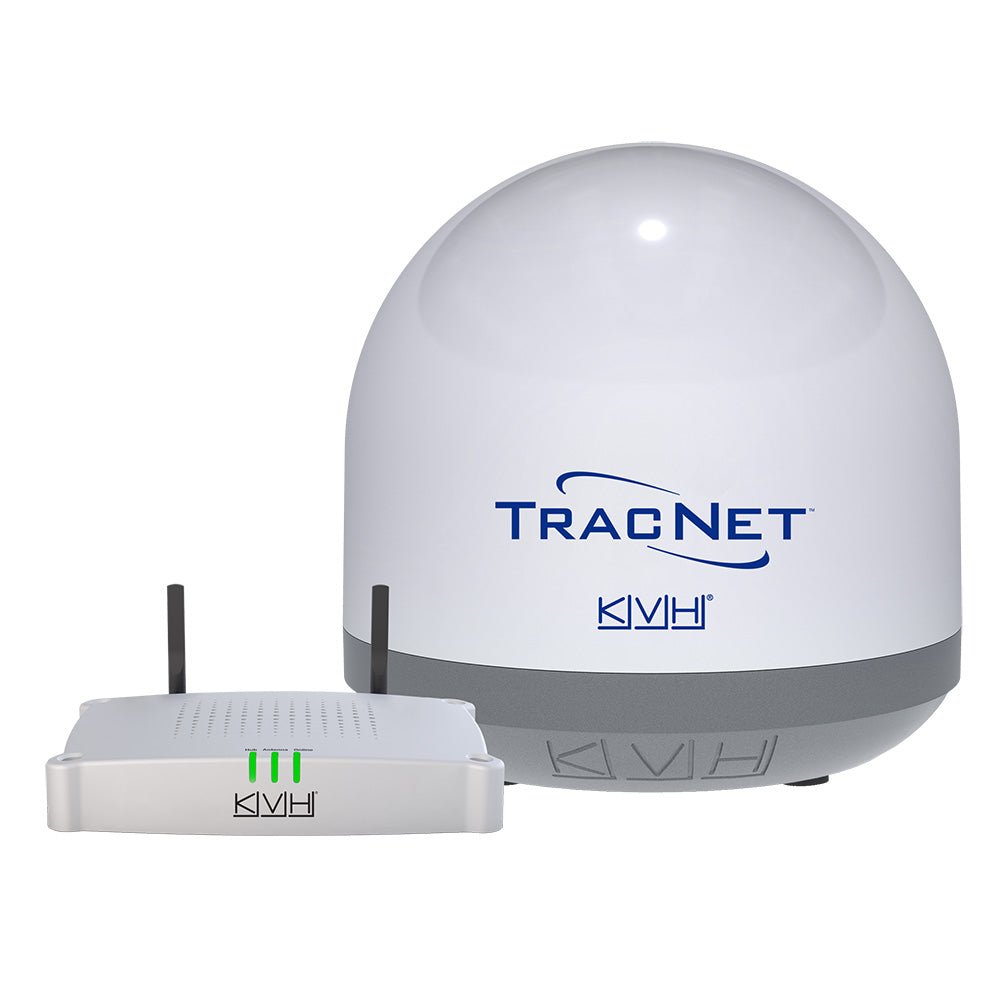

TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub

Are you looking for faster and more affordable data to support business and personal connectivity Would you like to experience home-like content streaming on your boat Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Features:

• 5G/LTE and WAN WiFi in a compact radome


• Integrated cellular//WiFi system with intelligent hybrid switching


• High-gain 5G cellular antennas for extended offshore coverage


• Single-cable, DC-powered maritime design (TracNet Hub)


• Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports


• Data plans starting as low as $1/GB (subject to change)


• Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)


• Intelligent switching among 5G, LTE, and WiFi with integrated onboard router


• Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb


• Marine-grade, compact antenna


• Single-cable antenna installation with ultra-efficient DC power design


• Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)


• Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more


• Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi


• 4-port ethernet router


• Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access

Technical Specifications:

• Dome Dimensions - 13.5 (Dia.) x 13.1 (H)


• Dome Weight - 8 lbs


• Dome Operating Temperature - -25C to +55C (-13F to +131F)


• Dome Survival Temperature - -30C to +70C (-22F to +158F)


• Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN


• Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option


• Power Consumption (Nominal/Max) - 16W/22W


• BDU Operating Temperature - -15C to +55C (+5F to +131F)


• BDU Survival Temperature - -25C to +70C (-13F to +158F)


• Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN
