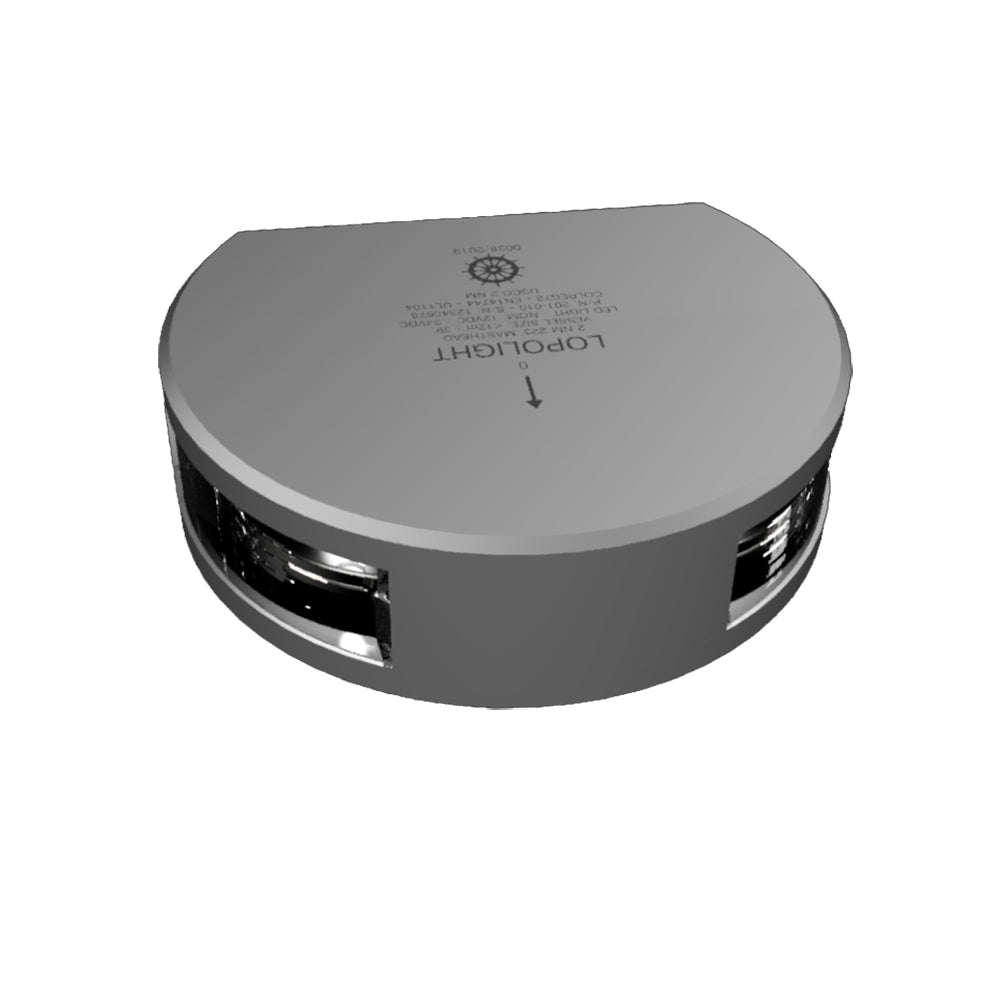

225 Masthead Light - Single - Silver Housing - Vertical Mount

This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72


• EN14744


• IEC 60945


• USCG (UL1104)

Specifications:

• Vessel size: <12m (<39.4)


• Visibility: >2 nautical miles


• Intensity: >5,4cd


• Power consumption: 2,5 Watt; Current: 0,21A @12 VDC - 0,10A @24 VDC


• Operating voltage: 10 - 32 VDC


• Number of LEDs: 2


• Light colour: White


• Operating temperature: -25C to +55C


• IP rating: IP68


• Mounting: Vertical
