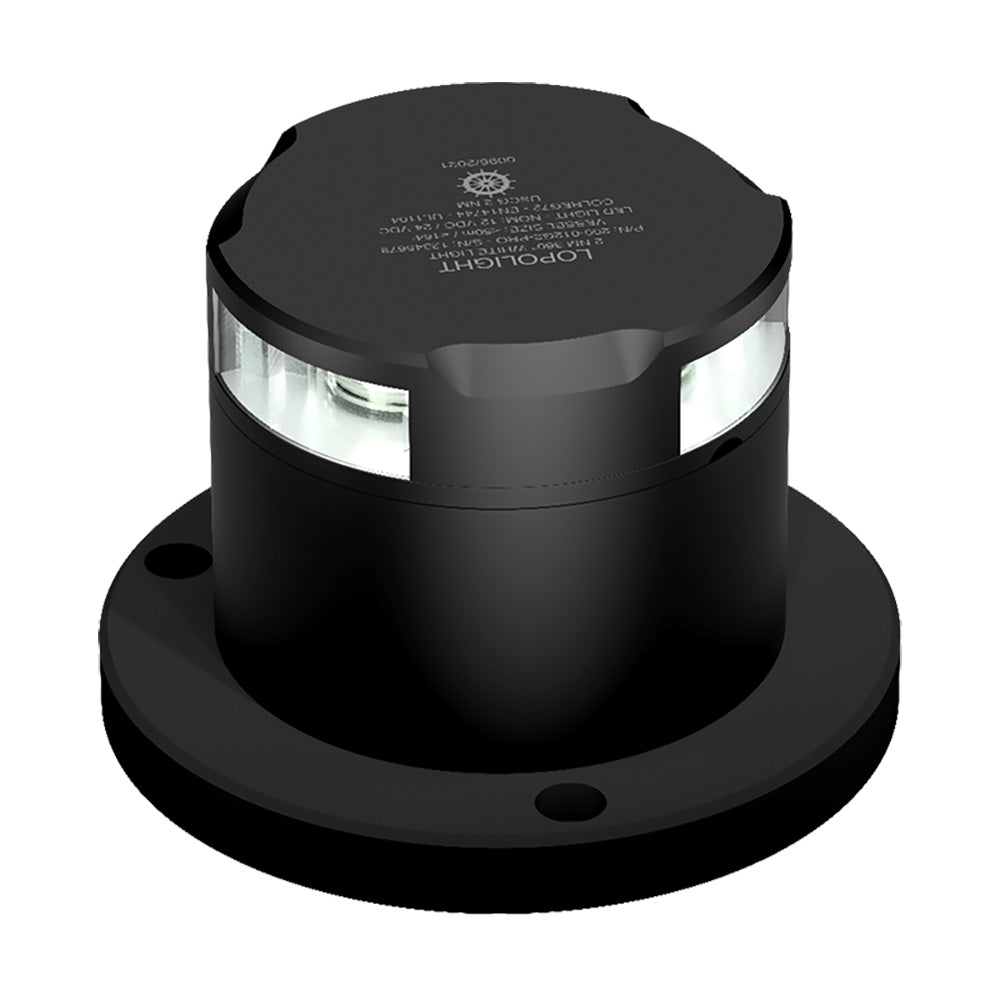

2nm 360 Anchor Light Pro - Black Anodized - White Light

Features:

• Horizontally mounted on POM base (IP68)


• Cable direction side


• Includes HDPE base plate


• Quality cable glands - 2 sizes included:


• 7-13mm (1/4"-1/2") cable diameter


• 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Mounting: Horizontal


• Visibility: 2nm


• Intensity: >5.4cd


• Power draw: 2W, 6W


• Operating Voltage: 10-32VDC


• Operating Temperature: -25 degrees C to 55 degrees C


• Vessel size: Under 12M,12-20M,20-50M


• Min. feed wire gauge: 0.5mm2 AWG22


• IP Rating: IP68


• Connection: Plug Connector


• Weight (Kg): 1 Kg


• Weight (oz): 35.27 oz


• Materials: Black hard coat anodized aluminum 50, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• Included in the Package: 1 Navigation light, Installation guide
