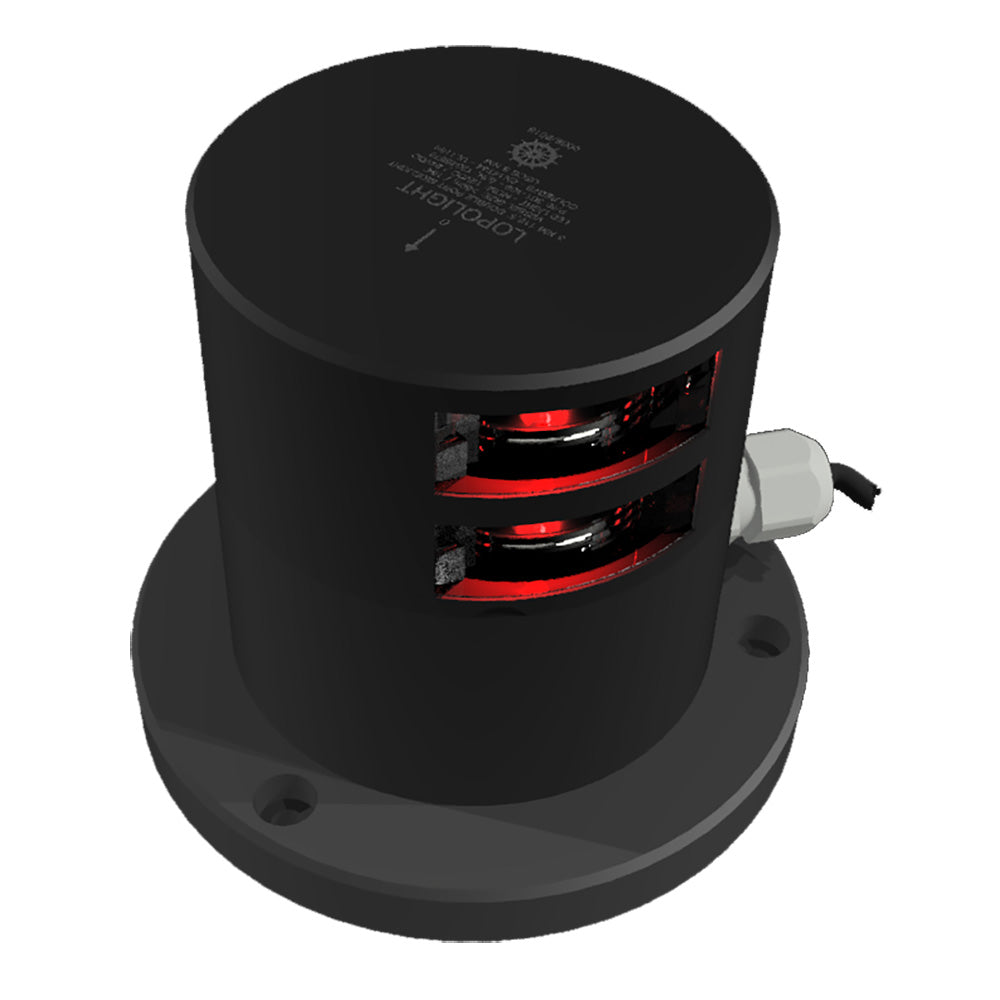

3NM Double Stacked Ice-Class Port Light

This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter


• 7-13mm (1/4-1/2 in.) cable diameter


• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438014114


• Light Color: Red


• Intensity: >15cd


• IP rating: IP68


• Connection: Plug connector


• Visibility: 3NM


• Materials: Black hard coat anodized aluminum 50, PMMA lens, A4 stainless steel screws, epoxy, polyurethane


• Current Consumption (mA @ 12VDC): 153


• Current Consumption (mA @ 24VDC): 92


• Dimensions Metric: 92,5mm x 125,5mm


• Dimensions Imperial: 3.6" x 4.9"


• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.


• Operating Temperature: -60C to 55C


• Operating Voltage: 20-32VDC


• Power Draw (W): 2,2


• Vessel Size: Over 50M


• Min. Feed Wire Gauge: 1.5mm2 AWG18


• Weight (kg): 1.4 Kg


• Weight (oz): 49.38 Oz
