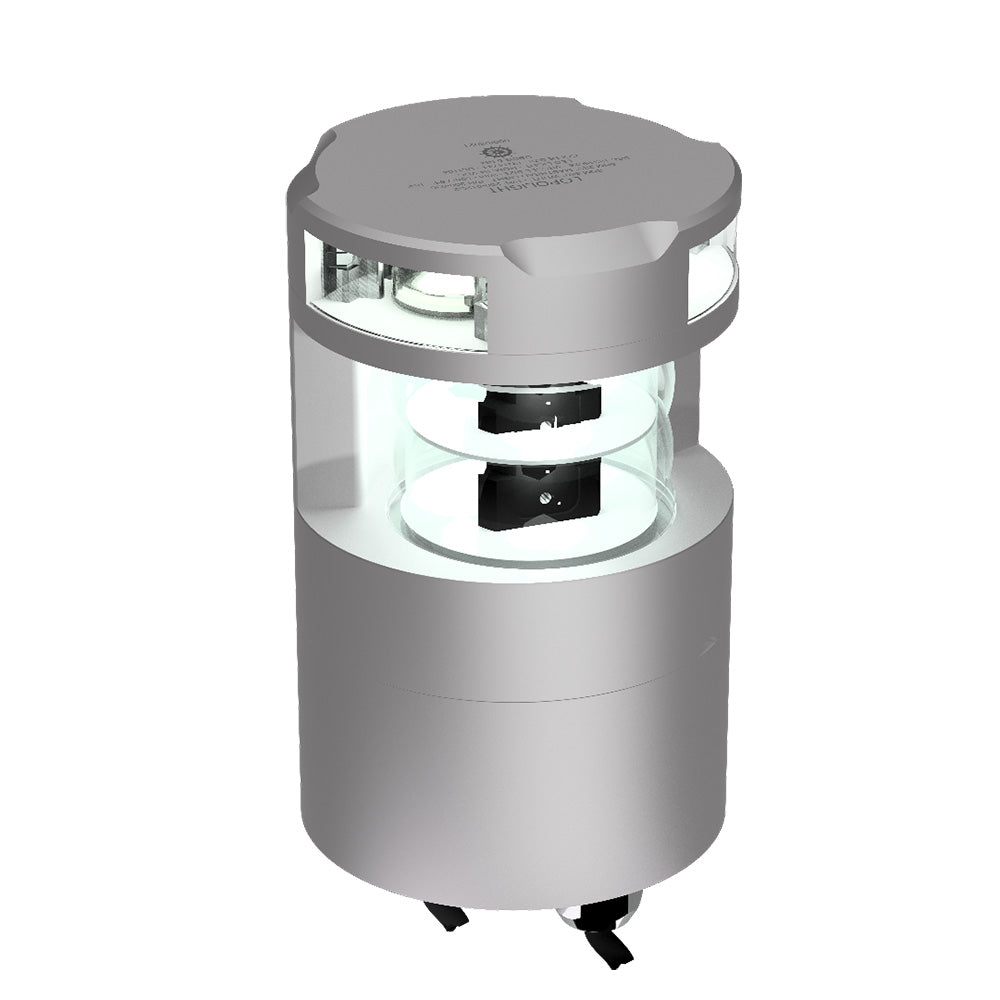

6nm Double Masthead + 3nm 360 Degree Light

6nm dbl Masthead + 3nm 360 degrees, white, silver anodized. Horizontal mounted on a cable-down aluminum base (P/N 400-035).

Specifications:

• Light Color: White


• Dimensions metric: 92,5mm x 147mm


• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support


• Intensity: >94cd


• Dimensions imperial: 3.6 x 5.7


• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Visibility: 3nm


• Operating temperature: -25C to 55C


• Mounting: Horizontal


• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• Operating Voltage: 20-32VDC


• EAN: 5704438013537


• IP rating: IP68


• Power draw (W): 13


• Connection: Plug connector


• Current consumption (mA @ 12VDC): 0


• Current consumption (mA @ 24VDC): 580


• Vessel size: Over 50M


• Min. feed wire gauge: 0.5mm2 AWG22


• Weight (Kg): 1.45 kg


• Weight (Oz): 51.14 oz
