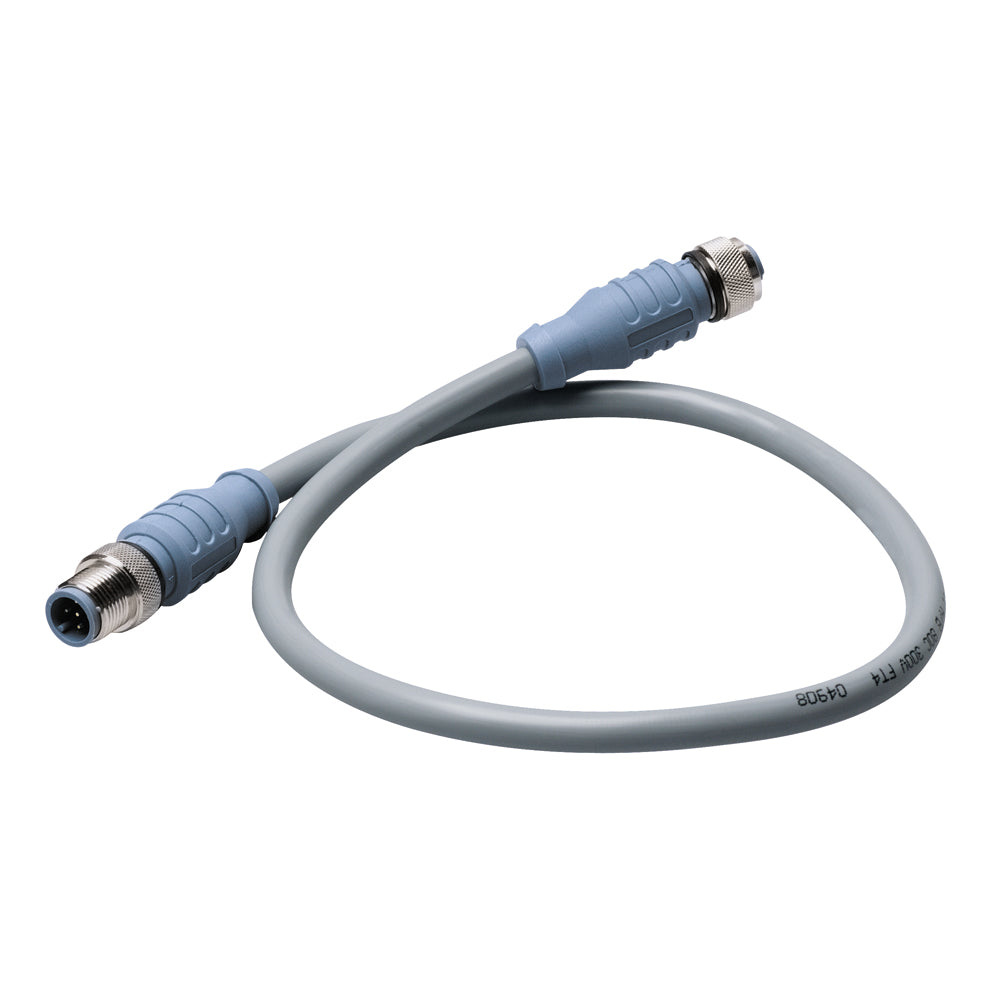

Maretron Micro Double-Ended Cordset - 4 Meter
Maretron Micro Double-Ended Cordset - 4 Meter
Maretron

Maretron Micro Double-Ended Cordset - 4 Meter

SKU: 33358
(0)
In stock
Usually ships within 24 hours
$45.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

Love it? Share it with your crew!

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

  • Contact Mat/Plating: Brass/Gold

  • Coupling Nut Mat/Plating: Brass/Nickel

  • Connector Outside Diameter: 0.59Electrical

  • Current Rating: 4.0 Amps

  • Voltage Rating: 250 V
    Cable

  • Outer Jacket Mat/Color: PVC/Gray

  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P

  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

  • NMEA: NMEA 2000 Approved
    • Truck Freight: No
    Oversized: No
    • Type Marine Navigation & Instruments
    • SKU 33358
    • Barcode 786788837105
