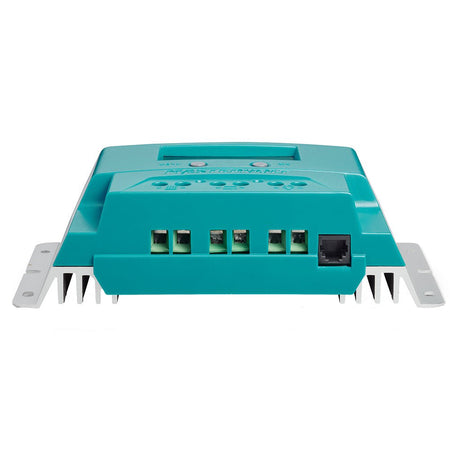

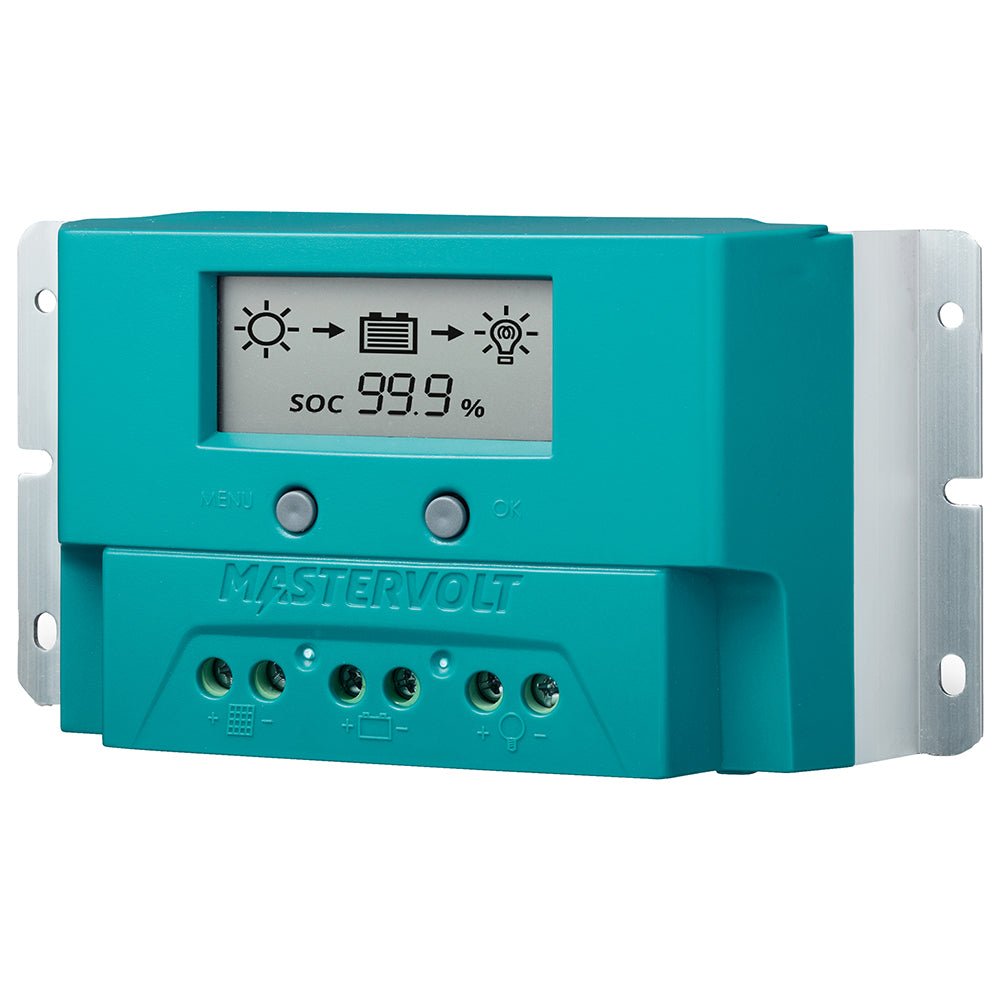

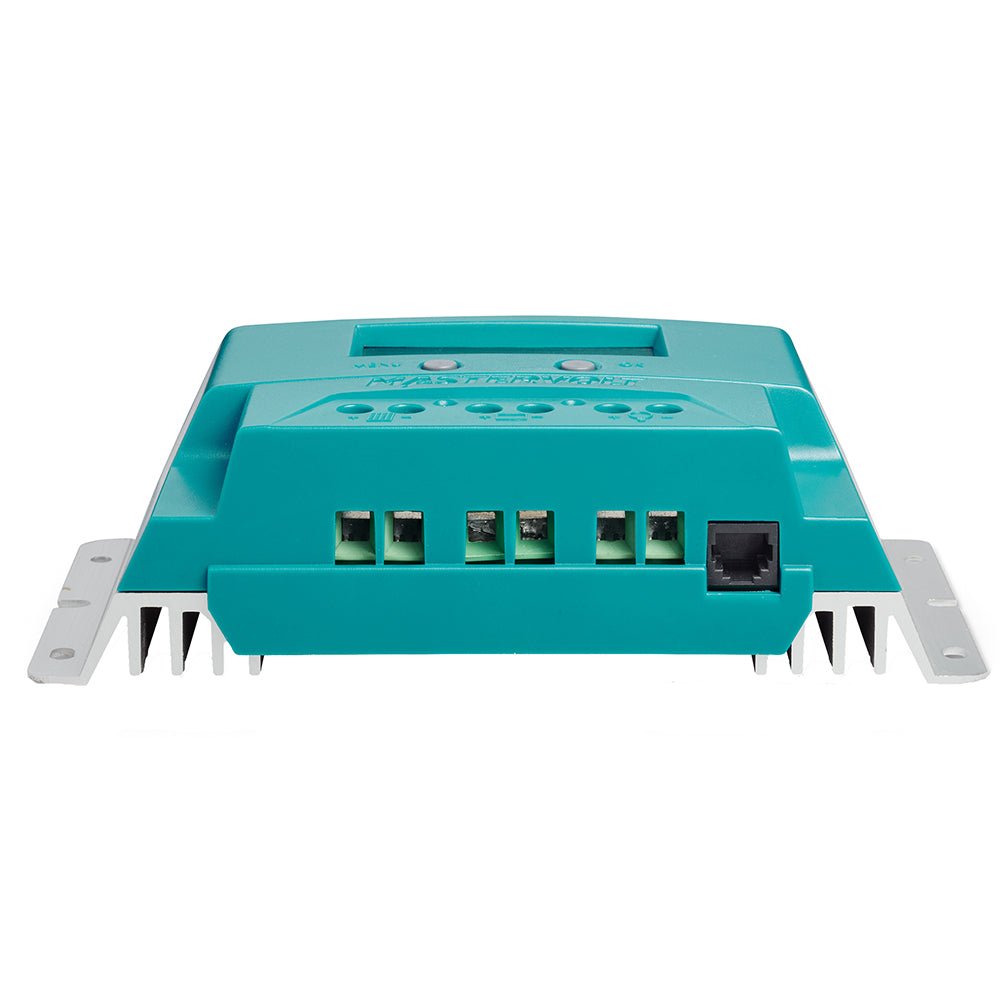

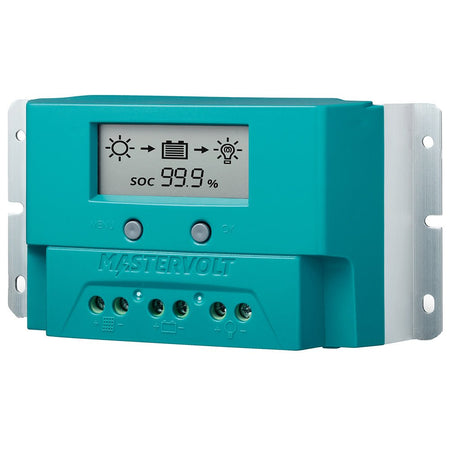

SCM40 PWM

Features:

• High efficiency: your batteries are charged quickly


• Capacity for solar panel configurations of up to 3600 Wp


• Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries


• Fast and flexible setting of battery type


• Battery temperature sensor for long lifespan


• Automatic 12V and 24V detection


• Switchable output


• Noiseless operation


• LCD display


• Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity

Specifications:

• System Voltage Battery: 12/24V auto select


• Battery Types: AGM, gel, wet, Lithium Ion


• Battery Temp Sensor: Yes


• Max Charge Current at 25 degrees C/77 degrees F: 40A


• Switchable Output (Max Current): 40A


• Energy Comsumption (night): 4 mA


• Communication: PC-Link (optional)


• Cooling: passive


• Display/Read-Out: LCD display with battery state of charge, status output, battery setting
