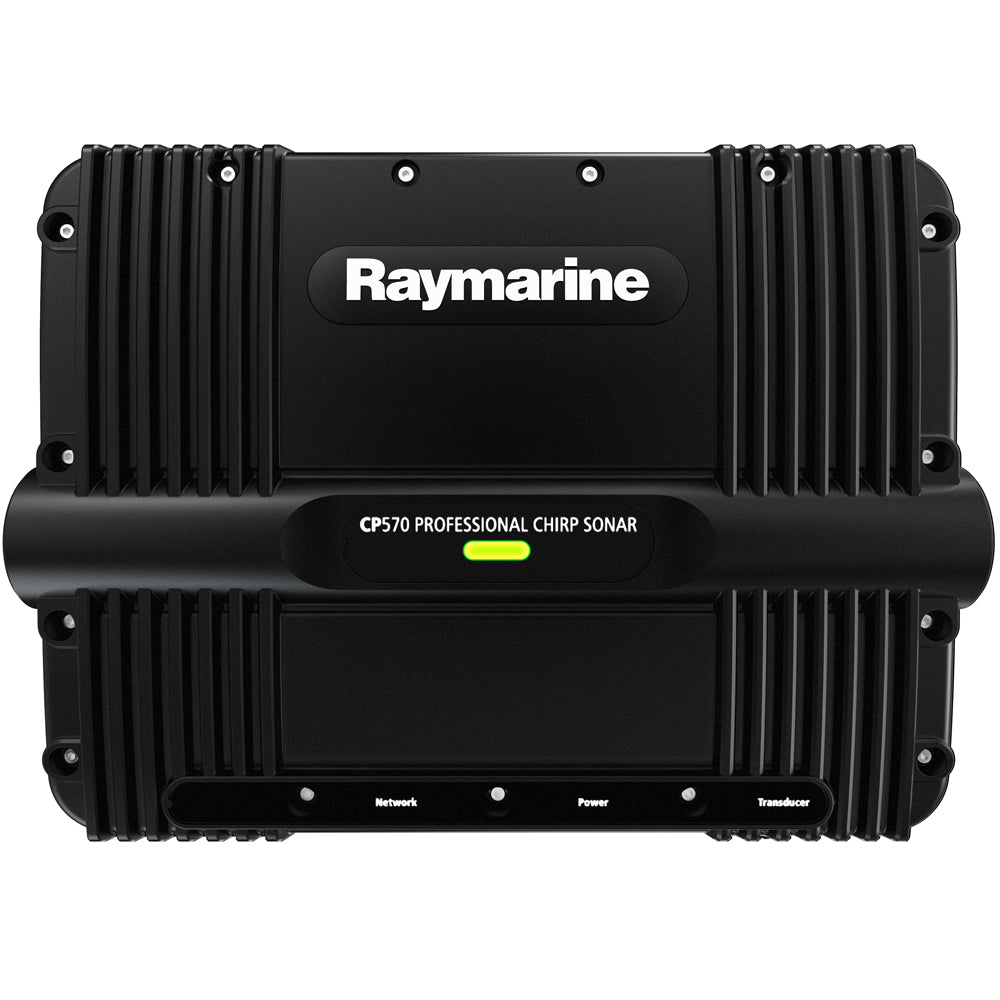

CP570 Professional CHIRP Sonar Module
High-Performance Sonar Module For Professional magnification mode reveals extra target detail without any loss of resolution.
The CP570's ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.

Easy To Customise
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.

The CP570 automatically recognizes connected transducers and adjust sonar parameters for optimized performance
View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.

Features

•
  TruZoomTruZoom provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar




• Automatic transducer identification with Airmar Xducer ID




• Airmar Wide Beam transducer compatible




•
  Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure




•
  Compatibility:aSeries | cSeries | eSeries | gS Series




•
  Nominal Supply Voltage:12/24 V DC




•
  Power Consumption: 30.6W (Maximum)




•
  Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection

•
  Sonar Type: Wide Spectrum CHIRP




•
  Power:Max 4kW output using 2 independent CHIRP channels




•
  Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz




•
  Depth Range:10,000' (3,000M)
