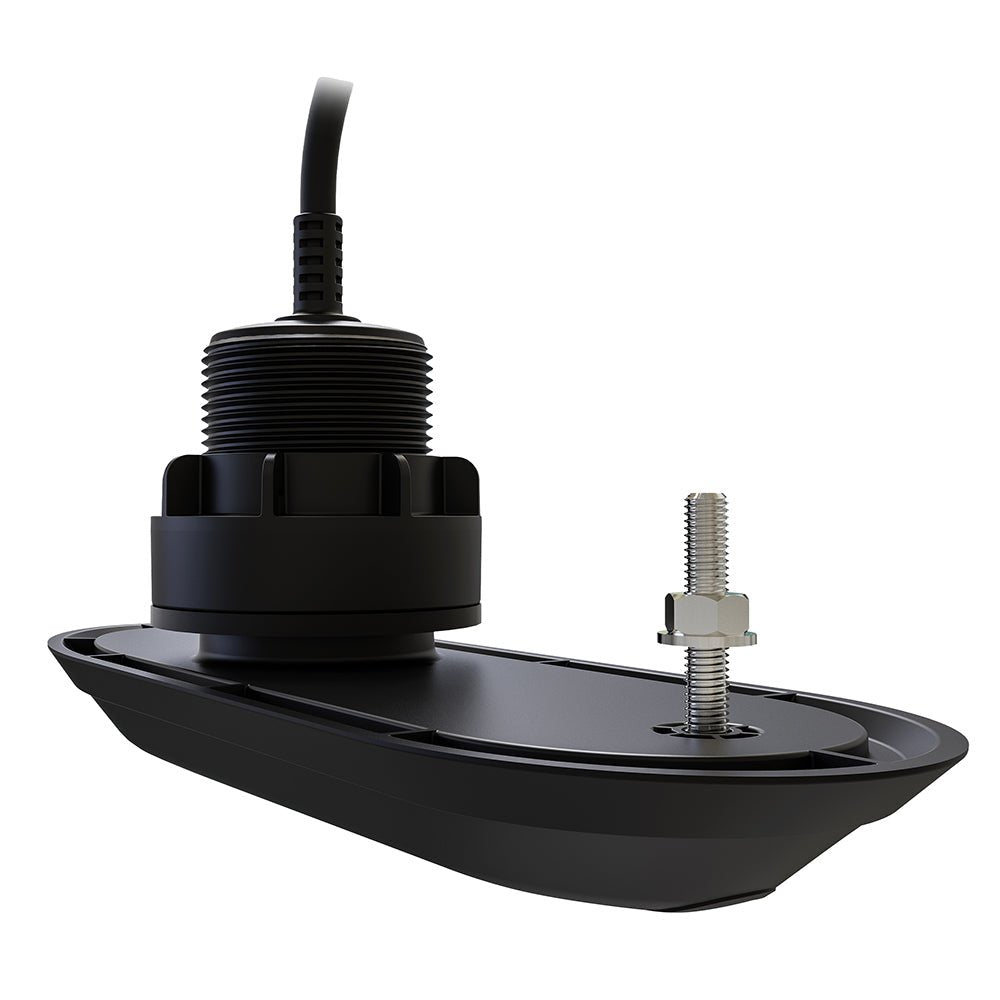

RV-300 Plastic All-In-One 0 Thru-Hull Transducer

Raymarines RV-300 Plastic All-In-One Thru-Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. For a deadrise of 0-5 degrees.

The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. Youll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3D transducer elements are arranged with a 0 offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze.

Whats in the Box

• RV-300 Plastic All-In-One Through Hull Transducer with 8M(26')


• Anti-rotation bolt kit


• Installation instructions
