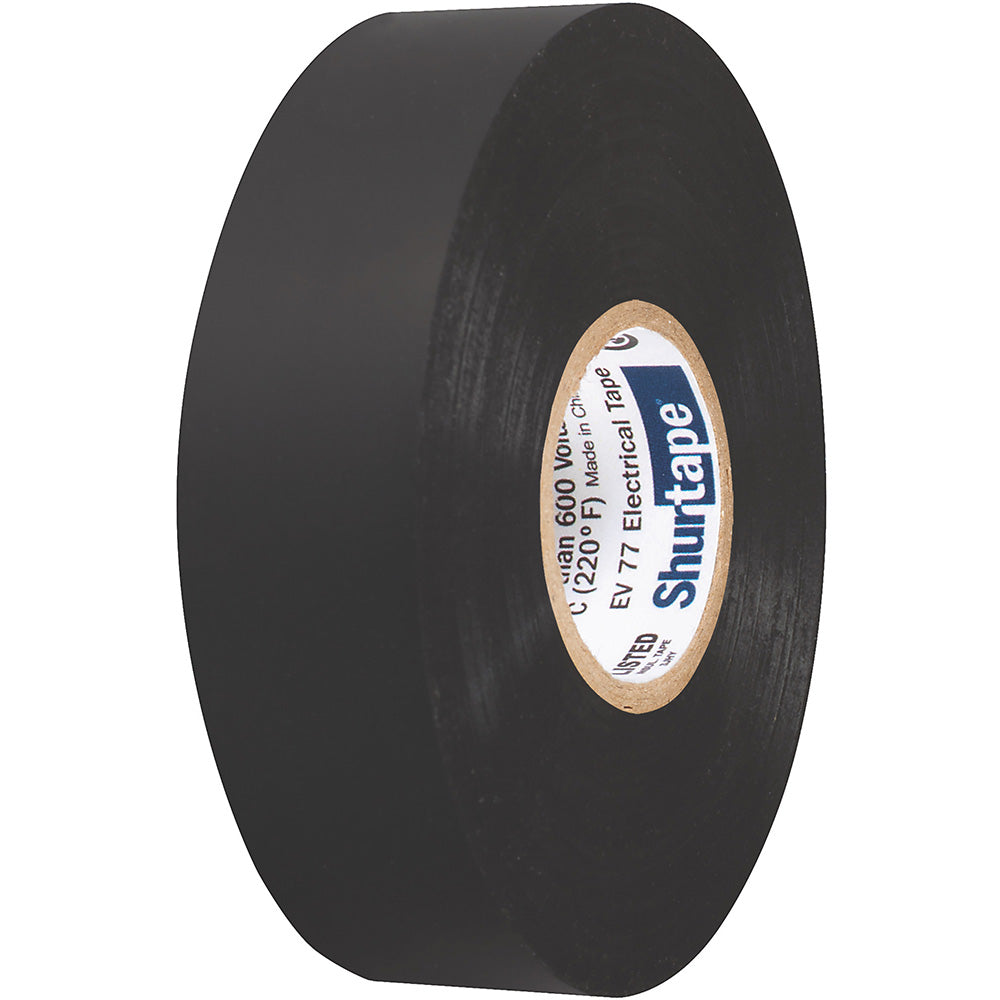

EV 077B Professional Grade Black Electrical Tape for Insulating Splicing - 3/4 x 66 - 10-Pack

Professional grade, 7.0 mil, all-weather vinyl insulating tape used for electrical and mechanical protection in temperatures ranging from 0 F to 220 F. UL Listed and CSA Approved, EV 77B black electrical tape is lead-free, flame retardant, and is engineered with a polymeric backing construction, as well as a specialized method of bonding the adhesive to the vinyl backing, which allows the tape to be highly conformable and deliver a moisture-tight seal, even in extreme temperatures.

Features:

• 7.0 mil, professional-grade electrical tape


• High tensile strength


• High performance in a wide temperature range


• Resistant to UV, oils, acids, alkalies, corrosive chemicals, and water


• Flame retardant

Technical Specifications:

• Tape Width - 3/4


• Roll Length - 66


• Adhesive - Non-corrosive, rubber-based


• Adhesion to Stainless Steel - 28 oz/in width


• Dielectric Breakdown - 10,000V


• Dielectric Strength - 1,429V/mil


• Elongation - 300%


• Service Temperature Range - 0F-220F


• Tensile - 20 lbs/in width


• Thickness - 7.0 mils


• Color - Black
