SP-120 Color System with RFB Remote Mechanical Drive 1983-93 Mercury I/O, Volvo Diesel

Features:

• The SI-TEX SP-120C is an Autopilot designed for hydraulic steering, mechanical steering, solenoid control


• Does not require a separate junction box, everything simply connects to the rear of the control head


• This Autopilot is ideal for small vessels under 38'


• The Autopilot can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels


• SP-120C displays actual Compass heading Selected Heading, along with Rudder Angle Displays simultaneously


• Compact 4.1 x 4.1 Splash proof Control head with large easy to read Color LCD LCD Display


• Extremely easy to select your desired headings, operate, and setup, with new user friendly software


• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering response


• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to


• enhance performance


• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes


• NMEA-0183 Output of Compass heading at 10kHz for interface to MFDs with Chart/Radar Overlay


• Autopilot Steering Modes:


• Manual (Power Steer)


• Auto (Pilot maintains selected Magnetic course)


• GPS (Steers to Waypoint or Routes when Interfaced with GPS)


• Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)


• Protected by 2 Year SI-TEX Warranty

Specifications:

• Waterproof: IPX6


• Control Head Dimensions: 110 mm L x 110 mm W


• Voltage supply VOLTAGE: 12/24 Volts DC


• LCD Color LCD Display


• Constant Compass Heading Indicator and Rudder Angle Indicator


• Current consumption: 0.5 amps at 12VDC in standby mode


• Maximum Drive Output Current 15 Amps


• Operating temperature: -10C to +55C


• Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output


• Course Detection <1 Degree

Package Includes:

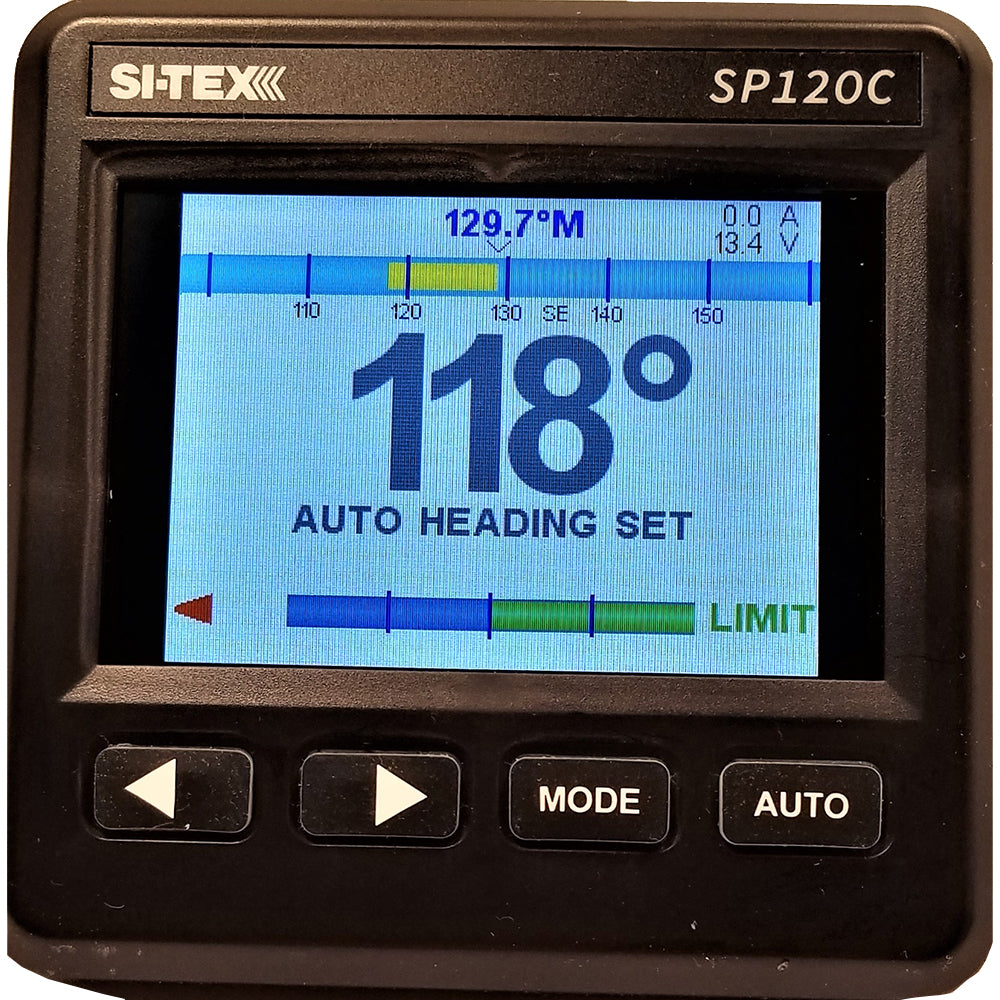

• SI-TEX SP-120C Color LCD Autopilot Control Head


• NMEA Interface Cables


• 9 Axis Electronic Rate Gyro Compass


• Control Head Sun cover


• Product manual


• Mounting Screws
