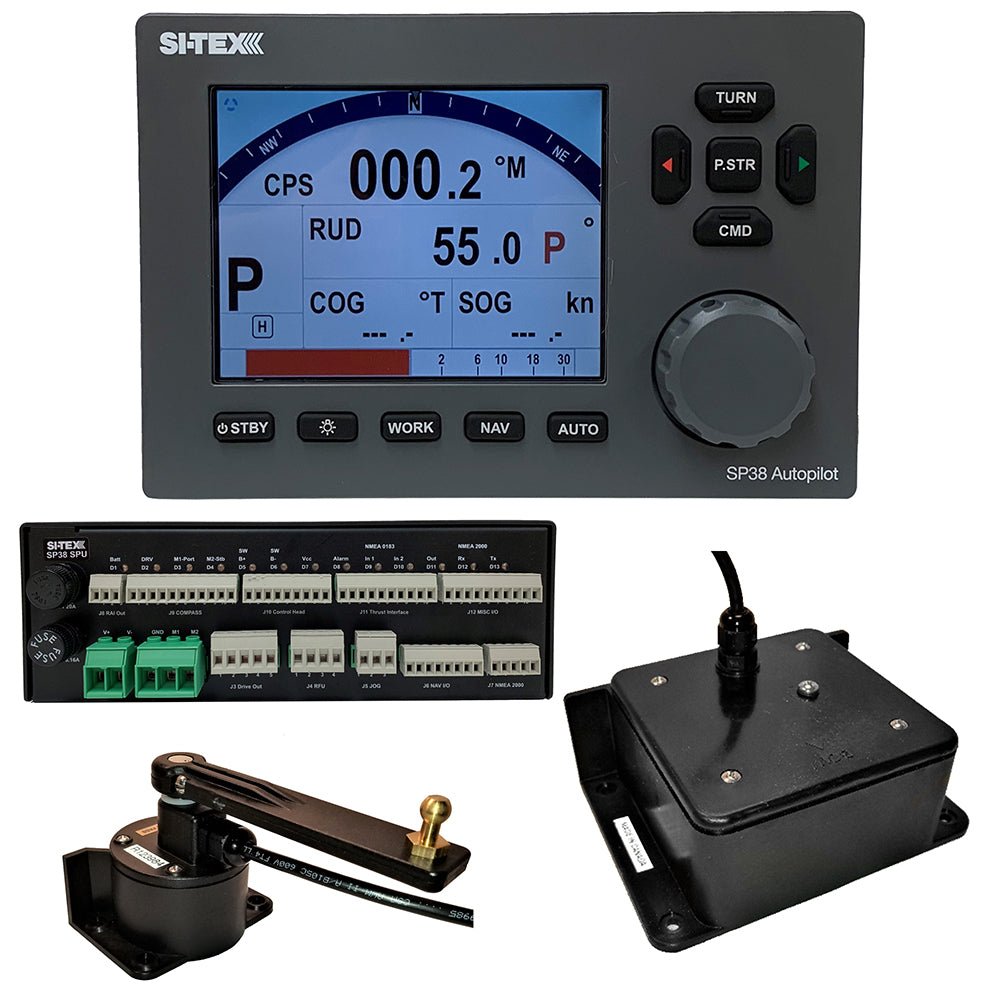

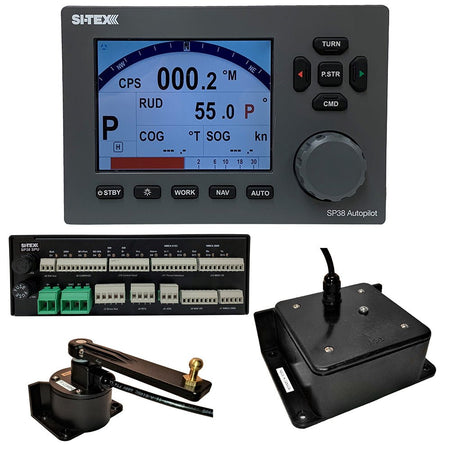

SP38-2 Autopilot Core Pack Including Flux Gate Compass Rotary Feedback, No Pump

Features:

• IST Intelligent Steering Technology provides superior vessel steering capability


• ADAPTIVE steering for sea conditions and varying vessel speeds


• AUTO-SETUP allows auto-drive detection, rudder response time, compass detection and calibration


• NMEA 2000, ETHERNET, and NMEA 0183 interface


• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts


• WORK Mode suitable for Fishing Boats, Towboats and Workboats


• PRC- Proportional Rate Control feature provides gentle smooth steering response


• Multi-Station capability with security station lock


• SUNLIGHT viewable Color 5.7 LCD display


• NAV Mode provide adaptive precise track steering


• ALC Automatic Leeway Compensation for Drift, Tide Wind


• Fully compatible with onboard instruments and steering systems


• Optional Z-Drive interface allows 360 Azimuth drive interface


• Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping


• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.


• Standard with Flush Mount kit, Optional Swivel mount bracket


• IP67 Waterproof Control Head, TS4, NF4 and WS4


• RoHS CE compliance for EMI and RFI immunity

Additional Features:

• 9 level backlit LCD display


• LCD Display switches to Red Night Palette to protect Operators night vision


• Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications


• Multiple steering parameters for Fast cruise, Slow cruise and Work modes


• Simple to use course knob with mechanical detent


• Multi-station capability with security station lock


• Automatic trim


• Adjustable yaw, turn rate and rudder settings


• PORT and STBD dodge buttons for collision avoidance


• Output for optional analog rudder angle indicator, up to 4 stations


• Fully compatible with onboard NMEA N2K instruments and most steering systems

Specifications:

• Operating Voltage: 10 to 30 VDC


• Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps


• Network: NMEA 2000 Ethernet


• Navigational Interface: NMEA 0183 input/Output


• NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)


• Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass


• Course Resolution: 1


• Course Detection: 0.5
