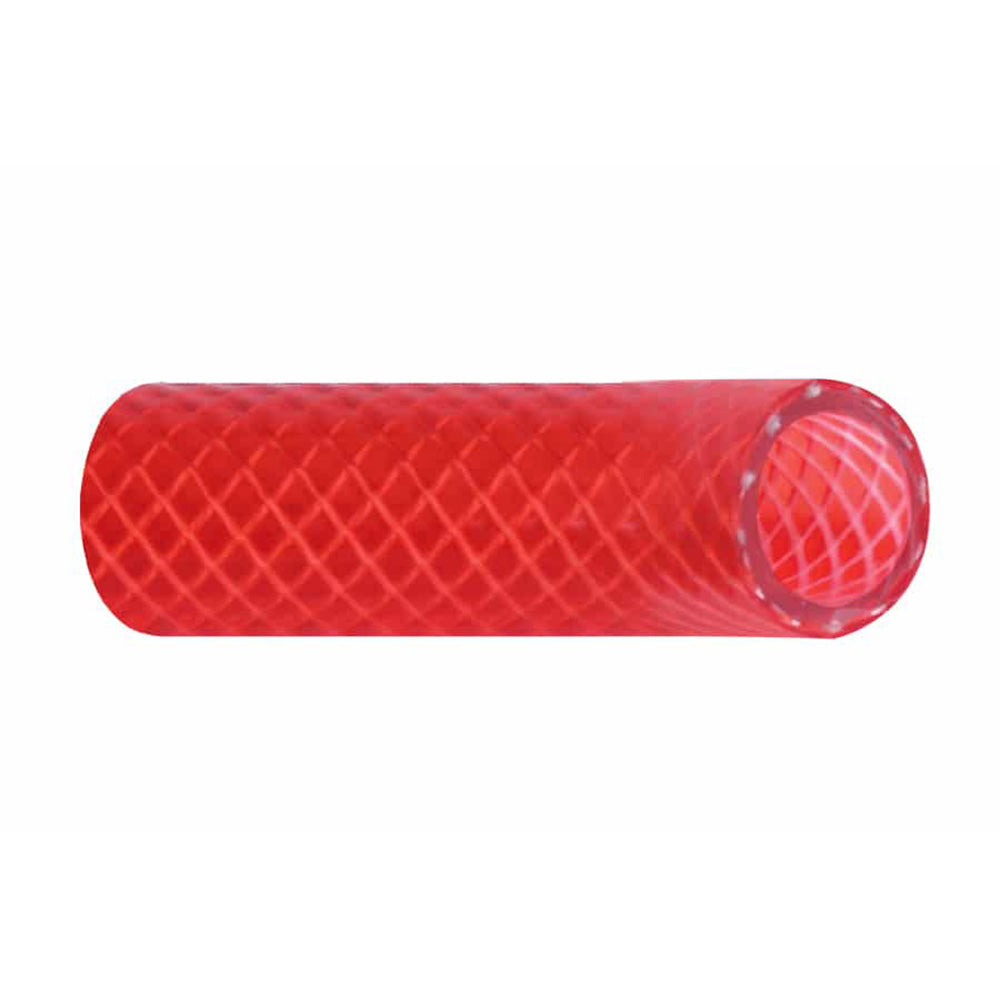

5/8" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• Sold by the foot


• The Red cover allows for easy identification of "Hot Water" lines on your boat


• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility


• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube


• Color: Red Transparent


• Reinforcement: Polyester


• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9


• Outer Diameter: (inch) .866 / (mm) 22.5


• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16


• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure
