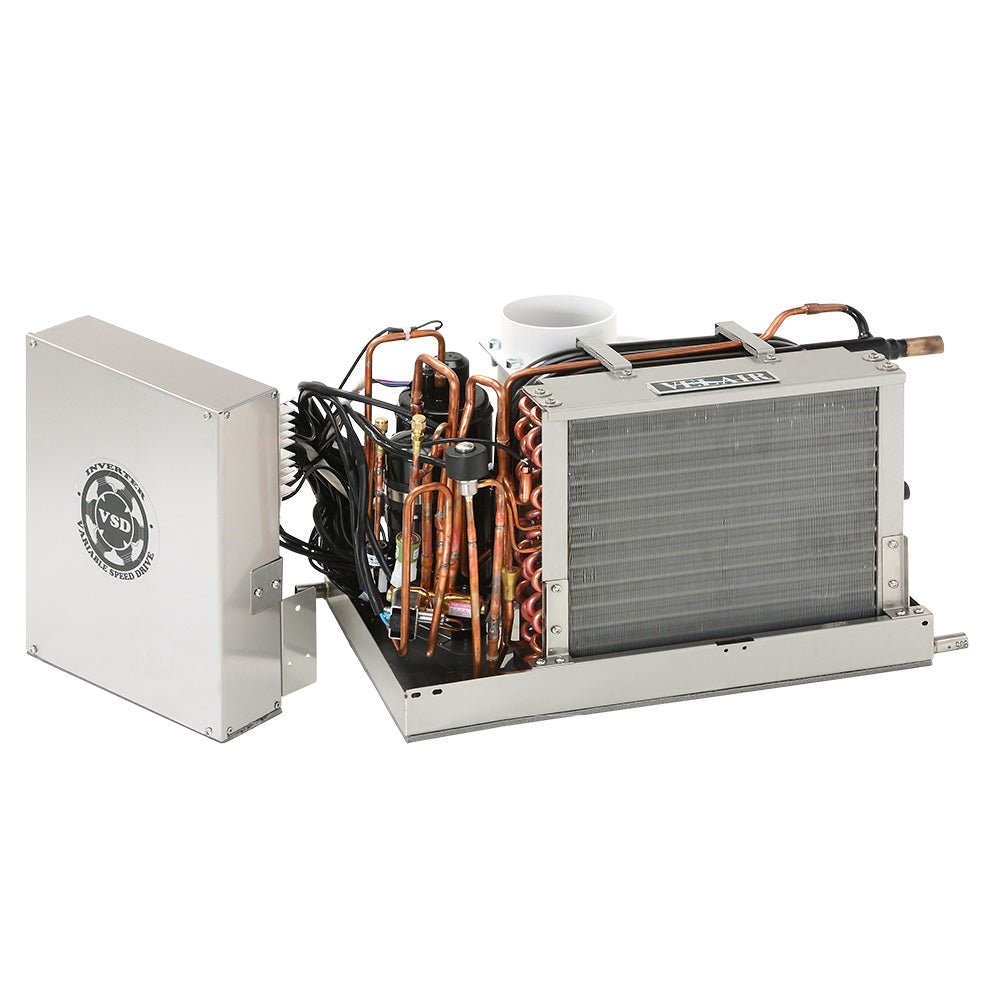

21K BTU VSD Smart 115V Marine Air Conditioner Unit Brushless Variable Speed Soft Start Reverse-Cycle Heat

Self-contained VSD air conditioners provide the best existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivers cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve. Constant Flow technology fan (i10 and i16 only) Twin Rotary compressors 21.000 BTU/h max output.

The compressor continuously changes its running speed depending on the ambient and set temperatures. It operates at maximum power to cool the cabins rapidly, but once it reaches the set temperature, it reduces the power and electric consumption. In this way, it maintains the optimal comfort level with the minimum consumption. The inverter works between 20 and 100 Hz.

Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.

Velair Part Number 22571WU

Features:

• VSD (Variable Speed Drive) eliminates start-up spikes


• Highest energy efficiency


• Minimal fan noise and vibration


• Reverse-cycle for heat pump function


• Constant temperature output maximizes comfort


• Cabin control display offers ease of use


• Smart Control iOS and Android App available to control all AC functions

Technical Specifications:

• Input voltage - 120VAC 50/60Hz


• Refrigerant type - R410A


• Heat Pump - Yes


• Cooling Capacity - 21,000 BTU


• Maximum Air Flow - 800 m3/h


• Air Duct Diameter - 6


• Sea Water Flow Rate - 5.3 gpm/20 l/min


• Dimensions (H x W x D) - 28.7 x 17.5 x 12.7 (73 x 44.5 x 32.3 cm)


• Weight - 88.2 lbs (40 kg)

In the Box:

• Self-contained AC unit


• Digital control and 26.25 (8 M) cable


• Instruction manual
