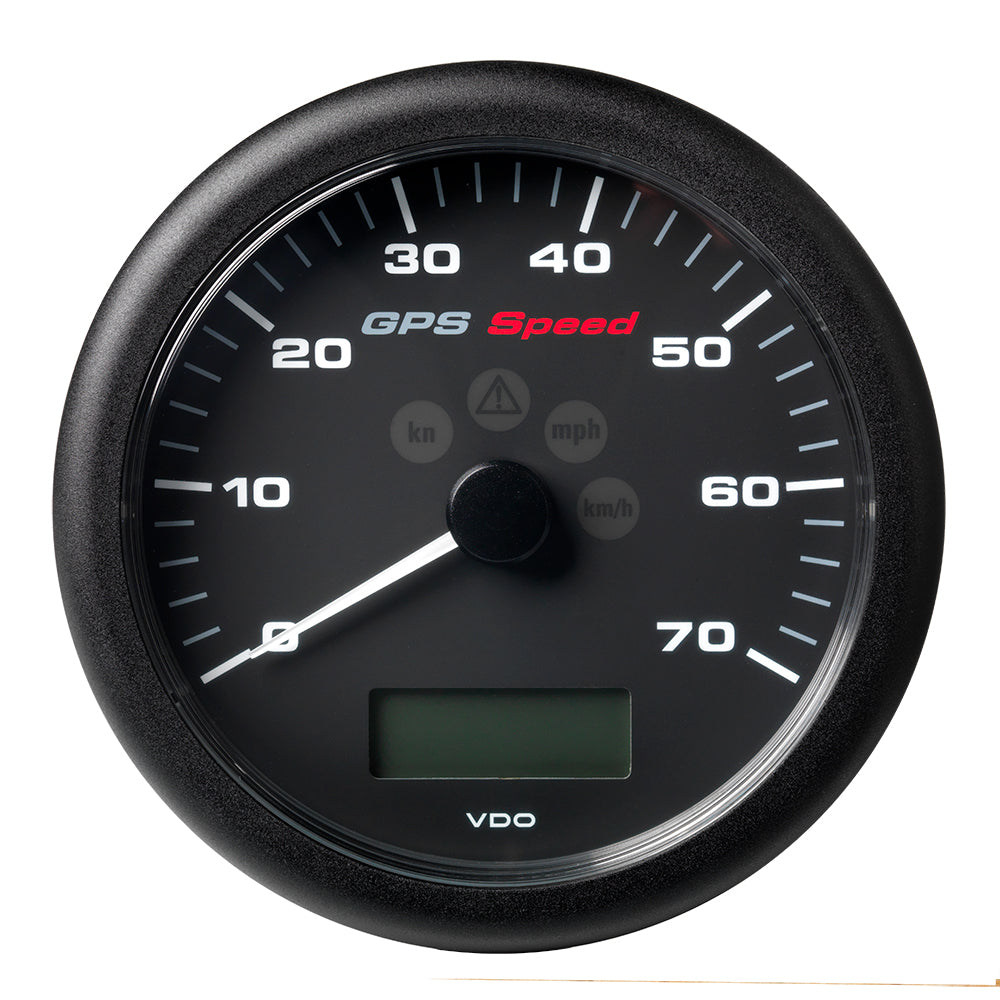

4-1/4" (110MM) ViewLine GPS Speedometer 0-70 KNOTS/KMH/MPH - 8 to 16V Black Dial Bezel

Based on the ViewLine housing concept, ViewLine gauges provides an ideal IP protection class, a modern appearance and high quality standards.

It provides many parameters in NMEA 2000 and there are several customization opportunities to meet specific customer demands.

Displayed Data:

• GPS signal quality, Course over ground (COG)


• UTC time (optional with external push button)


• Trip distance (optional with external push button),


• Trip time (optional with external push button)

Specifications:

• Embedded GPS antenna


• Robust and flexible design for versatile applications


• CAN capability (NMEA 2000)


• Pointer for analog indication of Speed over Ground (SOG)


• Programmable speed alarm


• Fixed segment LCD


• Flush mount possibility


• Front side protection rating IP67


• Compass for Course over Ground (COG)


• Clock


• 110 mm installation diameter


• 126 mm outer diameter


• 50 mm installation depth


• Reverse polarity protection


• 1x Telltale generic alarm


• 1x Telltale alarm (knots / kmh / mph)
