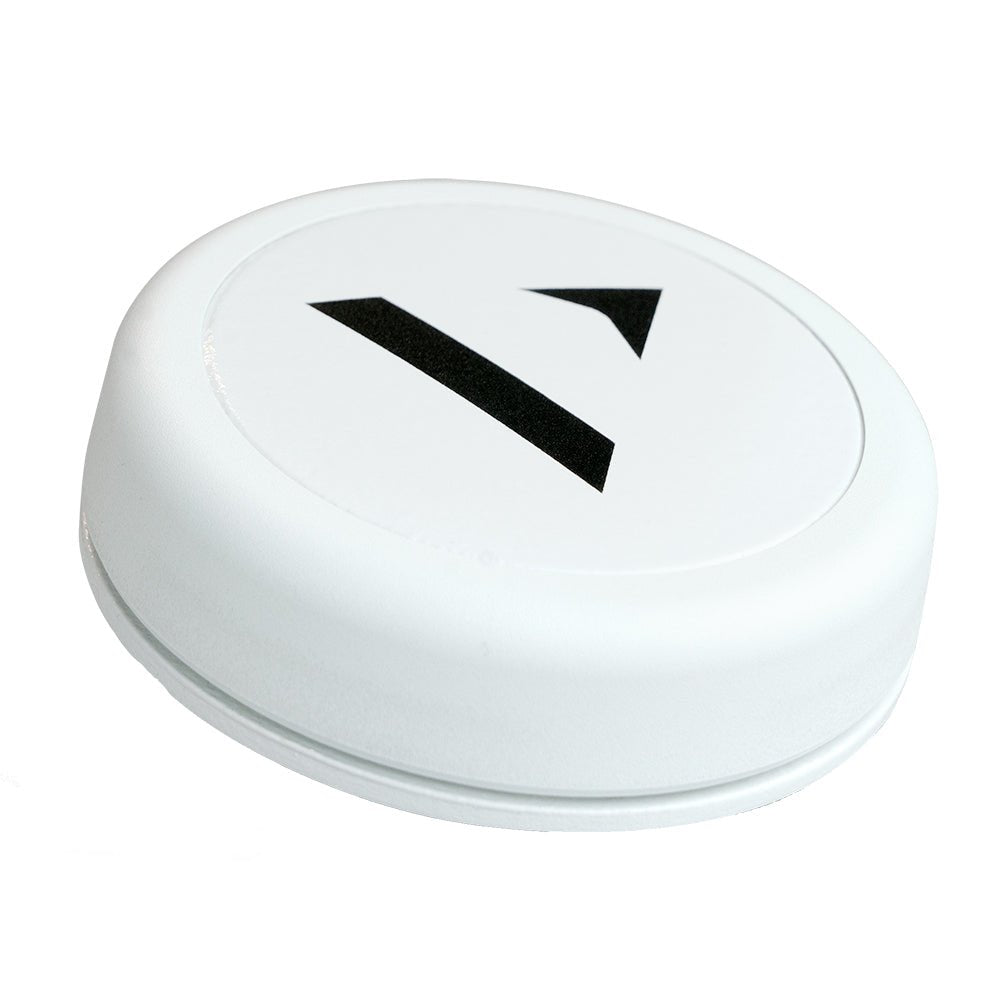

GO GPS Receiver

All your boats data close to your finger tips. Veratron GO is NMEA 2000 certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions. One of the smallest GPS receivers available.

The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.

Features:

• 72 channel receiver


• Fast cold-start position fix


• Compatible with OceanLink 52MM Bezels


• 10Hz update rate


• Up to 3 concurrent GNSS systems (GPS, GLONASS and GALILEO)


• SBAS WAAS/EGNOS/MSAS/GAGAN supported


• NMEA 2000 standard PGNs transmitted for position, time, speed and heading


• Front-end SAW band-pass filter for enhanced immunity against electrical noise


• Interchangeable bezel option

TechnicalSpecifications:

• Update Rate: Up to 10Hz using concurrent GNSS, up to 18Hz using single GNSS


• Position Fix Time: 26 second cold-start, 1 second hot start


• Tracking Sensitivity: -165dBm


• Position Accuracy: 2.5m


• Velocity Accuracy: 0.05m/s


• Heading Accuracy: 0.3


• Water Resistance: IPX7


• Dimensions (D x H): 60.7 mm x 18.9 mm


• Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required


• Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup

In the Box:

• GO GPS Receiver


• Instructions Manual

*Sold as an Individual
