Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"
Wichard Marine

Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"

SKU: 93113
(0)
Only 4 left
Low inventory - Hurry up!
$68.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

Love it? Share it with your crew!

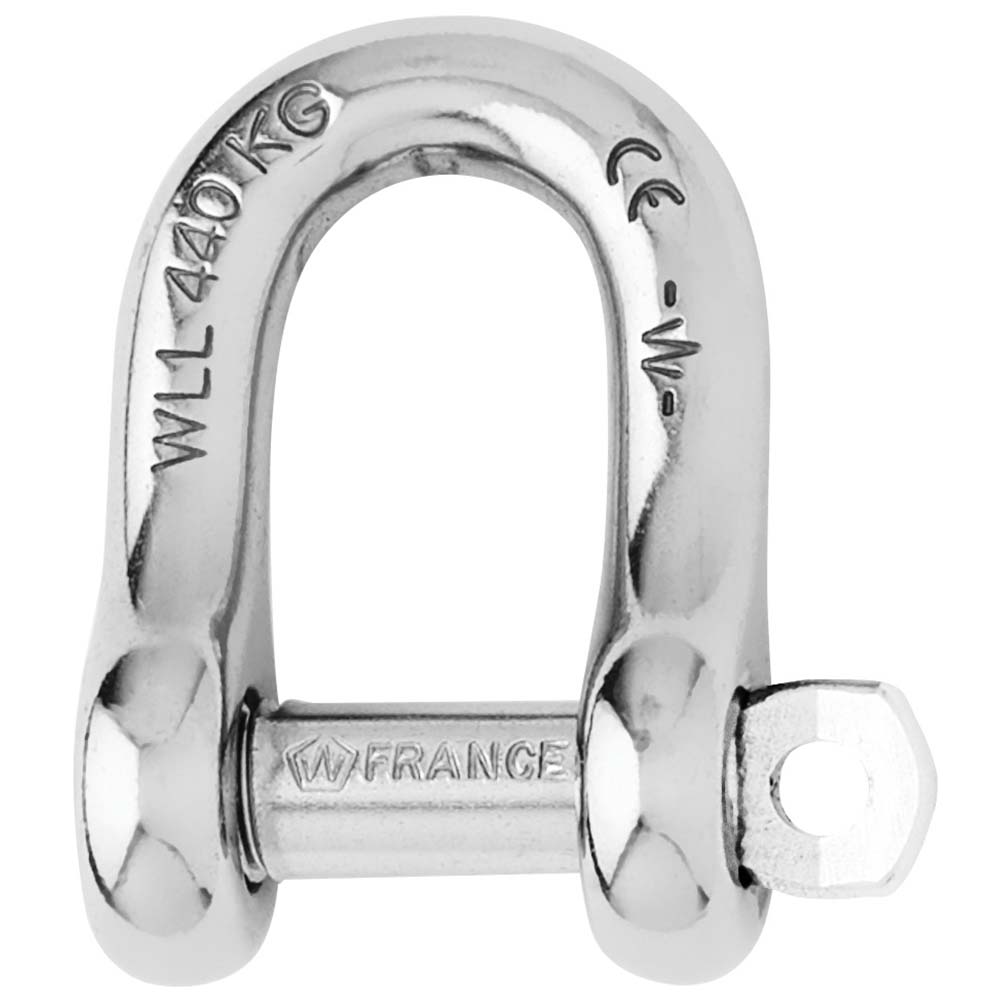

Captive Pin D Shackle - Diameter 10mm - 13/32"

Features:


  • Captive pin "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

Applications:


  • Standard applications of shackle

  • Attachment applications: blocks, head...

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 3350

  • WLL (lb) 2290

  • Breaking load (lb) 11460

  • Weight (lb) 0.251

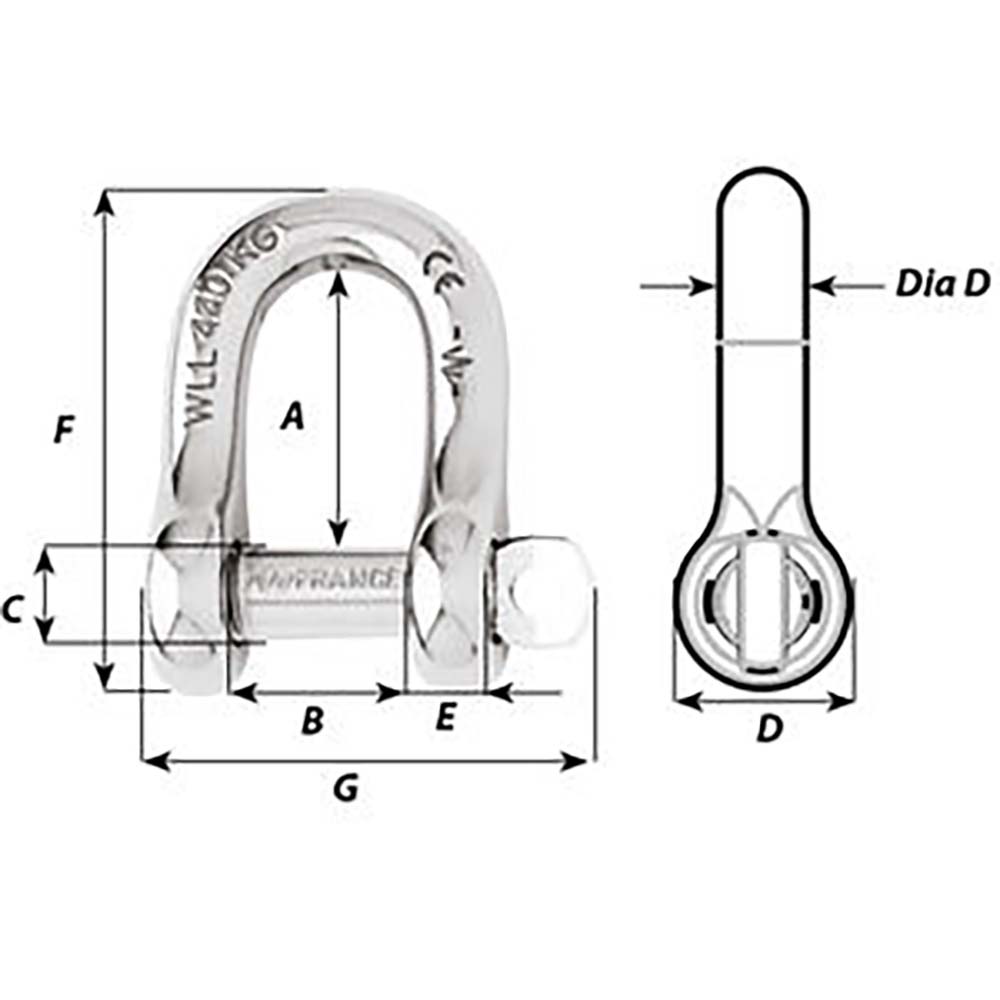

Dimensions (see 2nd image):


  • A (inch) 1-19/64"

  • B (inch) 25/32"

  • C (inch) 7/16"

  • D (inch) 53/64"

  • D diameter (inch) 25/64"

  • E (inch) 23/64"

  • F (inch) 2-9/32"

  • G (inch) 2-3/32"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93113
  • Barcode 768536014051
