Home » Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Wichard Marine

Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"

SKU: 93115
(0)
Only 5 left
Low inventory - Hurry up!
$23.99 USD

🎁 Spend $99.99 on Get Tight Gear → Get a FREE Offshore Bucket!

Applies only to Get Tight Gear products. Limit 1 per order. Auto-applied at checkout. ⏳ Limited Time. 🔥 Limited Quantities. Don’t Miss Out!

Shop Get Tight Gear See the Bucket

Love it? Share it with your crew!

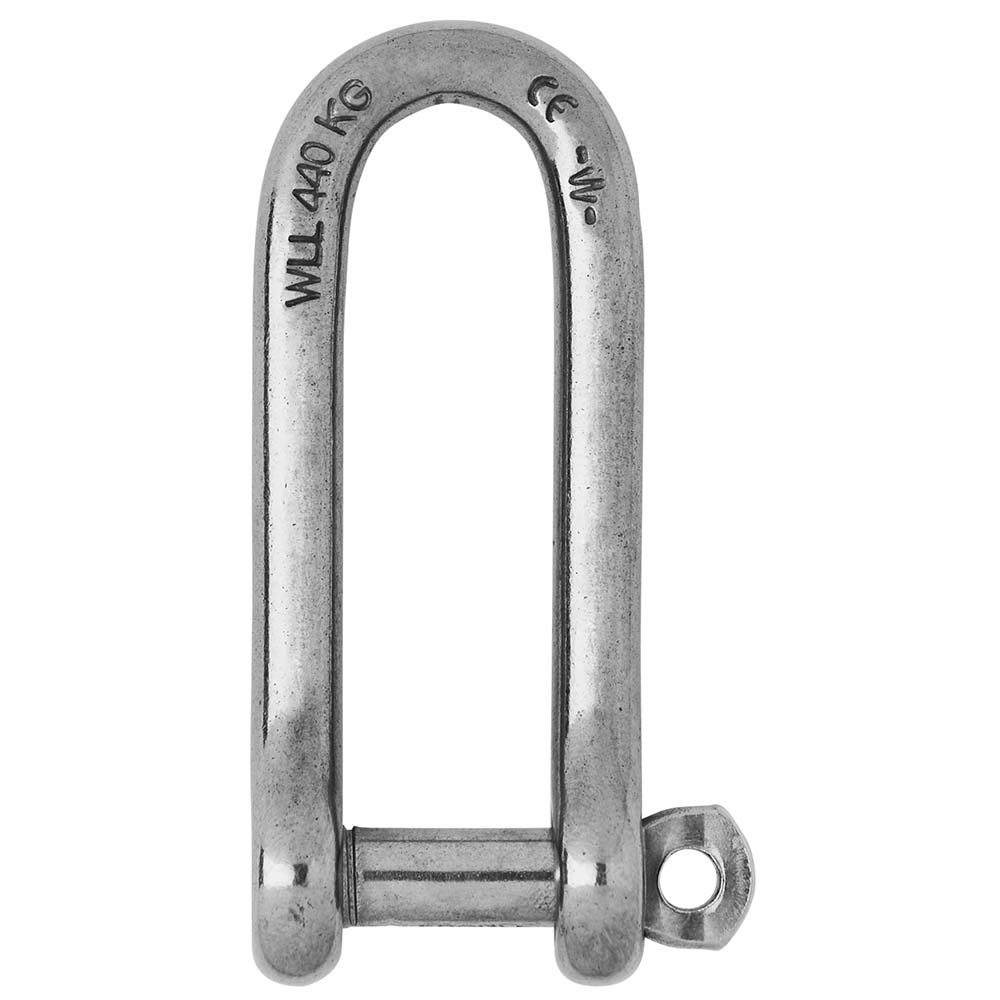

Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Features:


  • Captive pin long "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loosening due to vibrations

  • Outstanding working and breaking loads

Applications:


  • Standard applications of shackle requiring more length

  • Attachment applications: blocks, head...

Specifications:


  • Materials 316 stainless steel grade

  • Working load (lb) 700

  • WLL (lb) 440

  • Breaking load (lb) 2200

  • Weight (lb) 0.026

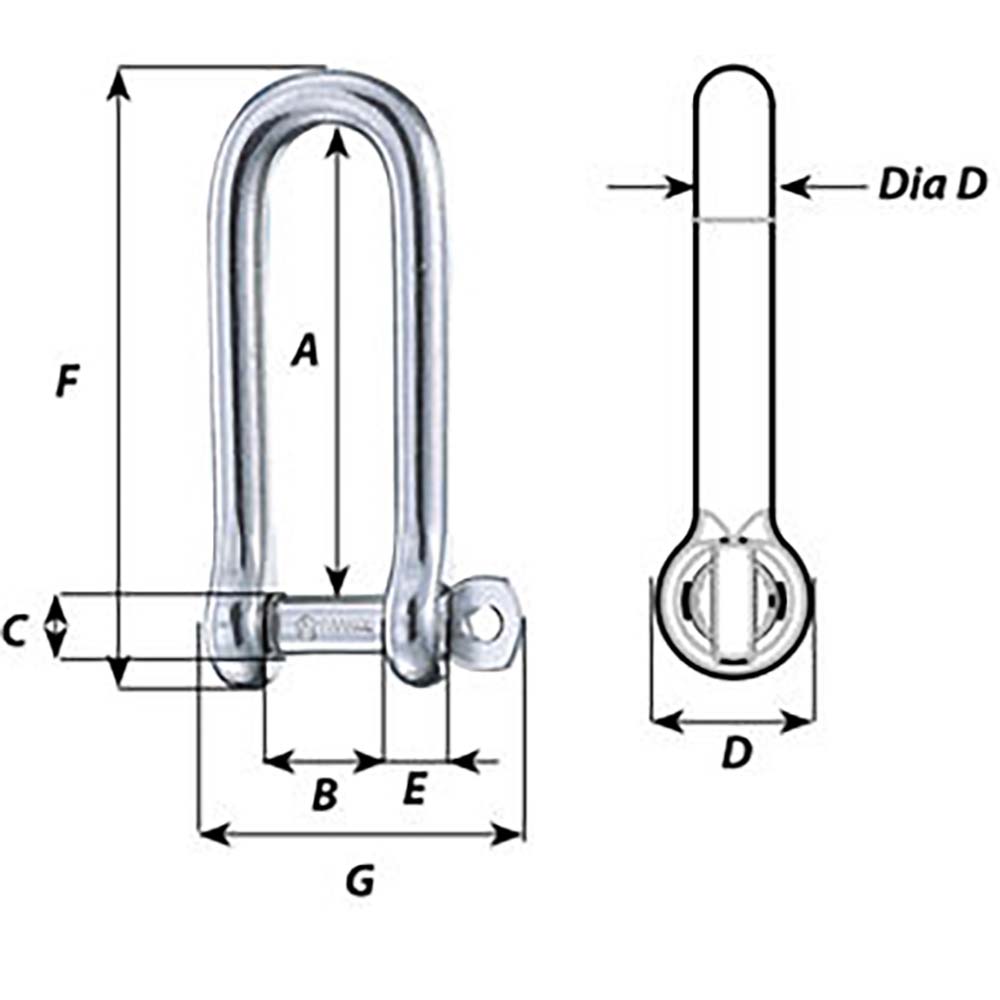

Dimensions (see 2nd image):


  • A (inch) 1-7/32"

  • B (inch) 5/16"

  • C (inch) 13/64"

  • D (inch) 23/64"

  • D diameter (inch) 5/32"

  • E (inch) 5/32"

  • F (inch) 1-39/64"

  • G (inch) 55/64"
Truck Freight: No
Oversized: No
  • Type Sailing
  • SKU 93115
  • Barcode 768536014112
